Billedgalleri

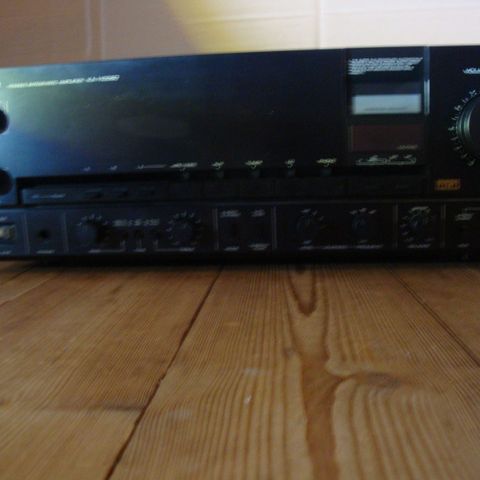

Kenwood KA-2200
Varebeskrivelse
Stand: Brugt - men i god stand
Mærke: Kenwood
Rimelig pæn og velholdt, har dog lidt brugspor på toppen.
Virker og spiller ganske fint. Lækker forstærker.
Den har fået renset højtalere relæer, samt er blevet renset indvendig, smurt potmetrene ligeledes skiftet en pæer til LED i fronten i den tid jeg har haft den. Sælges da den er lidt overskud og ikke bliver brugt så tid.
Sendes ikke og skal afhentes hos mig i Roskilde.
Data
General
Manufacturer: Kenwood
Model: KA-2200
Type: Integrated amplifier
Years of manufacture: 1982 - 1984
Made in: Japan
Color: Silver
Remote control: no
Power consumption: max. 900 W
Dimensions: 440 x 158 x 383 mm (WxHxD)
Weight: 15 kg
Original price approx.: 1'600 DM
Connections
Number of inputs: 7 (6 rear, 1 front)
Source: 150mV/47kOhm
Phono 1/2 switchable MM: 2,5 mV / 33,47; 100 kOhm; MC: 0,1 mV / 100 Ohm
Tape 1/2
Tuner
AUX / D.A.D. rear and front switchable
Main-In
Number of outputs: 2
Tape 1/2 ( mV/ kOhm)
Pre-Out
Headphones
Speaker A/B (A with Sigma-Drive)
Technical Data
Continuous power (at distortion factor)
8 Ohm: 2x 150 W at 0.003 4 Ohm: 2x 160 W
Total harmonic distortion: 0.003% at modulation/8 Ohm
Attenuation factor: 1.000 at 100 Hz (Sigma Drive B)
Frequency response: DC - 200 kHz (-3dB)
Signal-to-noise ratio:
High level: 110 dB
Phono (MM/MC): 76/92 dB
Stereo channel separation:
Tone control: Tone defeat switch
Bass: ± 10 dB Treble: ± 10 dB
Loudness: 3/6/9 dB at 30/60/90 Hz (separately adjustable)
High Filter: no
Low Filter (Subsonic): 6 dB / octave below 18Hz
Mute: Fader button. Press to fade out, press again to fade in.
Mono switch
Direct/Line-Straight: no
Speaker Off / A / B / A+B switchable
Special Features
Fading button (off and on thread), Front Aux-In.
Class G Amplifier. Switches between low and high operating voltage depending on output power. Therefore special double transistors: DAT0612N and DAT0612P, as well as DAT1018N and DAT1018P. One per channel, so eight in total.
