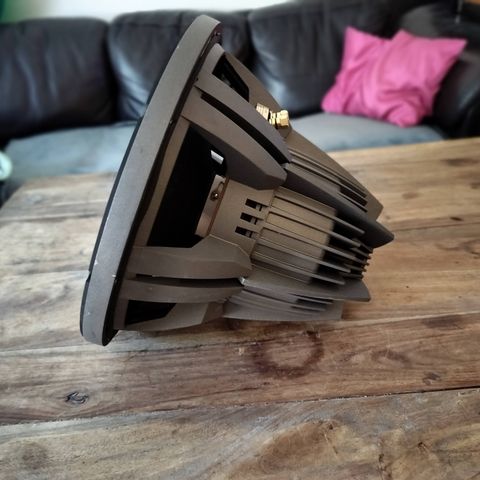

Jbl Gti 12" Mk2
Varebeskrivelse
Stand: Brugt - men i god stand
Hejsa jeg har en Jbl Gti jeg godt vil sælge eller bytte det er virkelig en god enhed for pengene
Size 12
Series Gti
Audio Specifications
Peak Power 4000W
Power Handling (Peak) 4000W
Nominal Impedance 3 or 12 ohms
Frequency Response 18Hz–1kHz ±3dB
Power Handling (RMS) 700W
Sensitivity (2.83V@1m) 91dB
Dimensions
Mounting Depth (in) 10-1/4
Mounting Cutout Diameter (mm)280
Mounting Depth (mm) 260
External Diameter (mm) 312
External Diameter (in) 12-1/4
Mounting Cutout Diameter (in) 11
Mounting Depth
10-1/4 inch (260mm) Cutout Dimensions
11 inch (280mm) Woofer Specifications
Driver Radiating Area (Sd – in2/cm2) 74.3/480
Magnetic Gap Height (Hag – in/mm) 1.0/25.4
Voice Inductance (Levc – mH) 0.75 (parallel VC connection)
Voice Coil Height (Hvc – in/mm) 2.6/66.04
Suspension Compliance (Cms – ?m/N) 135.28
Voice Coil vDual 6-ohm Differential Drive®, 3" (76mm) diameter
Compliance Volume (Vas – ft3 / l) 1.58/44.75
Maximum Excursion (Xmax –in/mm) 0.8/20.32
Vented Polepiece Yes
Progressive Spider Yes
Surround Nitrile-butylene rubber – one-piece with gasket
Low-Frequency Transducer 12" (305mm) Kevlar®-impregnated paper cone
Total Q (Qts) 0.51
Diecast Aluminum Frame Yes (vented)
Motor Force Factor (Bl – Tm) 14.64 (parallel VC connection)
Electrical Q (Qes) 0.55
Voice Coil DC Resistance (Revc – ohms) 3.2 (parallel VC connection)
Mechanical Q (Qms) 6.68
