Dynaudio AIR 20 m. Sub
Varebeskrivelse
Stand: Som ny - ingen synlige brugsspor
Mærke: Andre mærker

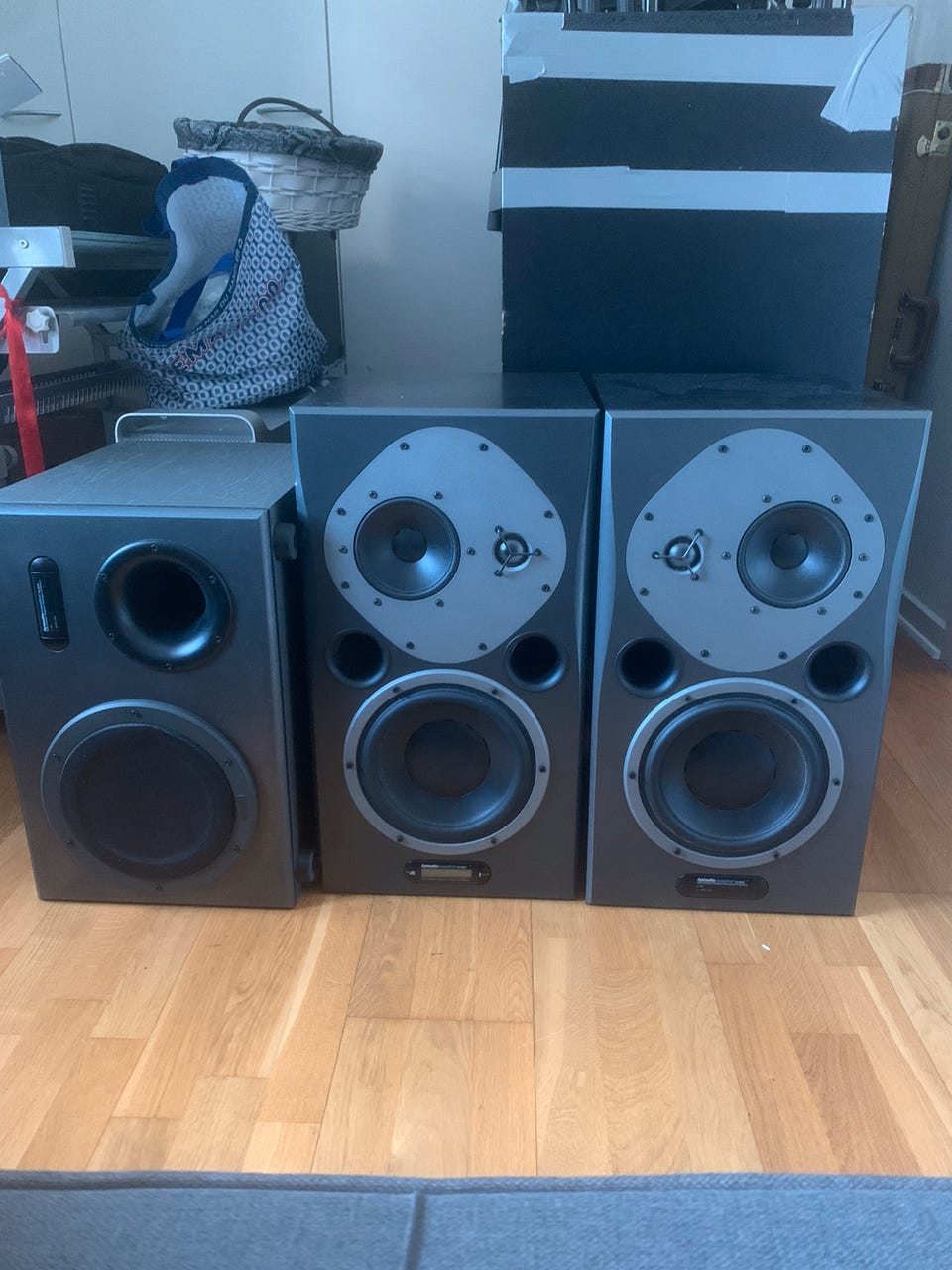

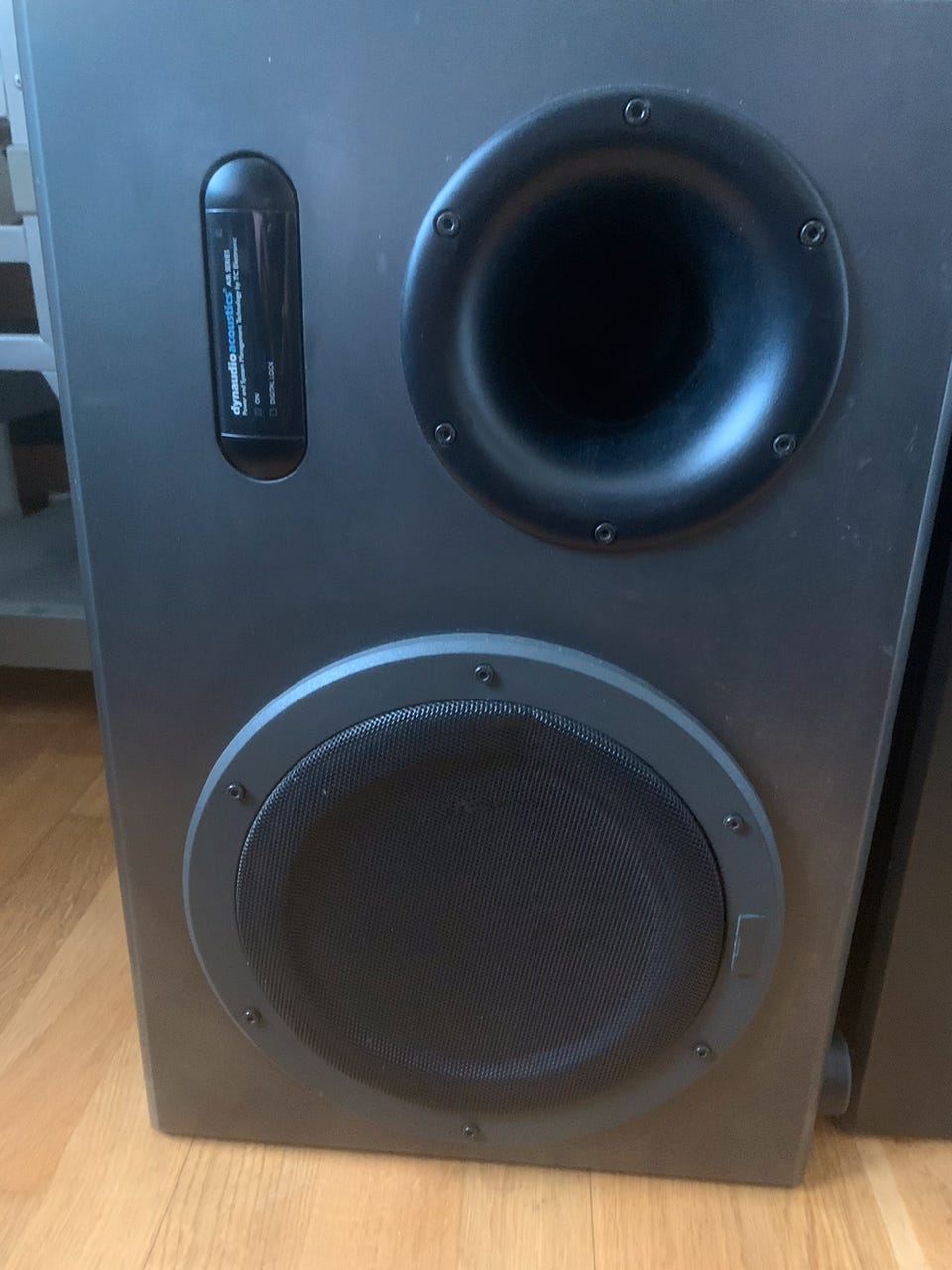

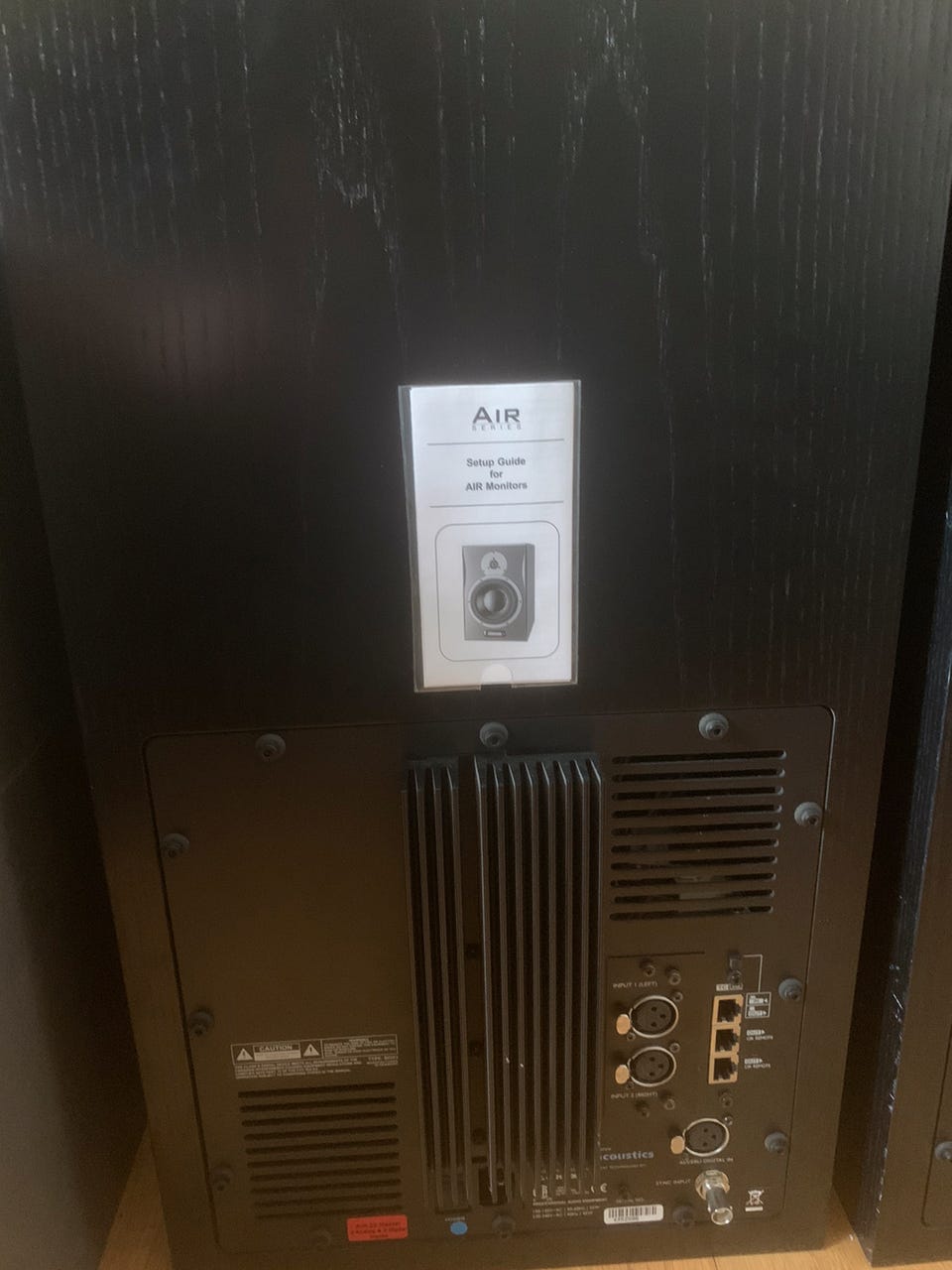

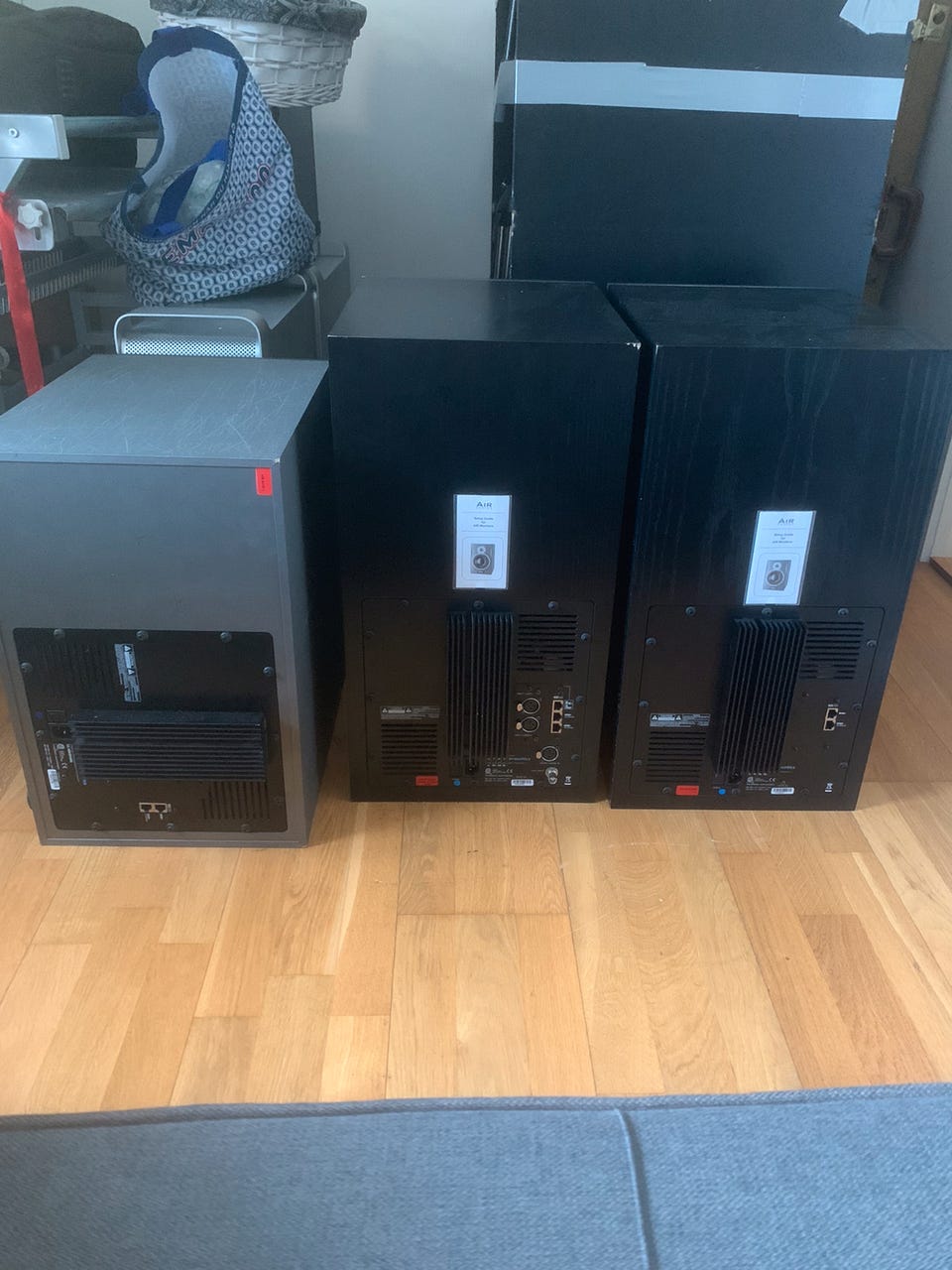

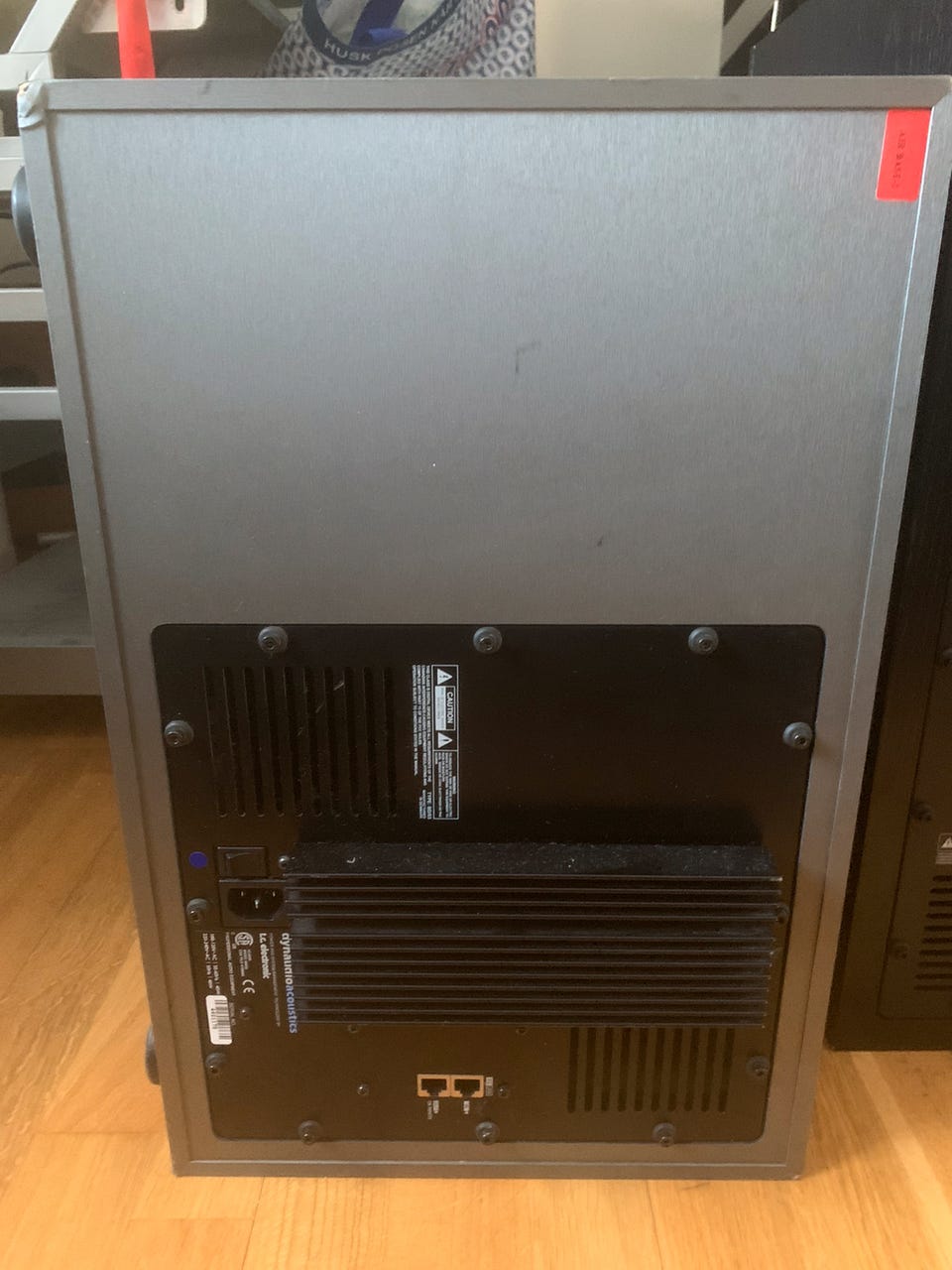

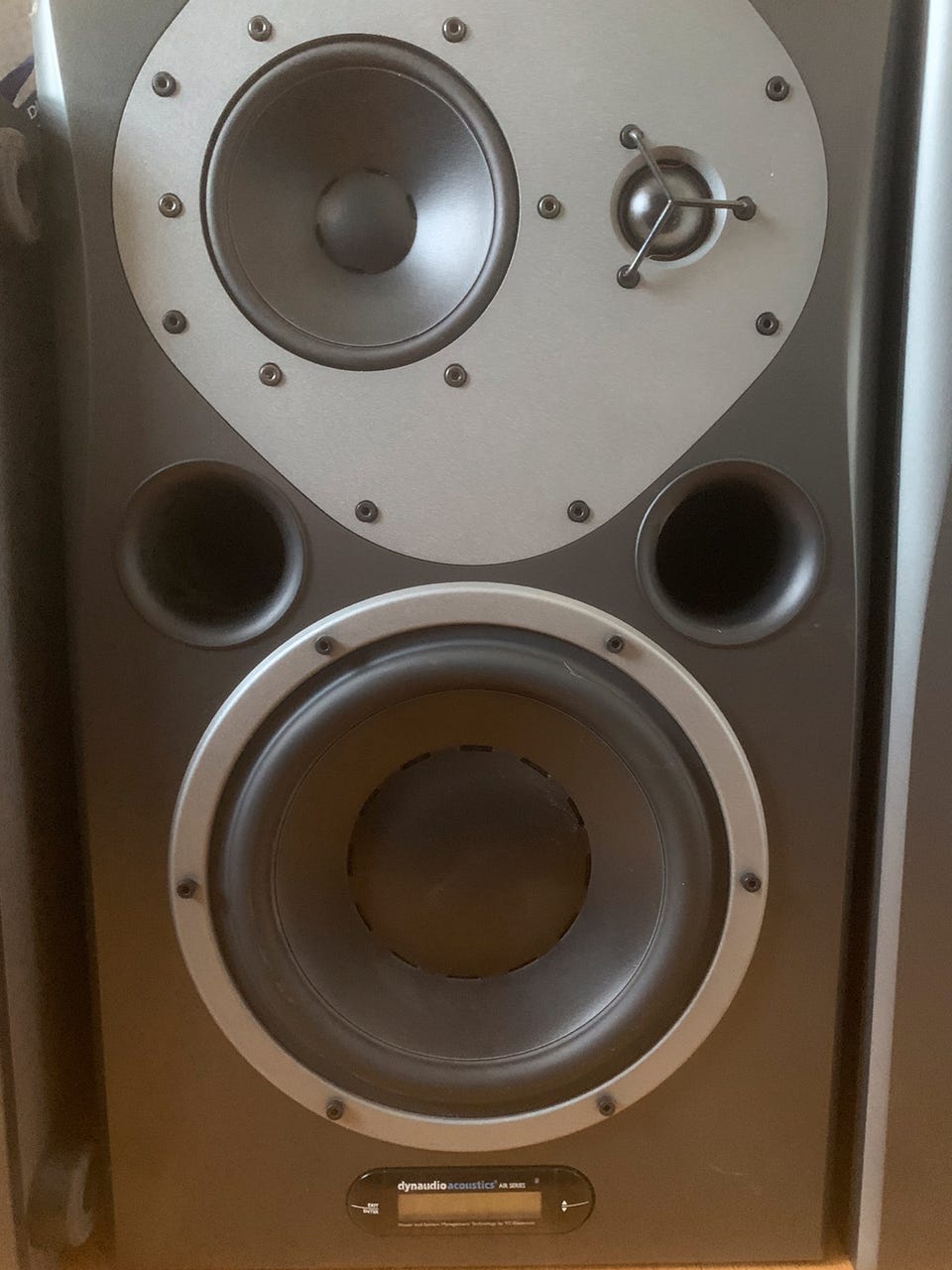

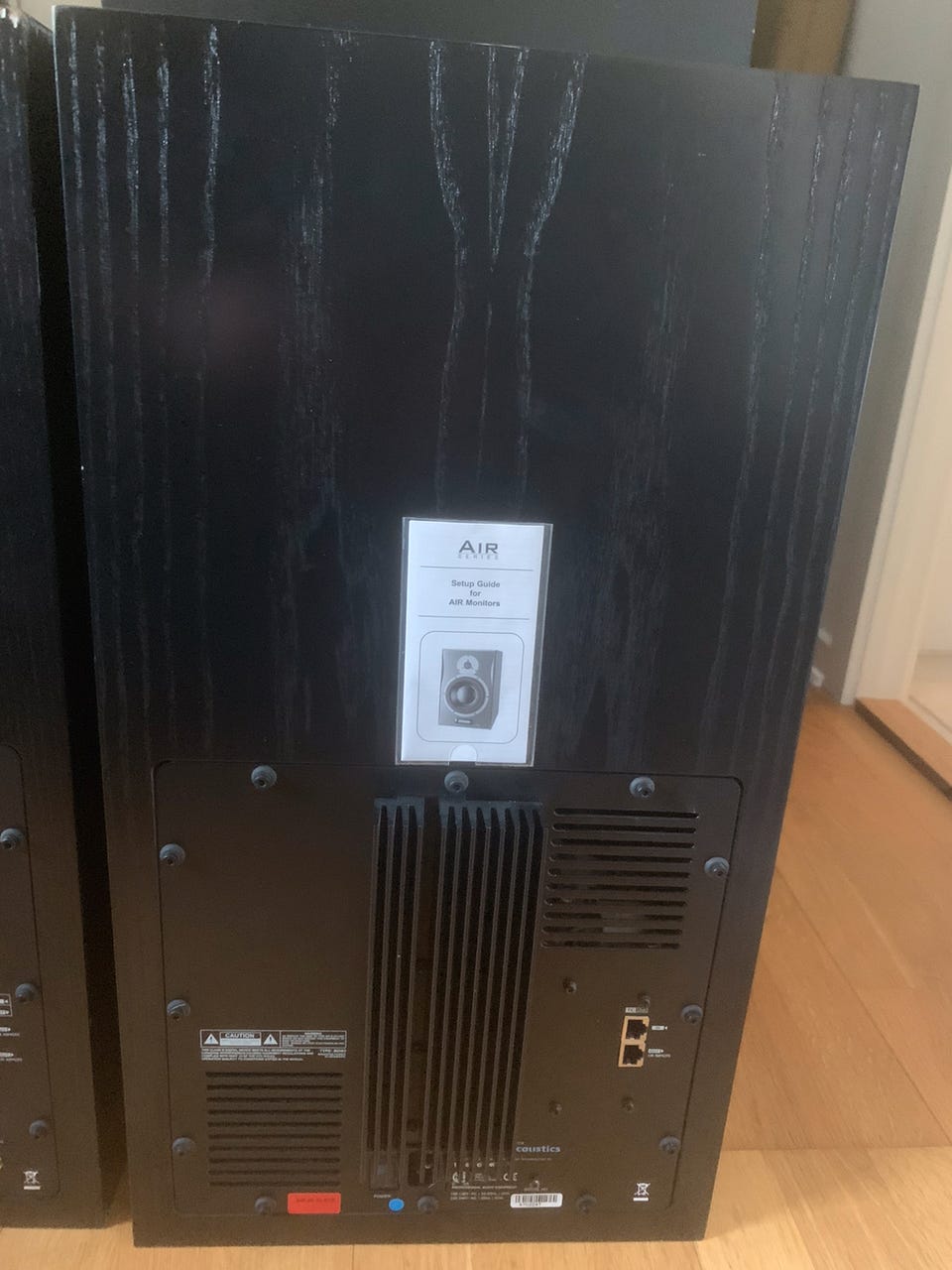

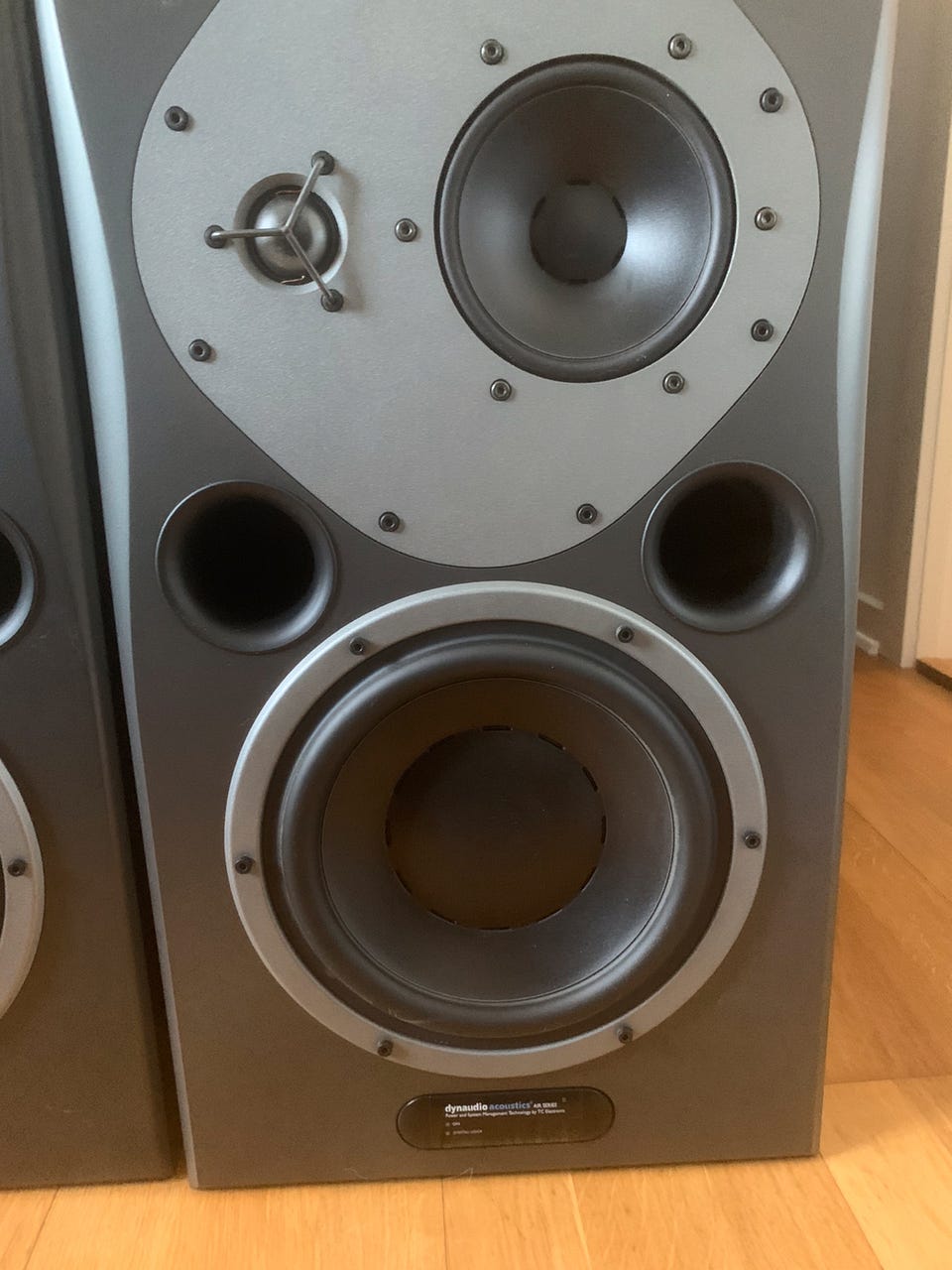

Et sæt Dynaudio AIR 20 med medfølgende subwoofer
De står i Mint condition og er blevet passet virkelig godt på
Skriv ift. hvis den skal sendes - dette er på købers eget ansvar dog
10" woofer, 5.5" midrange and 1.1 soft dome tweeter
192 kHz support via dual wire
The new 221 (two-to-one) design - integrating unique tweeter and mid-range technology
Bass management, with selectable frequency crossover points
Advanced bass management
Acoustic placement compensation
Preset storage and recall
Programmable reference levels
Level alignment in 0,1dB steps
All monitors aligned within +/- 0.2dB precision
Integrated parametric EQ’s and delay in each monitor (only accessible with PC-IP)
Central and remote control of system and parameters
Direct digital inputs and analog inputs (optional)
Networking in-between all AIR components
Dedicated AIR Base subwoofers
Two times 200-watt amp package in each monitor
Specifications:
System: three-way semiactive nearfield monitor
Frequency response (+/- 3 dB): 31 Hz –22 kHz: +/- 3 dB
Peak SPL 1m, pair (IEC short term): 131dB peak
Peak SPL 2m, 5.1 (IEC short term): 129 dB peak
Max SPL 1m, (IEC long term): 104 dB RMS
Precision of monitor matching: +/- 0.2 dB
Port tuning frequency: 40 Hz
Internal cabinet volume: 35 liters
Bass principle: bass reflex
Crossover frequency: 390 Hz (DSP generated) and 2600 Hz
Crossover slope: 12 dB/oct and 6 dB/oct
Tweeter unit: esotar 28 mm / 1.1” soft dome, neodymium magnet, rear chamber,
Midrange: 145 mm / 5,5", one-piece molded polypropylene cone, 38 mm /
Woofer: 240 mm / 9,5", one-piece molded polypropylene cone, 100 mm /
Mains voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power consumption: 45 W @ 1/8 max power (IEC 60065)
Amp: black painted back plate
Cabinet: black ash with dark gray MDF baffle
Dimensions: 575 x 310 x 395 mm / 22,6” x 12,2” x 15,5”
Depth incl. amp and driver: 28 kg / 62.2 lbs
Tweeter, midrange and woofer: tweeter & midrange 200 W amp/woofer 200 W amp
Typical listening distance: 1.5-3 m / 5-10.2 ft
Typical room size: 80-130 m3 / 2800-4600 ft3
Internal sample rate: 192 and 176.4 via dual wire (optional digital card required) and 96, 88.2, 64, 48, 44.1 or 32 kHz
I/O connectors: XLR (2 channels AES/EBU in) 3 x RJ 45 proprietary TC Link
Formats: AES/EBU (24 bit)
Word clock input: BNC, 75ohm, 0.6-10 Vpp
Display: 2 x 16 character dot matrix
Operation: menu system / four buttons
Input connectors: XLR balanced (pin 2+, pin 3-)
Impedance: 10/3 k ohm (balanced/unbalanced)
Selectable full scale input level: +9, +15, +21, +27 dBu
Dynamic range: > 113 dB typ. (unweighted), BW: 20-20 kHz
THD+N: < -105 dB typ. @ 1 kHz, -3 dBFS
Crosstalk: < -120 dB, 20 Hz to 20 kHz
A to D conversion: 24 bit (dual bit delta sigma sampling at 4.1/5.6/6.1/6.1 MHz)
I/O Connectors: 2 x RJ45 proprietary TC-Link
Complies with: EN 55103-1 and EN 55103-2, FCC part 15 class B, CISPR 22 class B
Certified to: IEC 60065, EN 60065, UL 6500 and CSA E60065 CSA FILE #LR10809
Operating temperature: 32° F to 122° F (0° C to 50° C)
Storage temperature: -22° F to 167° F (-30° C to 70° C)
Humidity: max. 90 % non-condensing
