MIST 1.4 MIDI FPGA computer
Til salg
1.500 kr.
Bed sælgeren om at sende med Fiks færdig! Det er trygt, hurtigt, og varen vil blive sendt til dig. Læs mere
Varebeskrivelse
Stand: Brugt - men i god stand
Platform: Andet

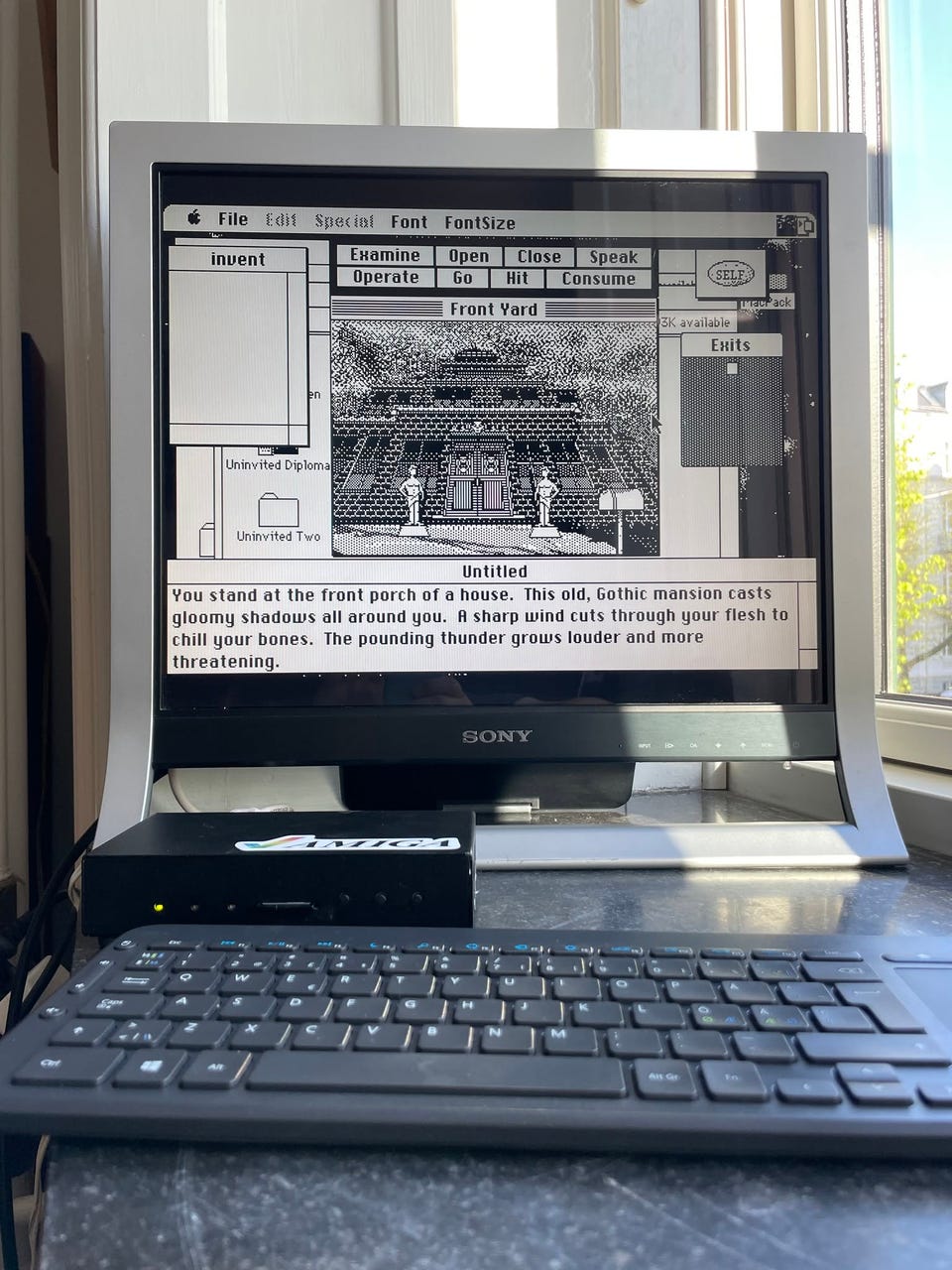

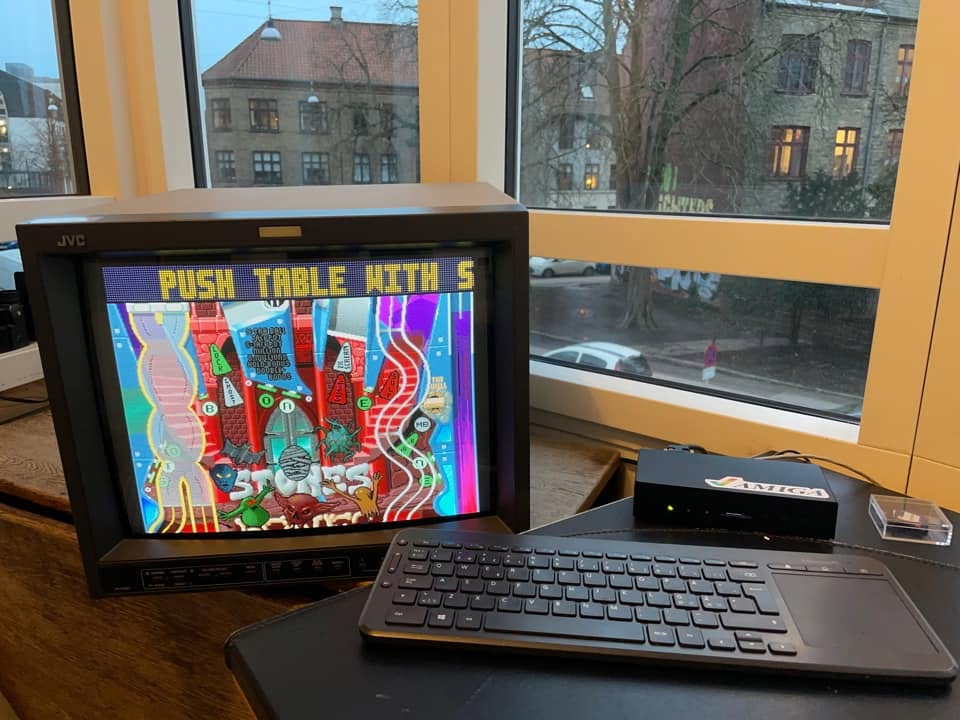

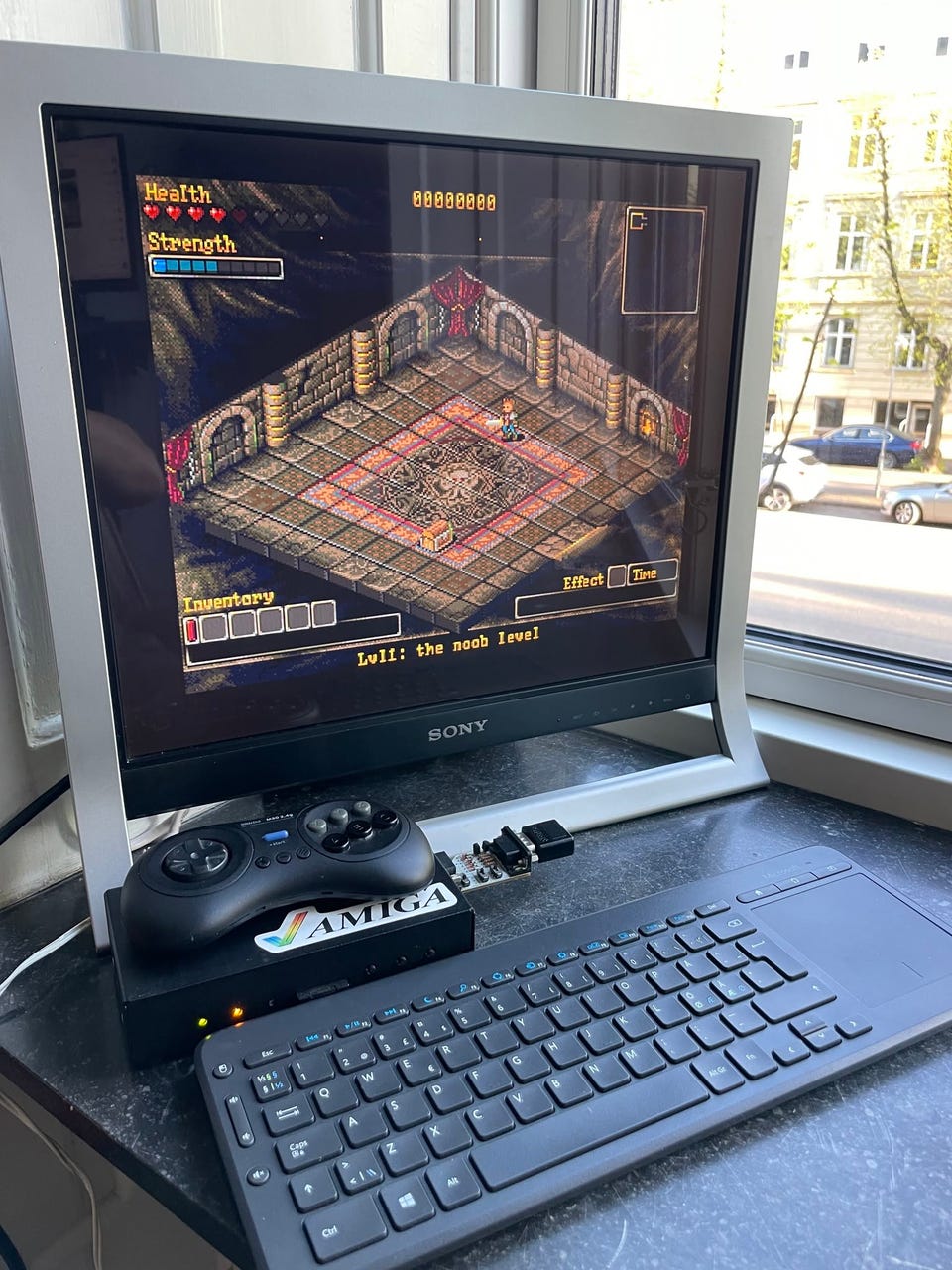

Version 1.4 (MIDI) in a high quality metal case, fully assembled, and ready-to-run. The MIST board uses modern hardware to implement classic 16 Bits computers like Amiga AGA, Atari ST(e), and 8 Bits systems like C64, ZX-Spectrum, MSX, Atari XL/VCS, Apple II, Colecovision, Sega Master System, NES, etc. The MIST is a re-implementation of the original hardware in a FPGA.

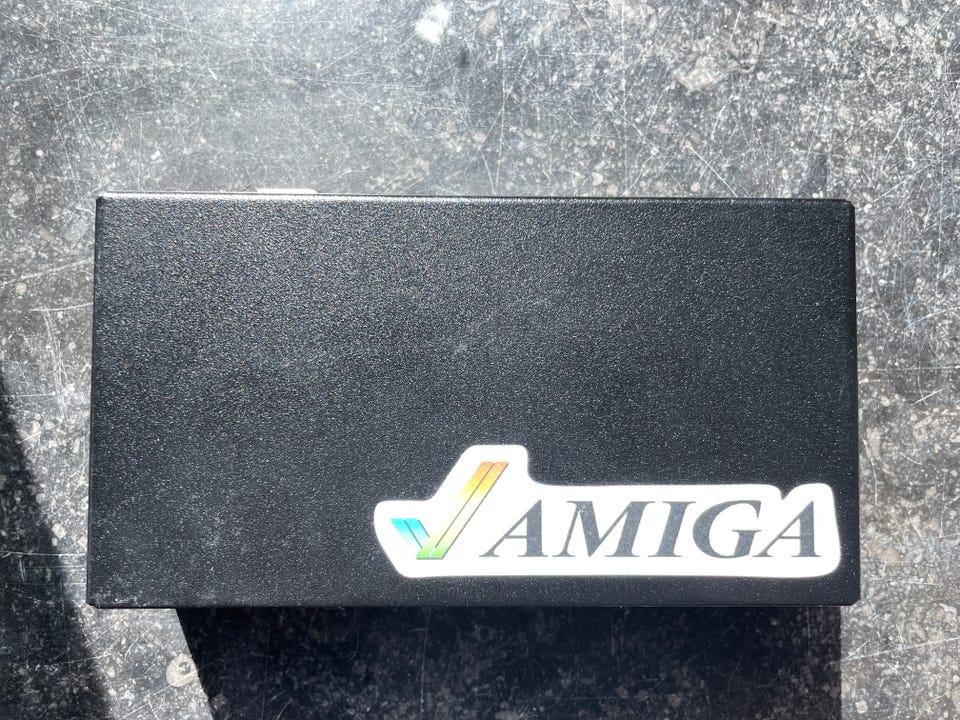

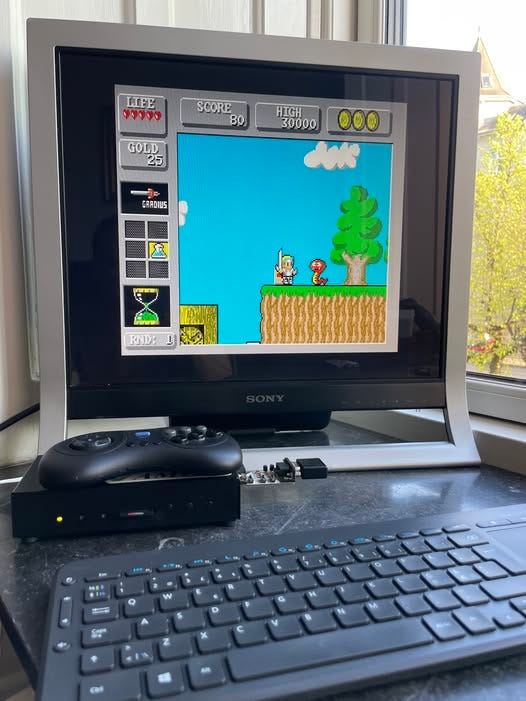

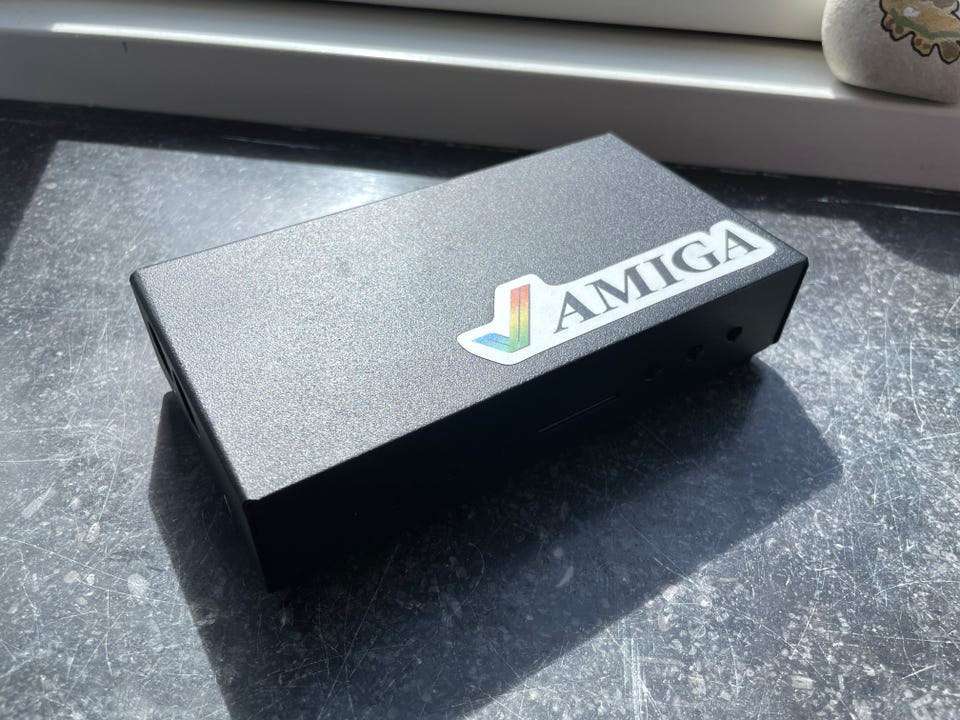

MiST 1.4 MIDI in a high quality metal case, fully assembled, and ready-to-run.
The MIST board uses modern hardware to implement classic 16 Bits computers like Amiga AGA, Atari ST(e), and 8 Bits systems like C64, ZX-Spectrum, MSX, Atari XL/VCS, Apple II, Colecovision, Sega Master System, NES, etc.
The MIST board isn't an emulation, it's a re-implementation of the original hardware in a FPGA.
Minimig Core for Amiga support ECS and AGA chipsets. Kickstart ROMs 1.2, 1.3, 2.0, 3.1 are also supported, and you will be able to load floppy disk images (ADF) and hard disk images (HDF) from the root directory or from subfolders.
List of available Cores for MIST:
A2600
AMIGA Minimig Core
AMIGA AGA - Minimig-AGA core
Atari ST/STe and Mega STe - Mist core
Apple II+
Arcade
Atari 800
Colecovision
Commodore C64 - PGA64 Core
MSX
NES (Nintendo Entertainment System)
SMS (Sega Master System)
ZX Spectrum 48/128
ZX01/ZX81
a2600
ABC80
amstrad
apple1
appleIIe
appleii+
aquarius
archimedes
astrocade
atari5200
atari7800
atari800
bbc
c16
coco2
colecovision
enterprise
fpga64
fpgagen
gameboy
intellivision
minimig-aga
mistery
msx
neogeo
nes
next186
oric
pcengine
pcxt
pet2001
ql
sms
snes
Exidy Sorcerer
zx spectrum
Ti99/4A
tsconf
vic20
videopac
See all 2026 cores here: https://github.com/mist-devel/mist-binaries/tree/master/cores

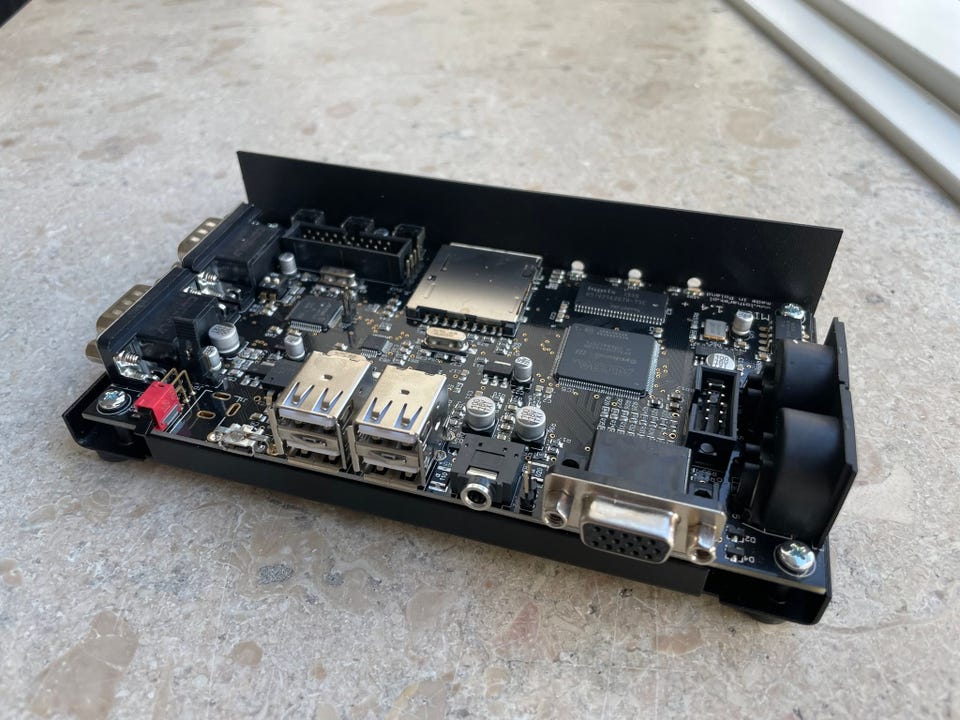

Main Components:
Altera Cyclone EP3C25 FPGA
32 Megabytes 16 bit wide SDR SDRAM
AT91SAM7S56 ARM IO controller
MAX3421E USB host controller
TUSB2046 USB HUB

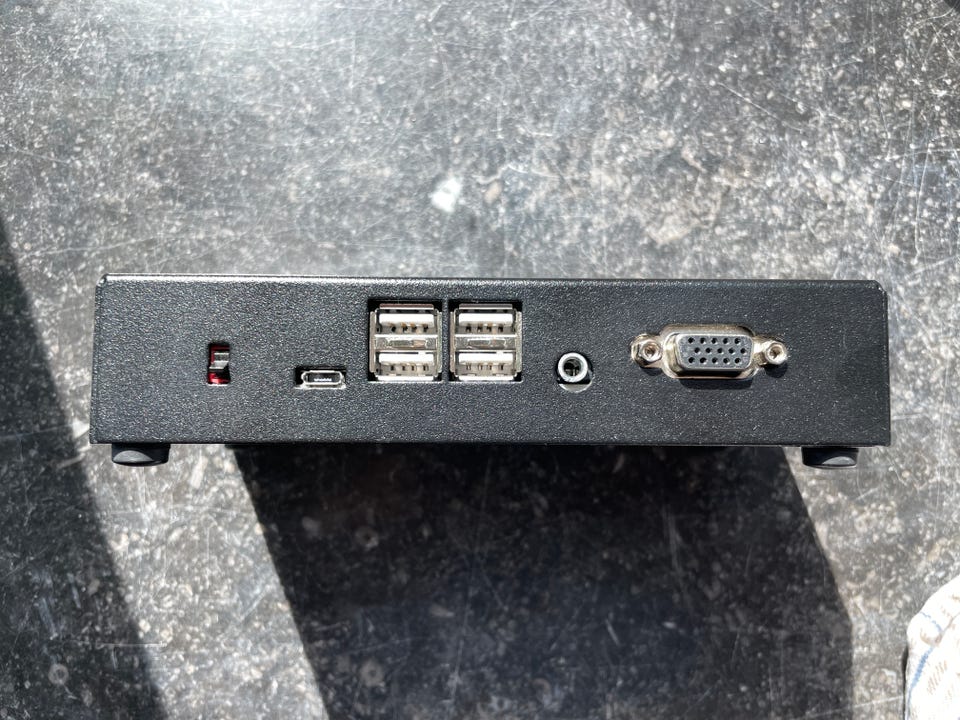

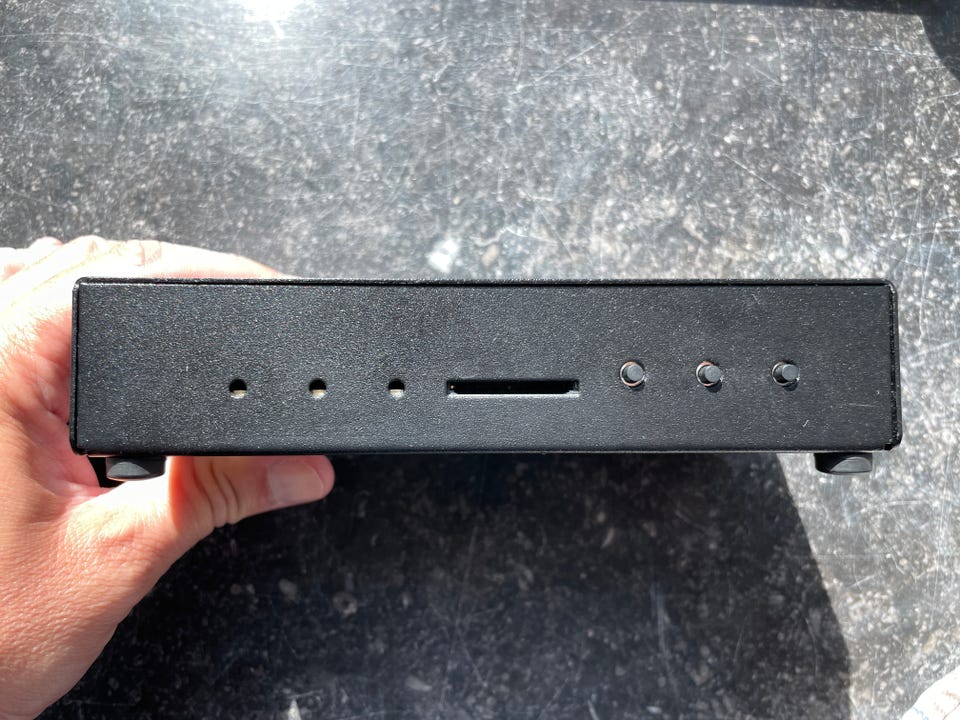

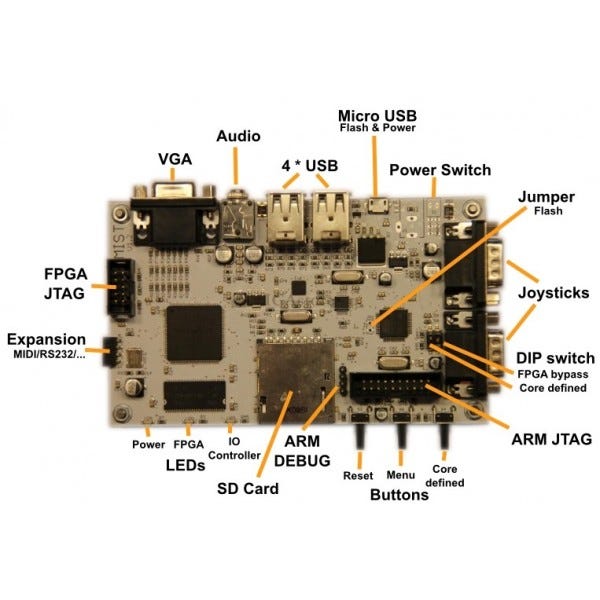

External connectors, buttons, and leds:
1 x Analog VGA output with 3*6 bits colour depth
1 x Stereo analog audio jack 3,5mm
1 x SD Card Slot
4 x USB (for keyboards, mouses, joysticks...)

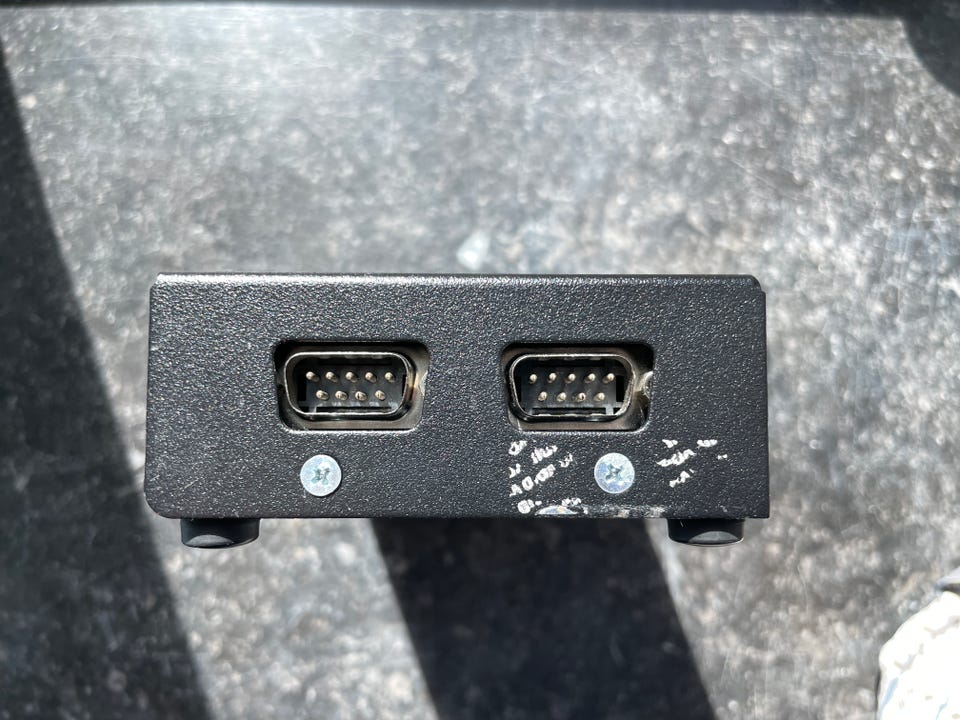

2 x Classic joystick connectors (Atari\'s specification DB9: Amiga, Atari, Amstrad, C64, etc)
3 x LEDs (Power, FPGA and IO Controller)
3 x Pushbuttons (Board Reset, Menu, Core defined)
1 x Micro USB connector for power supply and IO Controller flash update
1 x Power Switch
Internal Connectors, switches and jumpers:
1 Flash Jumper for IO Controller flash update via Micro USB
2 DIP switches (FPGA bypass, core defined)
ARM JTAG connector for ARM IO Controller development and debugging
FPGA JTAG connector for FPGA development and debugging
ARM Debug connector for development
FPGA Expansion connector for MIDI/RS232
Requirements:
A USB keyboard
An SD card (1GB recommended)
A VGA or CRT screen
Optional Requirements:
A USB mouse (for Amiga/Atari/Apple/etc)
A classic Atari style joystick
A set of PC speakers or an audio cable for connect the audio output of the MIST to a TV/HI-FI
A USB to micro USB cable for power supply, and a 500 mA micro USB phone charger (or a HUB, or and USB computer port).
https://github.com/mist-devel
https://www.atari-forum.com/viewforum.php?f=115
https://github.com/mist-devel/mist-binaries/tree/master/cores
-Can be used to run a virtual Atari ST Cubase sequencer, has midi ports for your synthesizers.
-Run your favorite MIDI sequencer from Amiga.

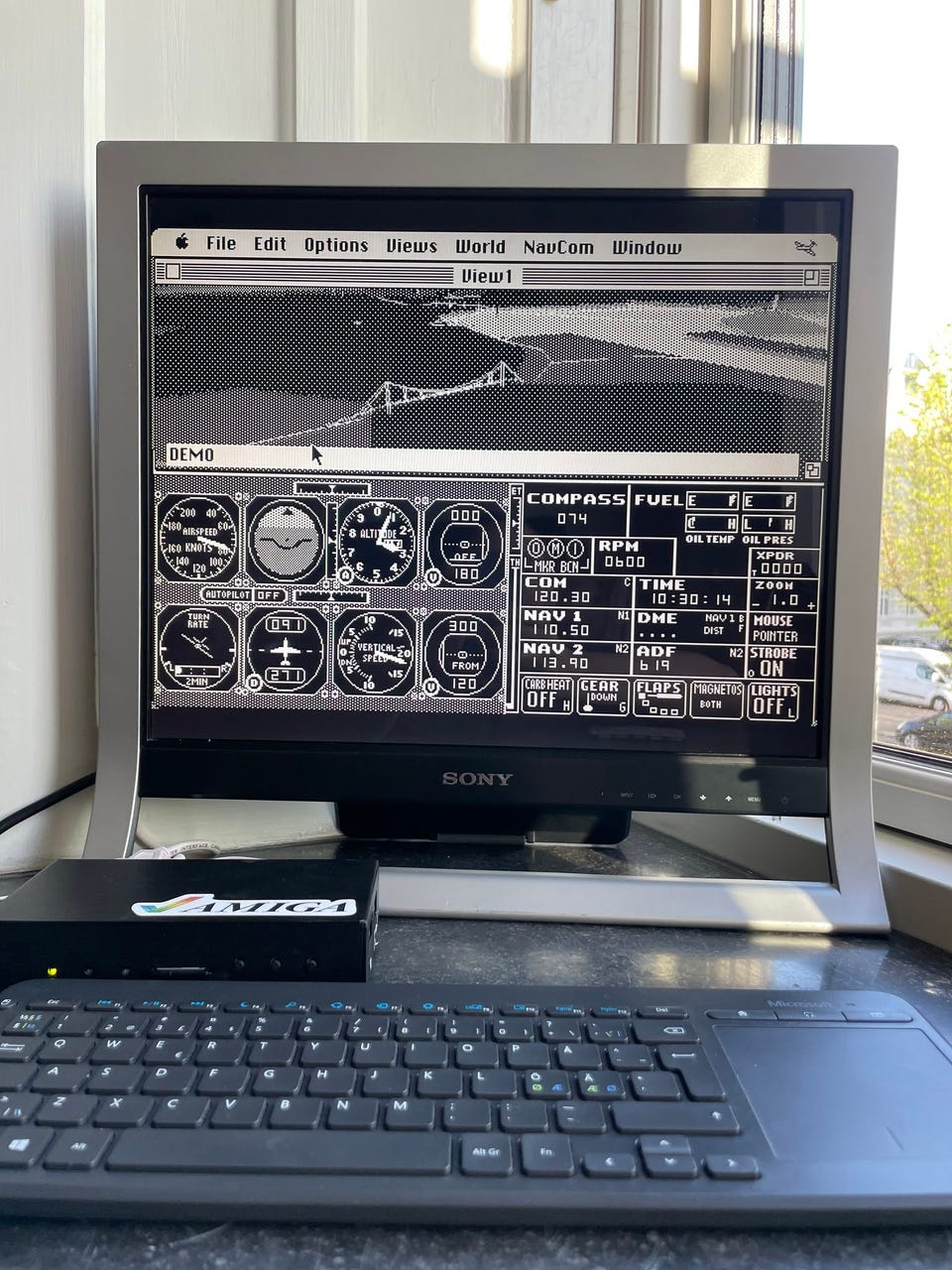

-Run Cubase or other sequencers from Macintosh.

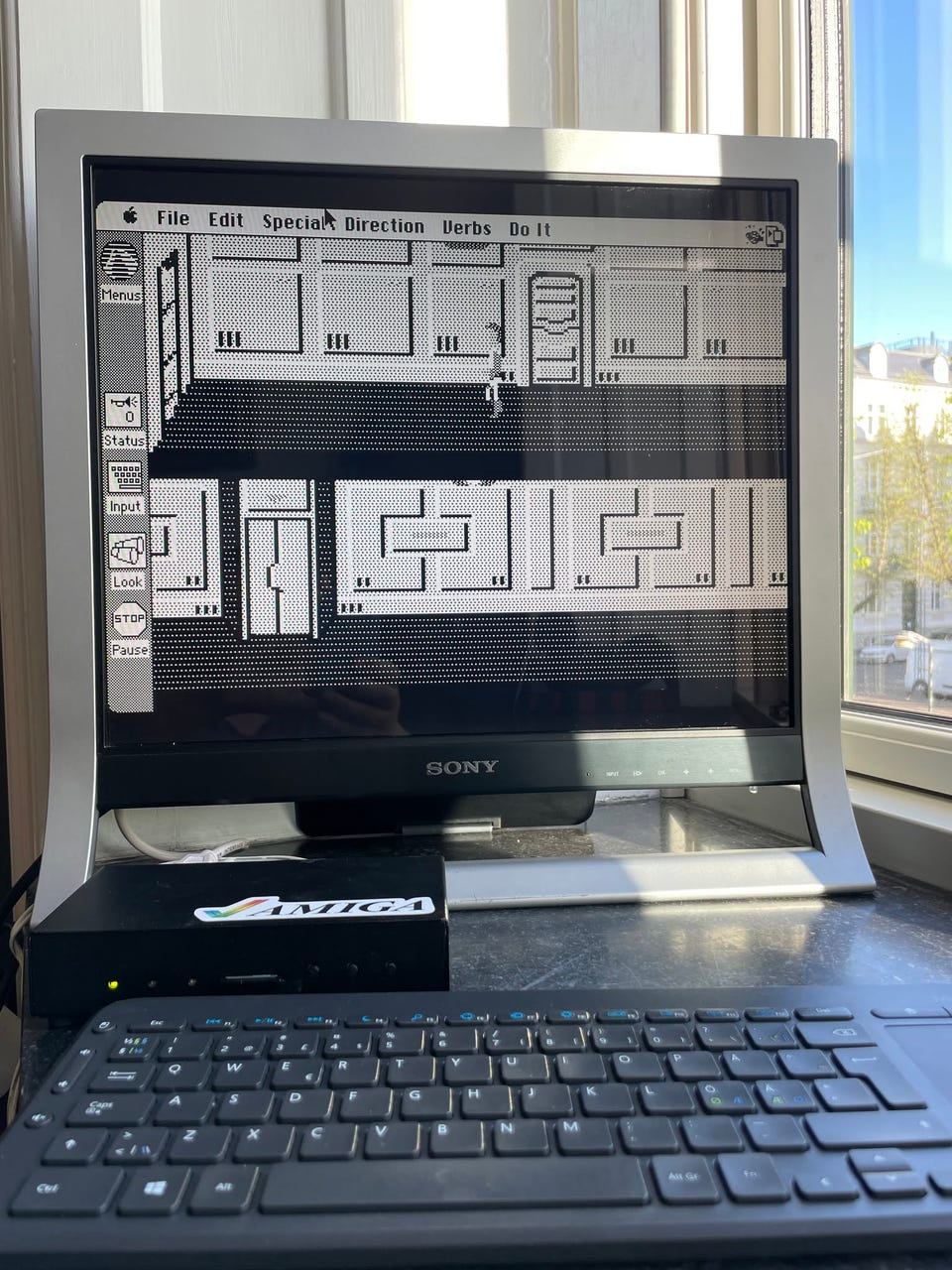

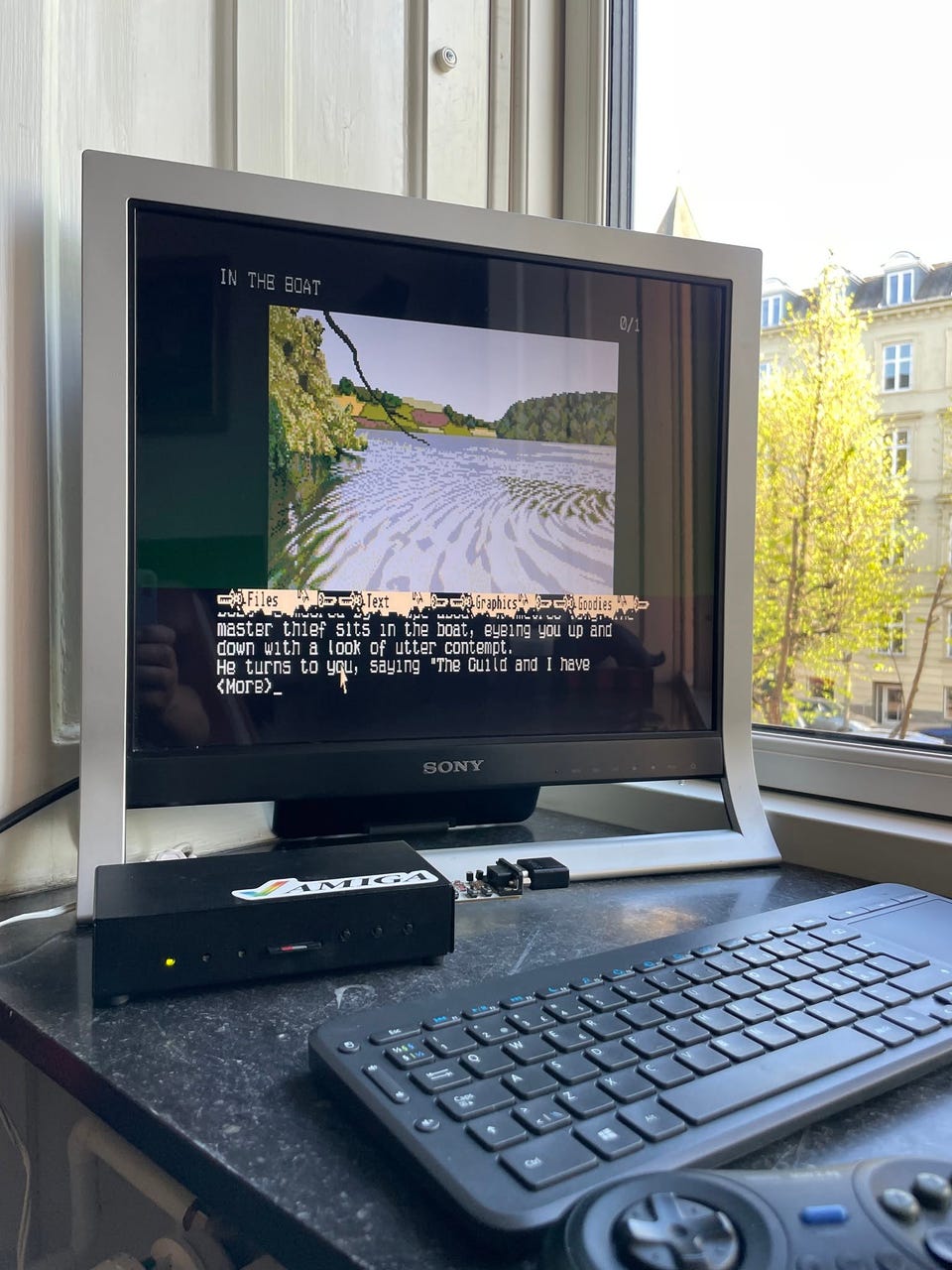

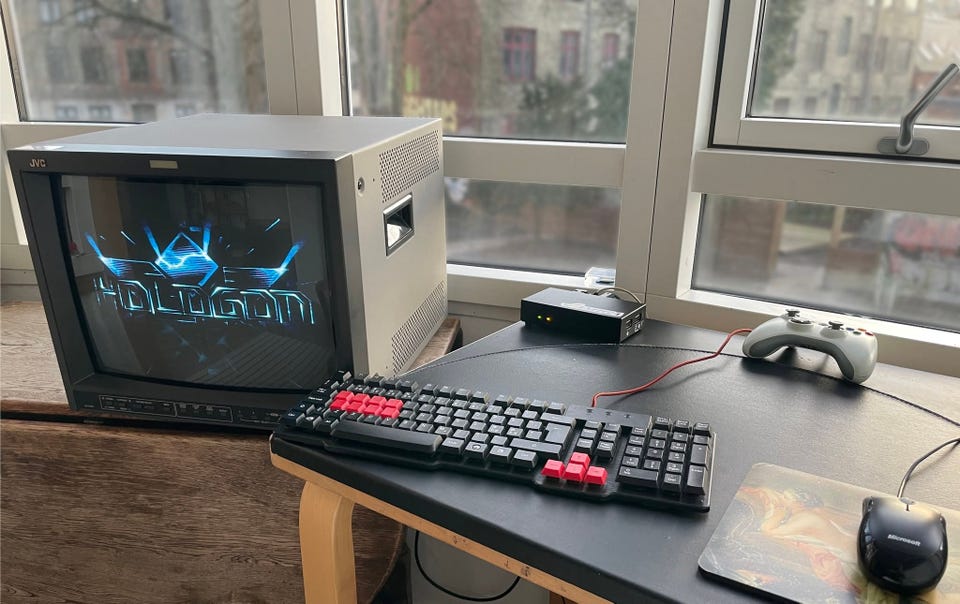

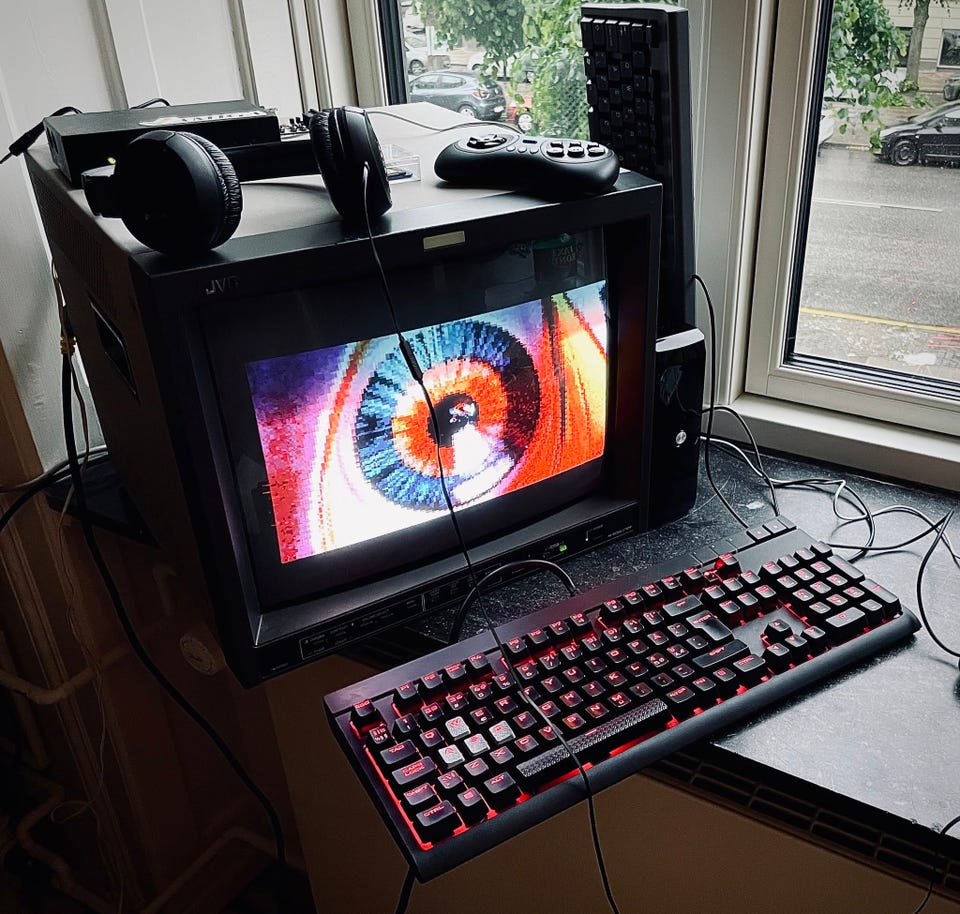

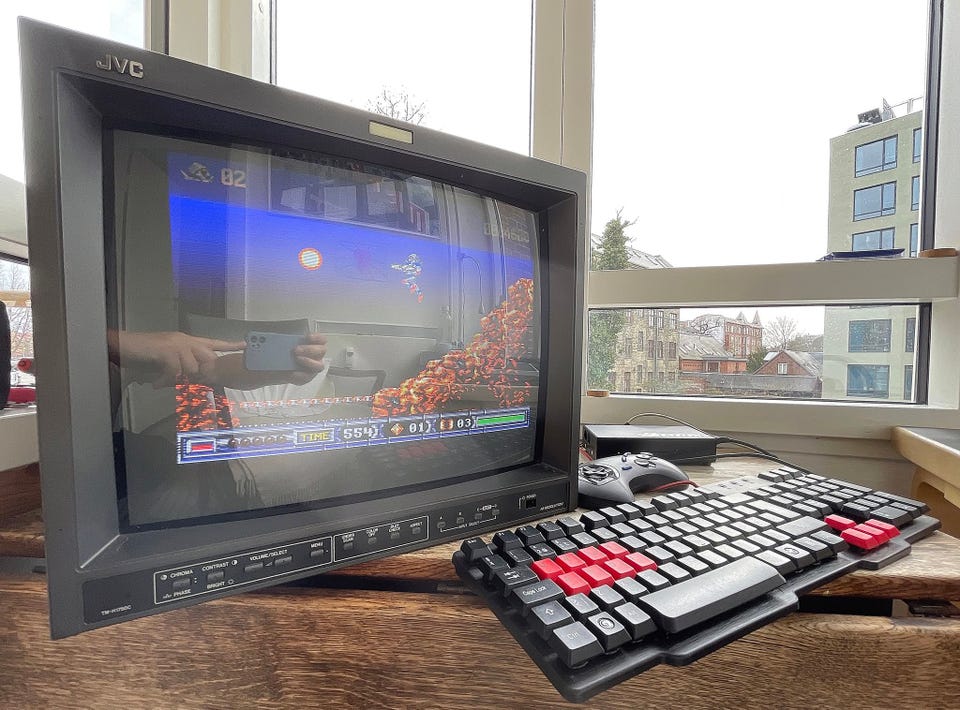

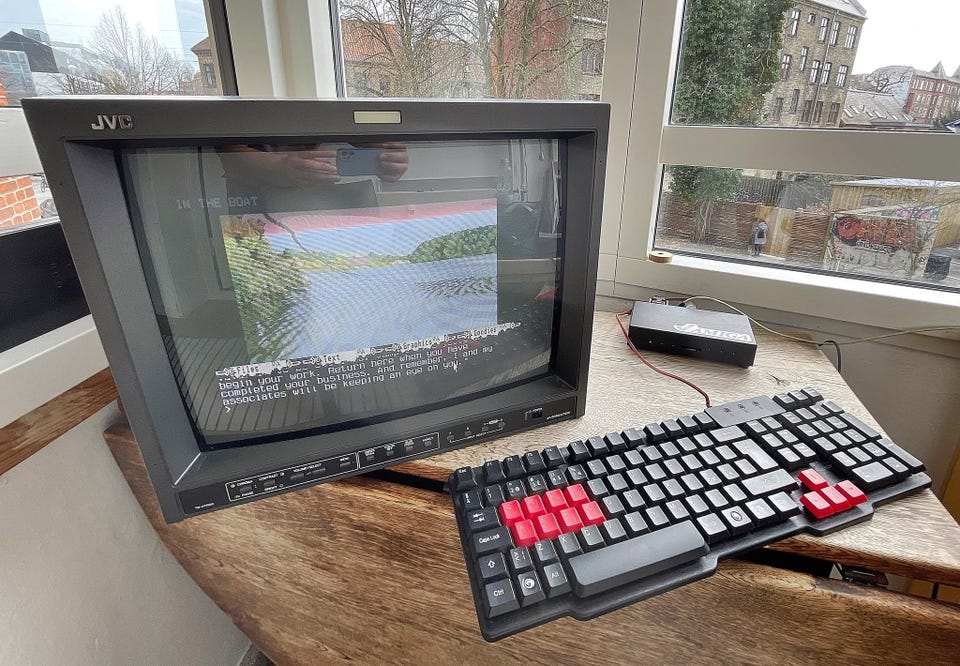

-Works on any CRT or VGA (CRT or LCD, etc) screen.
-Works with AmigaVision.

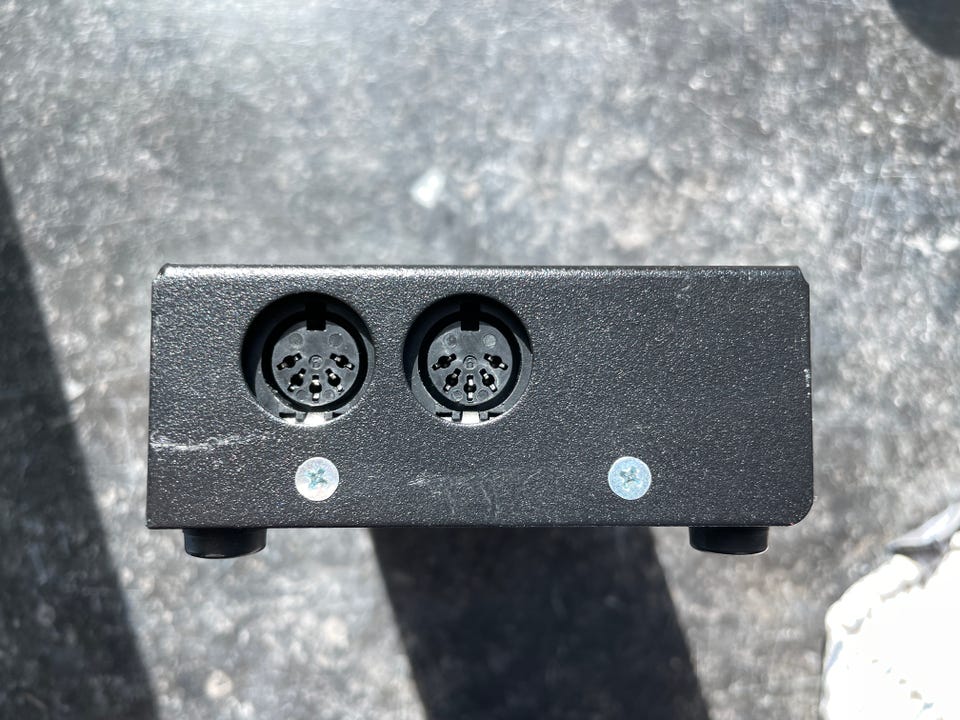

-Midi ports for plugging in synths or MT-32 devices for games.
-Normal oldschool joystick ports built-in.

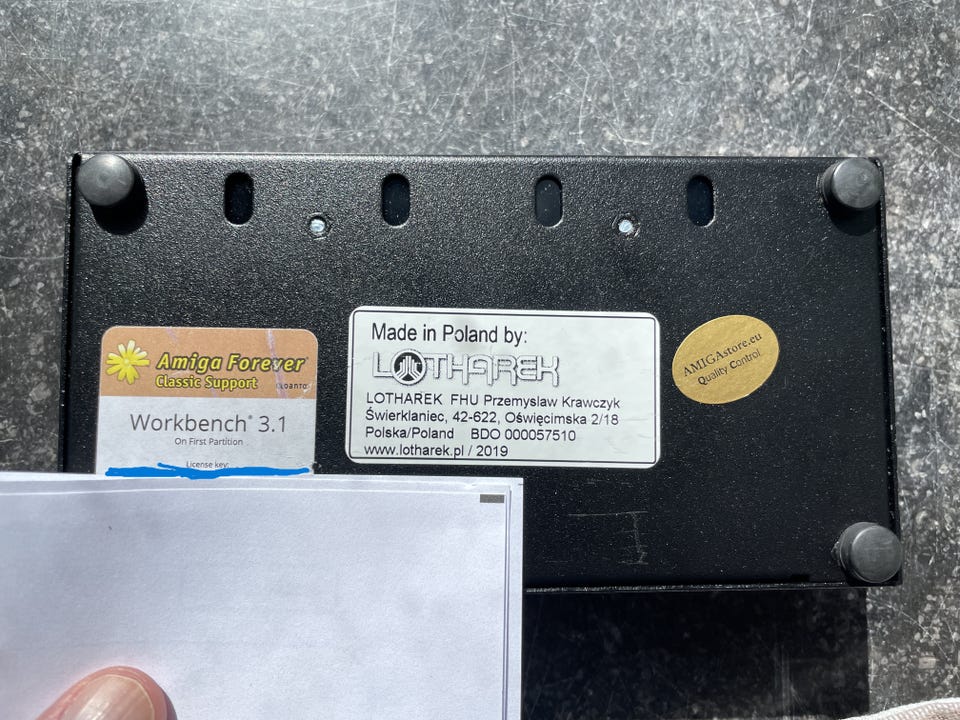

-Amiga Workbench license included.
Included:
Mist 1.4 in metal case only. No cables.
A micro usb Raspberry Pi charger can be included for 100 DKK.
Pick up only, Frederiksberg Allé, just near the metro station.
MobilePay accepted.
No shipping.
