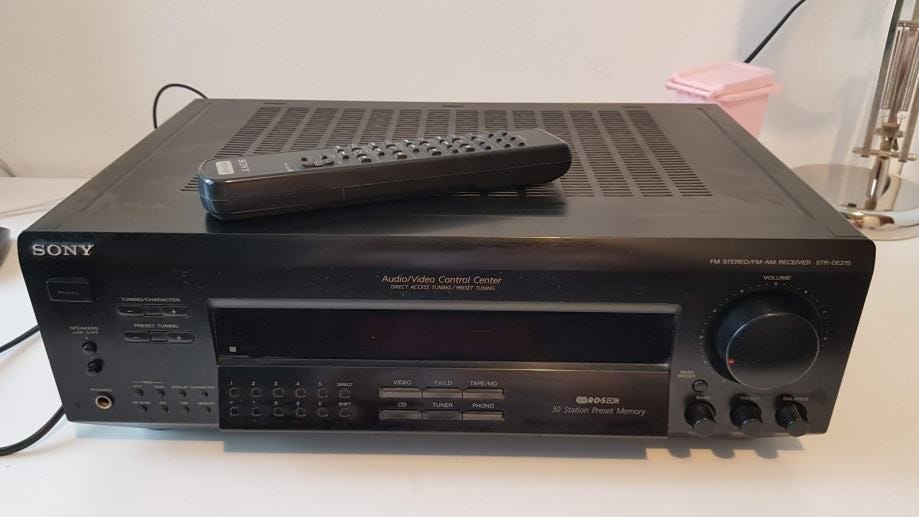

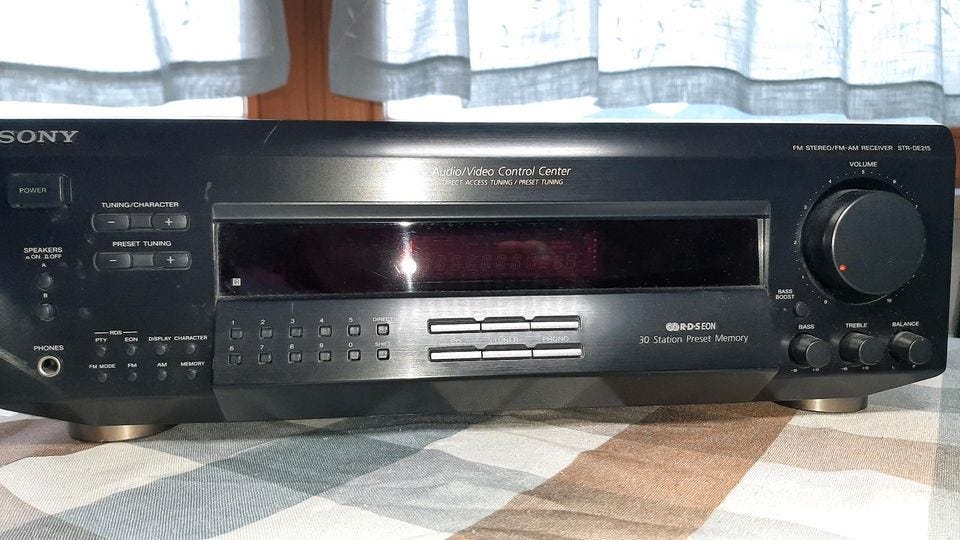

Forstærker, Sony, STR-DE 215
Varebeskrivelse
Stand: Som ny - ingen synlige brugsspor
Mærke: Sony
Forstærker, Sony, STR-DE 215, 60 WA W, Perfekt, VINTAGE FORSTÆRKER FRA SONY 1997
OG CD FRA 1993
SPECIFACATION. FM-MW
Sony STR-DE215
Stereo Reciver (1997)
Specifikationer:
Radio FM, MW
Udgangseffekt: 60 watt pr. kanal til 4O (stereo)
Frekvensgang: 10Hz til 50kHz
Indgangsfølsomhed: 2,5mV (MM), 200mV (linje)
Signal til støj-forhold: 72dB (MM), 82dB (linje)
Kanaladskillelse: 45dB (linje)
Udgang: 150mV (linje)
Højttalerbelastningsimpedans: 4O (minimum)
Mål: 430 x 145 x 295 mm
Vægt: 5,5 kg Technical Specifications
Number of Transistors
Semiconductors present.
Semiconductors
Main principle
Audio-Amplification
Wave bands
- without
Details
CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
Power type and voltage
Alternating Current supply (AC) / 120; 220-230; 240; 110-120; 220-240 Volt
Loudspeaker
- For headphones or amp.
Material
Metal case
from Radiomuseum.org

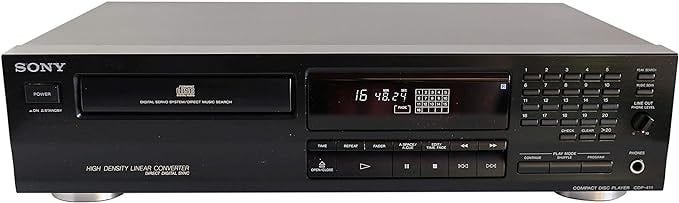

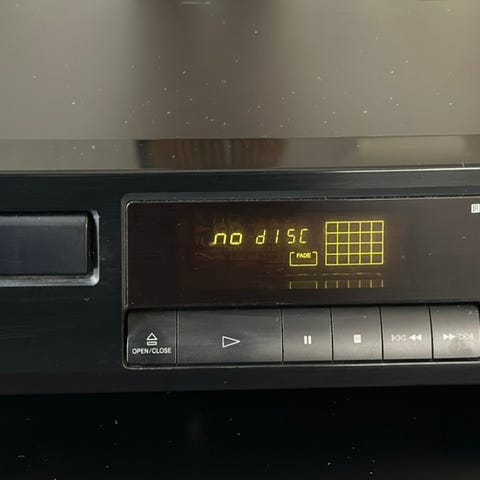

Model: Compact Disc Player CDP-411 - Sony Corporation; Tokyo
Shape
Book-shelf unit.
Dimensions (WHD)
430 x 110 x 295 mm / 16.9 x 4.3 x 11.6 inch
Notes
A stereo hi-fi compact disc player with remote control (see note below). RCA phono sockets for fixed Line Out and on European models, RCA phono sockets for variable Line Out. Digital optical output connector, jack for headphones with volume control.
Specification
Laser (KSS-240) Semiconductor laser
Wavelength 780-790nm
Frequency response 2 Hz - 20 kHz ±0.5 dB
Signal to noise ratio More than 102 dB
Dynamic range More than 98 dB
Harmonic distortion Less than 0.0035%
Channel separation More than 100 dB
Outputs
Line Out (Fixed) Output level 2V (at 50 k?)
Load impedance over 10 k?
Line Out (Variable)
(phono jacks) Output level max. 2V (at 50 k?)
Load impedance over 50 k?
Digital Out (Optical)
(optical output connector) Wave length 660 nm
Output level -18 dBm
Headphones
(Stereo phone jack) Output level max. 10 mW
