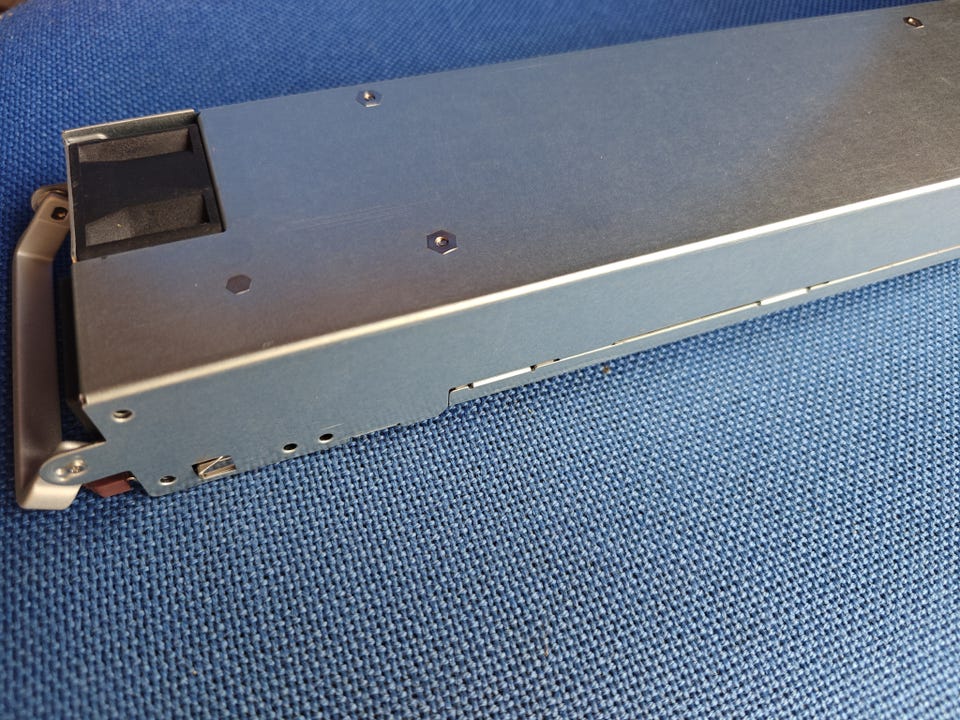

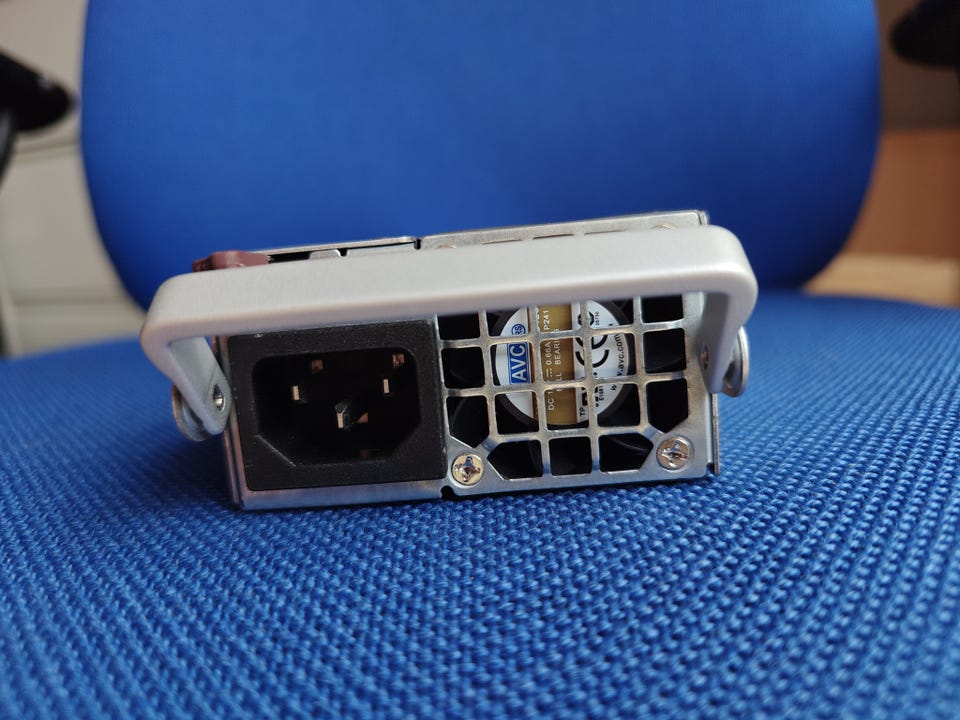

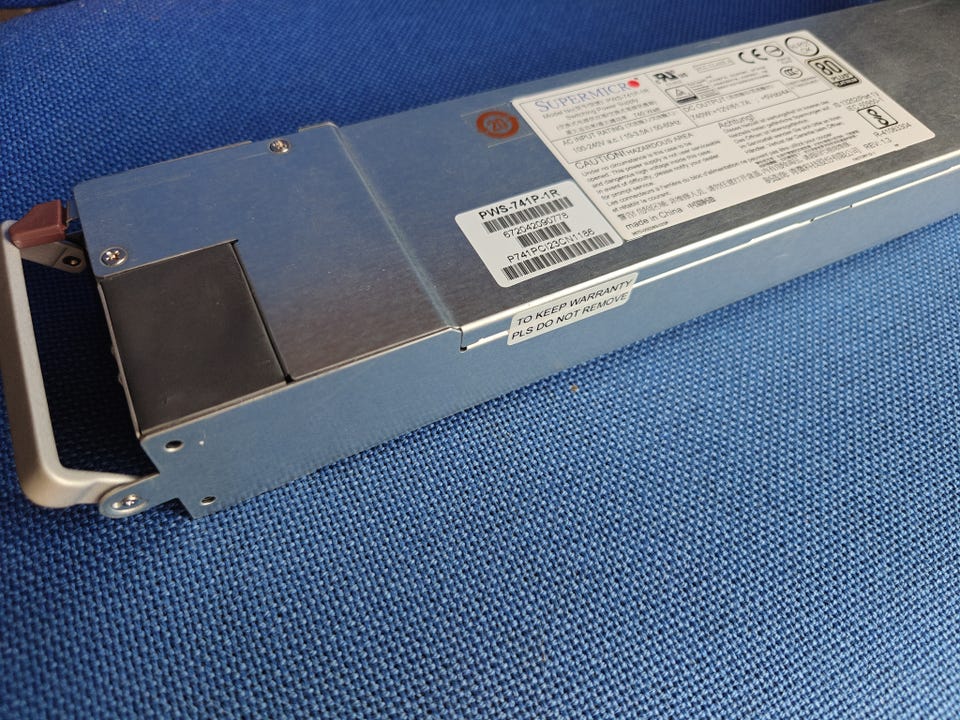

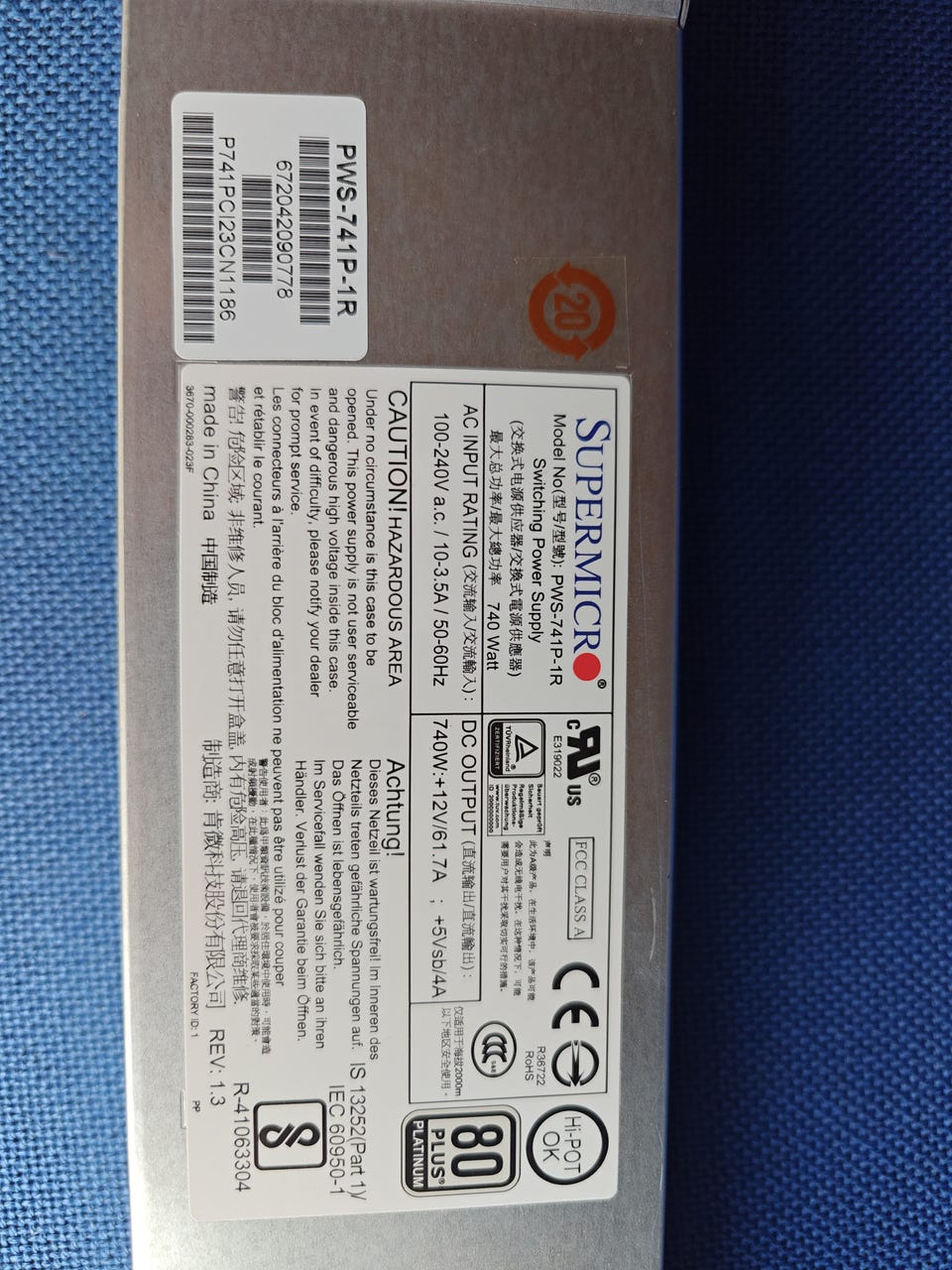

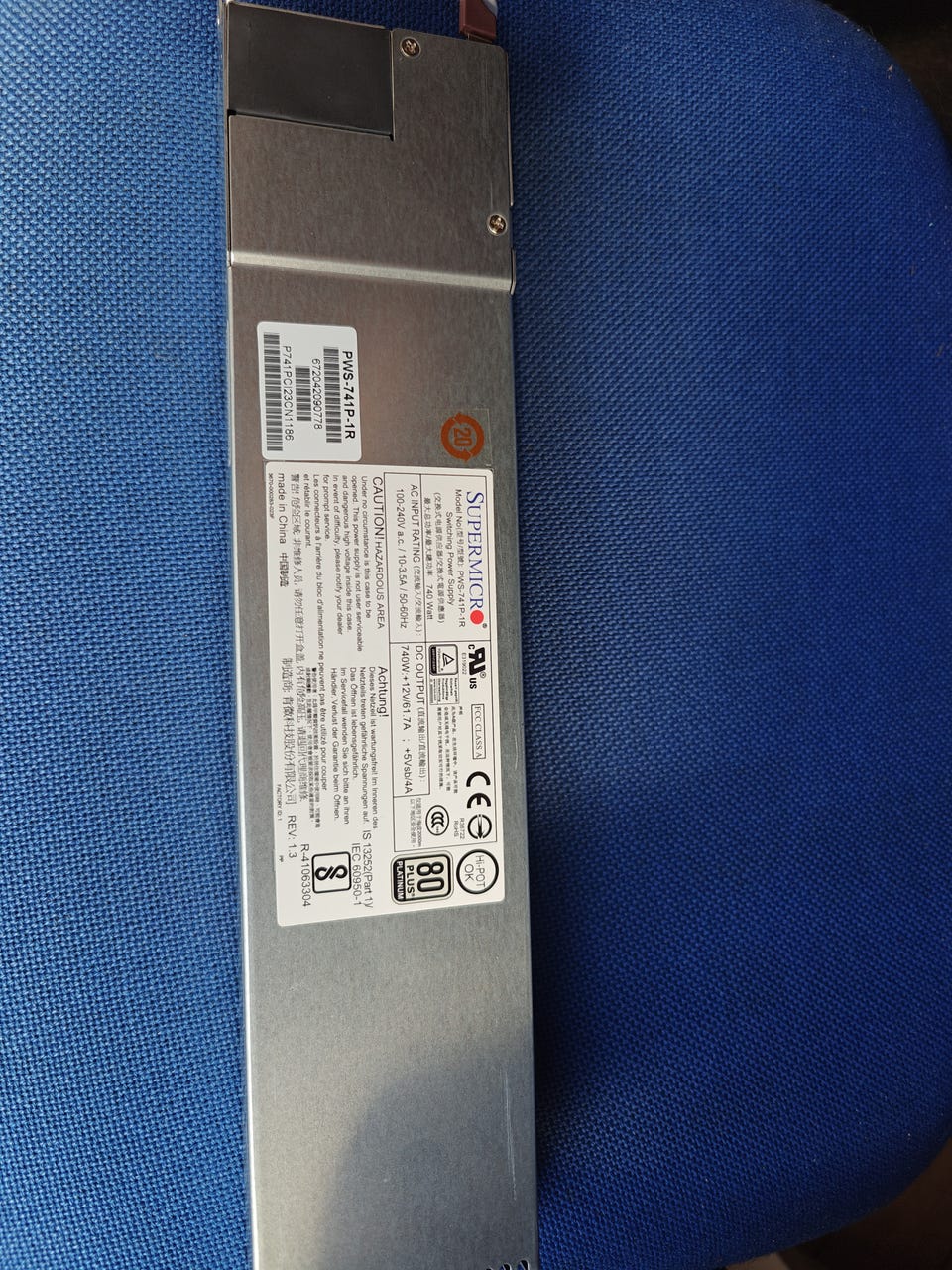

Supermicro server pws-741p-1r strømforsyning
Til salg
780 kr.
Fragt fra 29,99 kr. + Tryg betaling 33 kr.
Tryg handel med Fiks færdig
Efter leveringen har du 24 timer til at kontrollere produktet. Hvis der er noget galt med produktet, får du dine penge tilbage
Varebeskrivelse
Stand: Som ny - ingen synlige brugsspor
Type: Andre computerkomponenter
Supermicro server strømforsyning / switching power supply
Anses som ny men original kasse følger ikke med
740 Watt
80 plus Platinum
Description
The Supermicro PWS-741P-1R is an 80 Plus Platinum level redundant power supply capable of supplying 740W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
Specs:
Detailed Specification
More Information
Total Power Output 740W
Type Module
Type of Power Supply Power Supply
Form Factor 1U
Dimension (W x H x L) 76 x 40.4 x 336mm
+5V N/A
+12V 61.7A
+3.3V N/A
5V Standby 4A
Input Voltage Range 100-240Vac
Input Frequency Range 50-60Hz
Input Current Range 10-3.5A

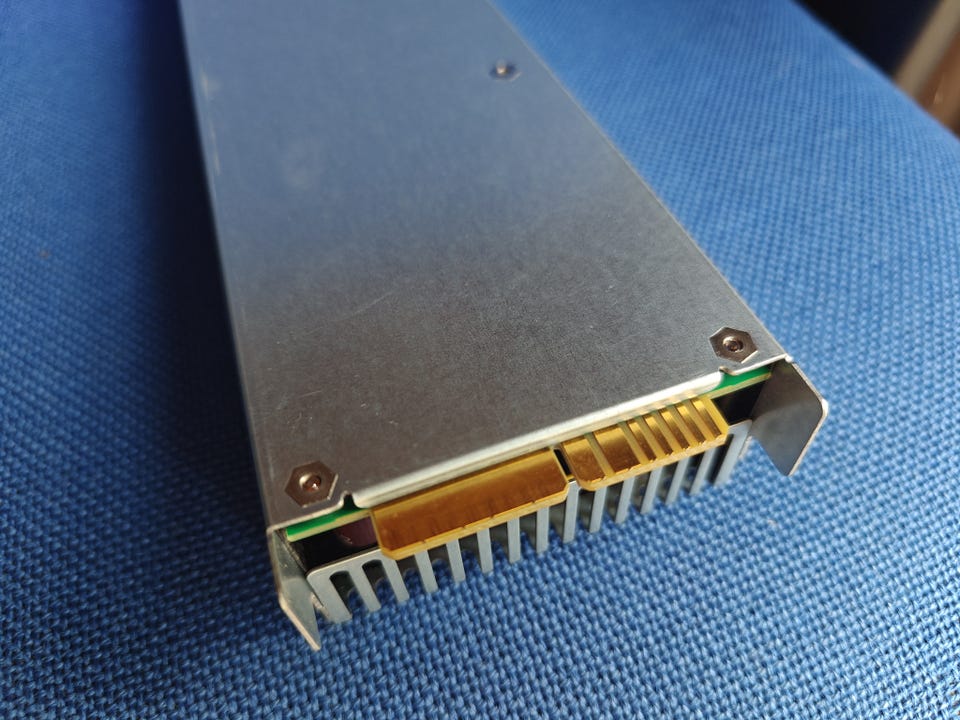

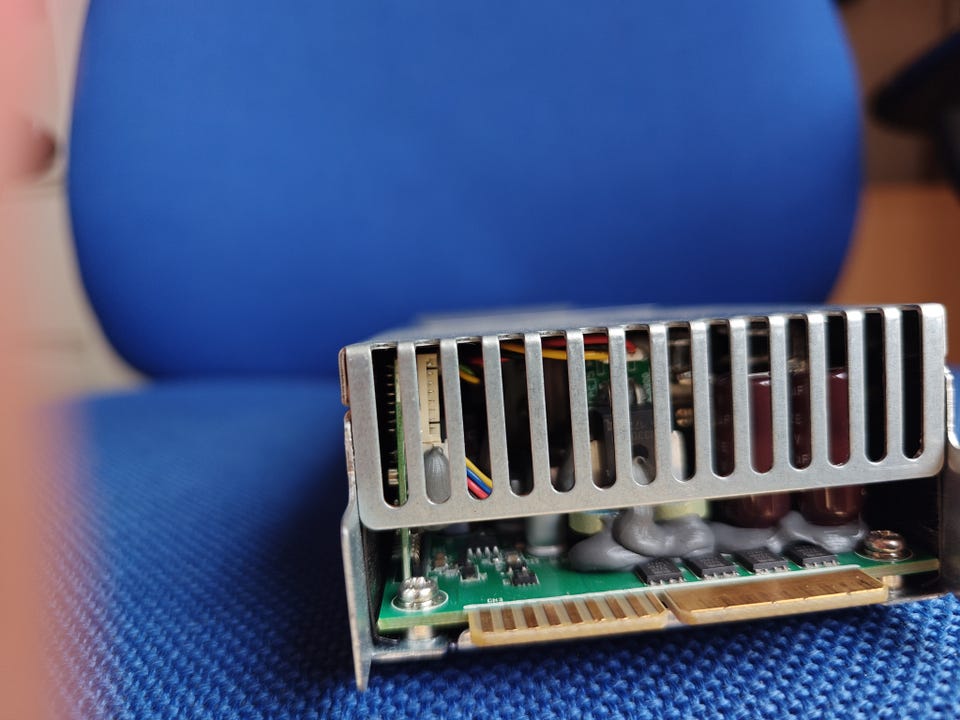

Output Type Gold Finger (19 Pair Connector)
8Pin / 4Pin (12V) Connector N/A
PFC Yes
Voltage / Current Yes
Energy Efficiency 94% Peak
80 Plus Certification 80 Plus Platinum
Validated Systems AS-2013S-C0R, SYS-2027R-WRF, SYS-6027B-URF, SYS-6027R-3RF4+, SYS-6027R-72RF, SYS-6027R-72RFT, SYS-6027R-72RFT+, SYS-6027R-73DARF, SYS-6027R-N3RF, SYS-6027R-TDARF, SYS-6027R-TRF, SYS-6027R-WRF, SYS-6028R-TR, SYS-6028R-TRT, SYS-6028R-WTR, SYS-6028R-WTRT
Validated Chassis CSE-823MTQC-R740LPB, CSE-823MTQC-R740WB, CSE-825TQ-R740UB
