Extreme Bearing CC30*47*7
(1/12)
Extreme Bearing CC30*47*7
Til salg
Fiks færdig
700 kr.
Fragt fra 29,99 kr. + Tryg betaling 31 kr.
Tryg handel med Fiks færdig
Fiks færdig er DBA's nye betalings- og fragttjeneste. Efter levering har du 24 timer til at kontrollere varen, før pengene udbetales til sælgeren.
Varebeskrivelse
Stand: Helt ny - uåbnet/med prismærke

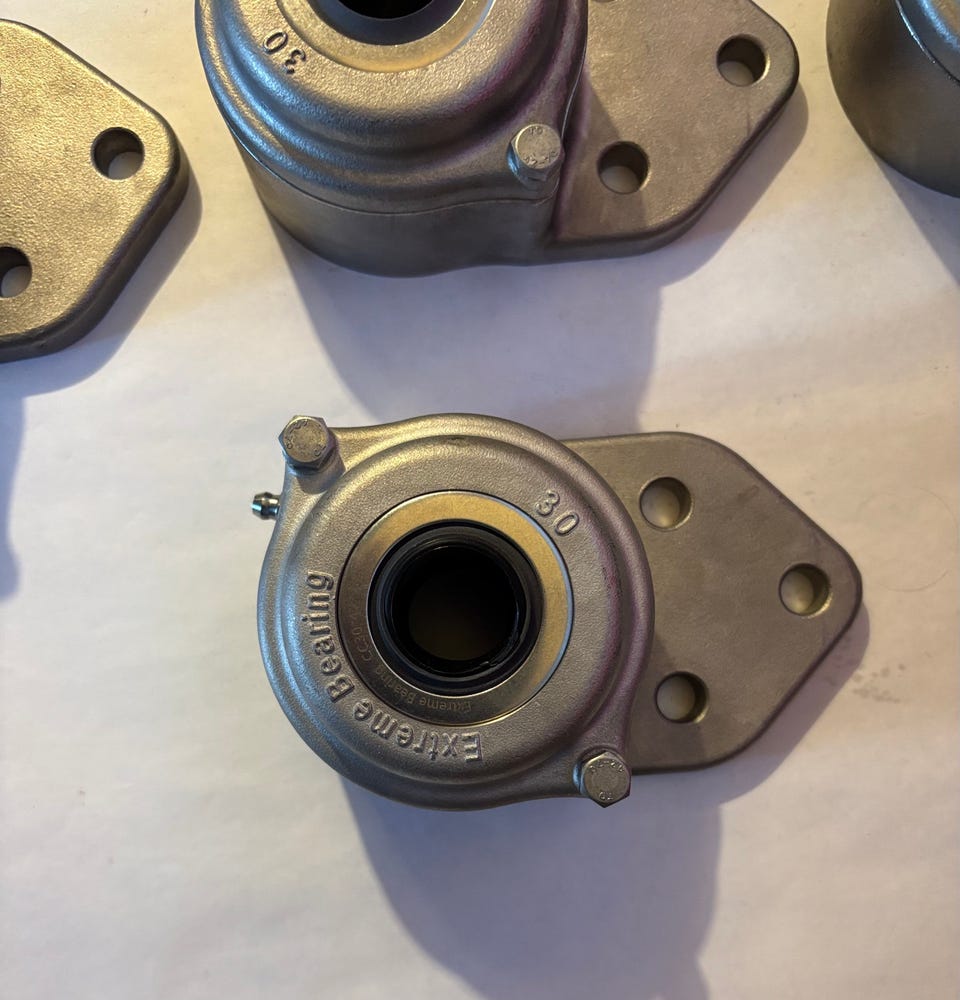

Extreme Bearing CC30*47*7

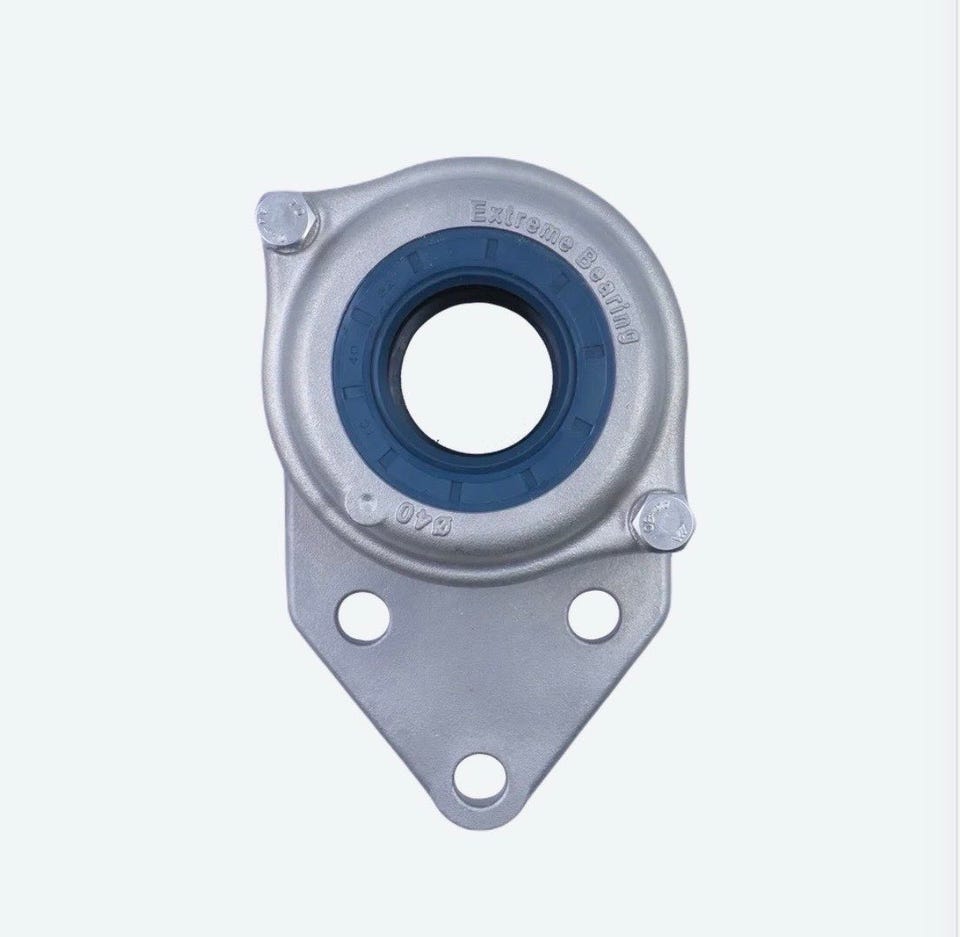

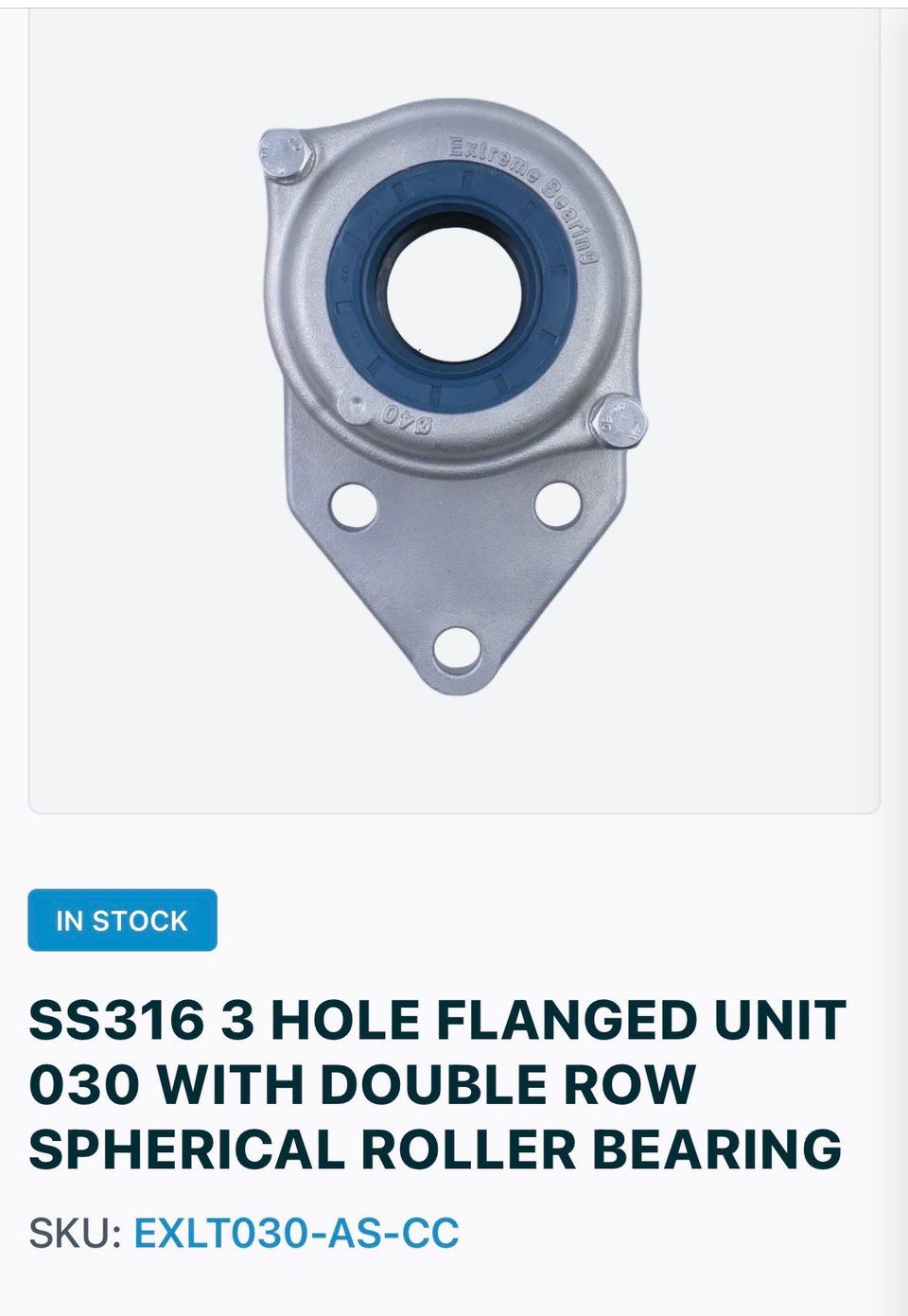

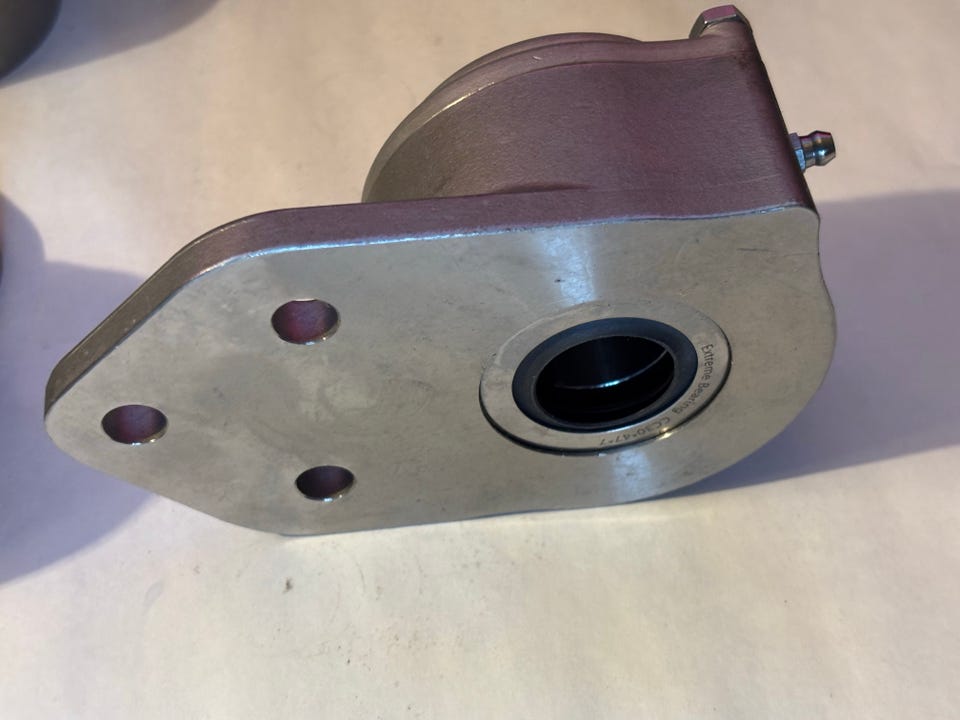

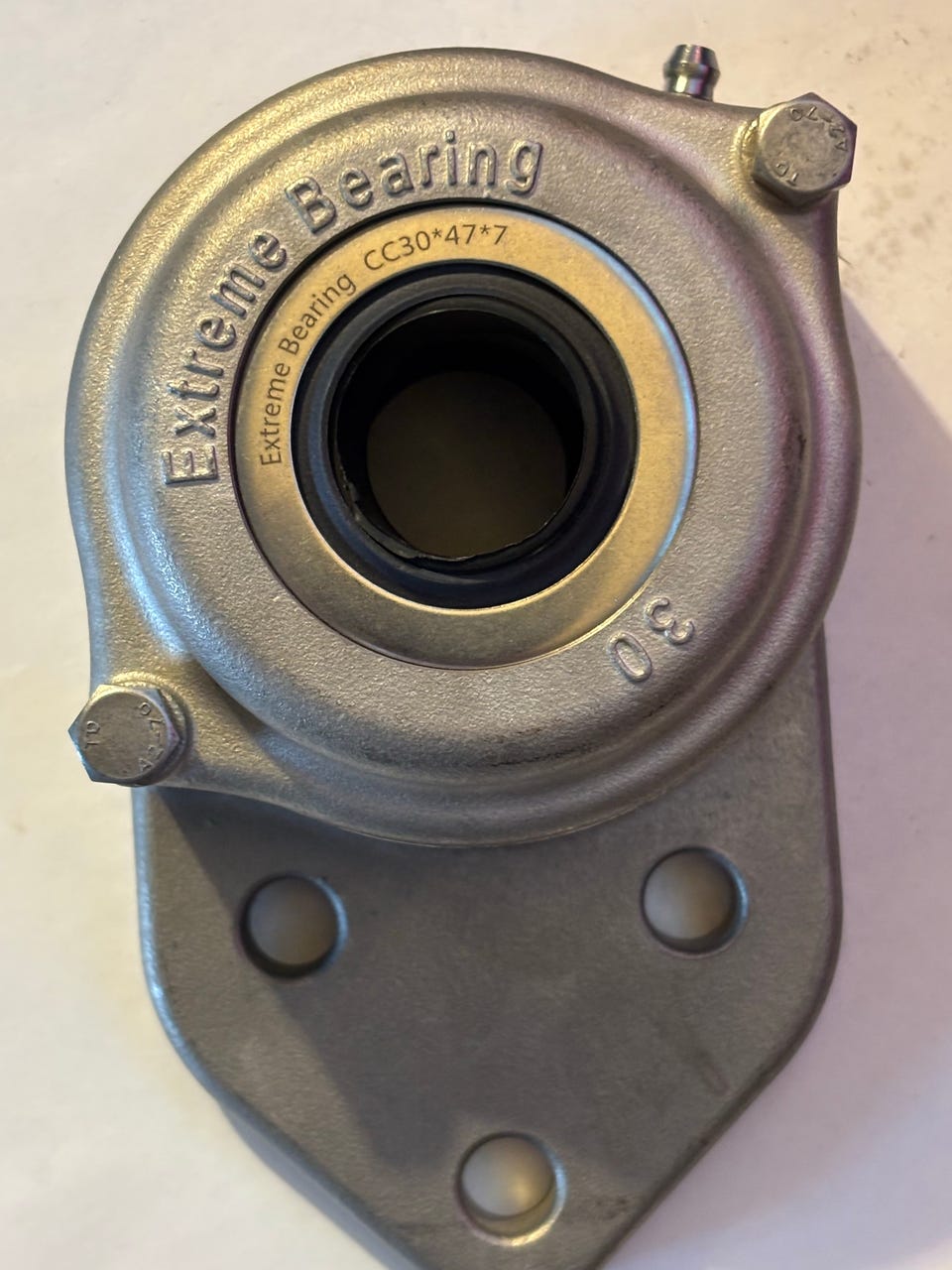

SS316 3 HOLE FLANGED UNIT 030 WITH DOUBLE ROW SPHERICAL ROLLER BEARING
SKU: EXLT030-AS-CC

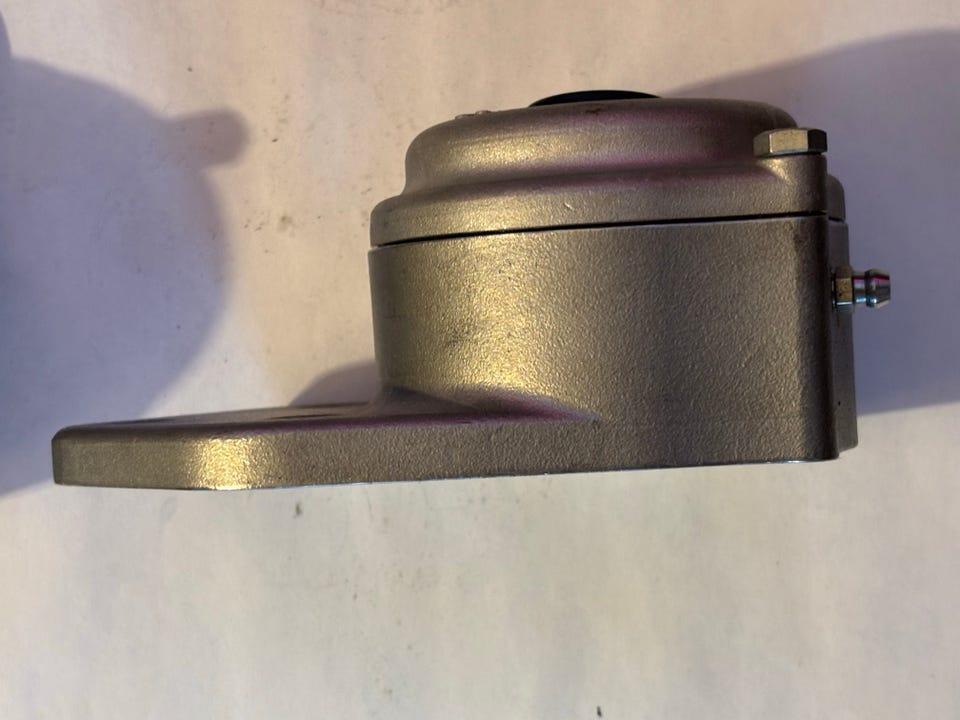

The housing is made of durable 316 stainless steel, housing a self-aligning spherical roller bearing. The sealing protects against dust, dirt, and water, while retaining lubrication, reducing friction, and extending bearing life—ensuring reliable performance in demanding environments.
The Extreme Bearing CC30*47*7 typically refers to a specialized rotary shaft seal designed for extreme environments, often used in conjunction with high-performance bearing units. While the core dimensions are 30mm (ID) x 47mm (OD) x 7mm (Width), the "CC" designation indicates specific high-resistance properties.
Extreme Bearing
CC30*47*7
SHAFT DIAMETER: 30mm (1 2/11")
BEARING TYPE: Spherical Roller Bearing with Adapter Sleeve

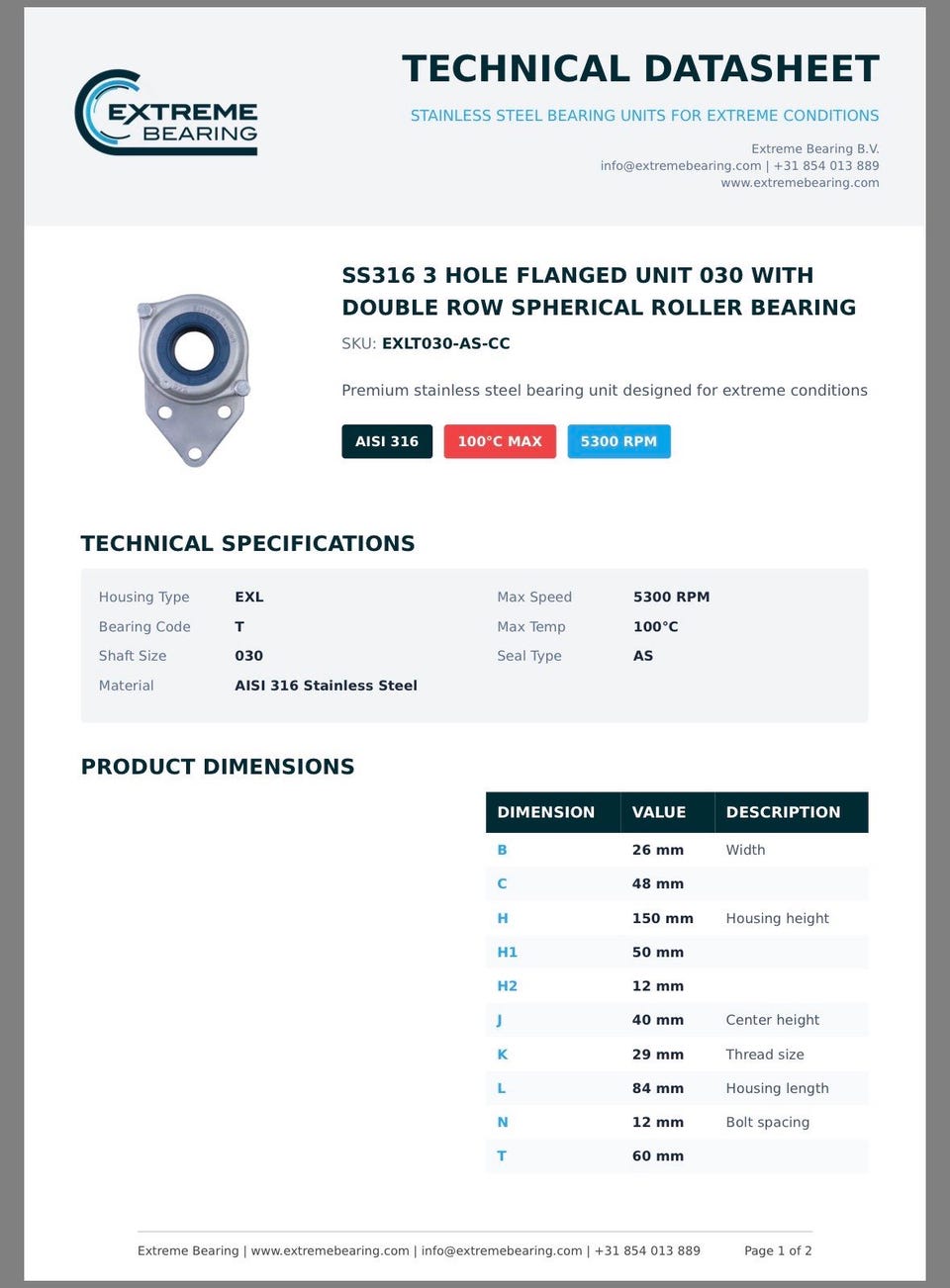

DIMENSION VALUES
Dimension Value Description
d1 30mm (1.18") Shaft diameter (housing/input side)
D 30mm (1.18") Shaft diameter (cover/output side)
B 26mm (1.02") Distance from base to bearing center
C 48mm (1.89") Center height (shaft to base)
H 150mm (5.91") Total housing height
H1 50mm (1.97") Height to mounting surface
H2 12mm (0.47") Height to top surface
J 40mm (1.57") Mounting pitch
K 29mm (1.14") Key slot depth
L 84mm (3.31") Overall housing length
N 12mm (0.47") Bolt hole diameter
T 60mm (2.36") Total housing width
Housing Seal AS - Ø30mm (1.18") × Ø47mm (1.85") × 7mm (0.28")

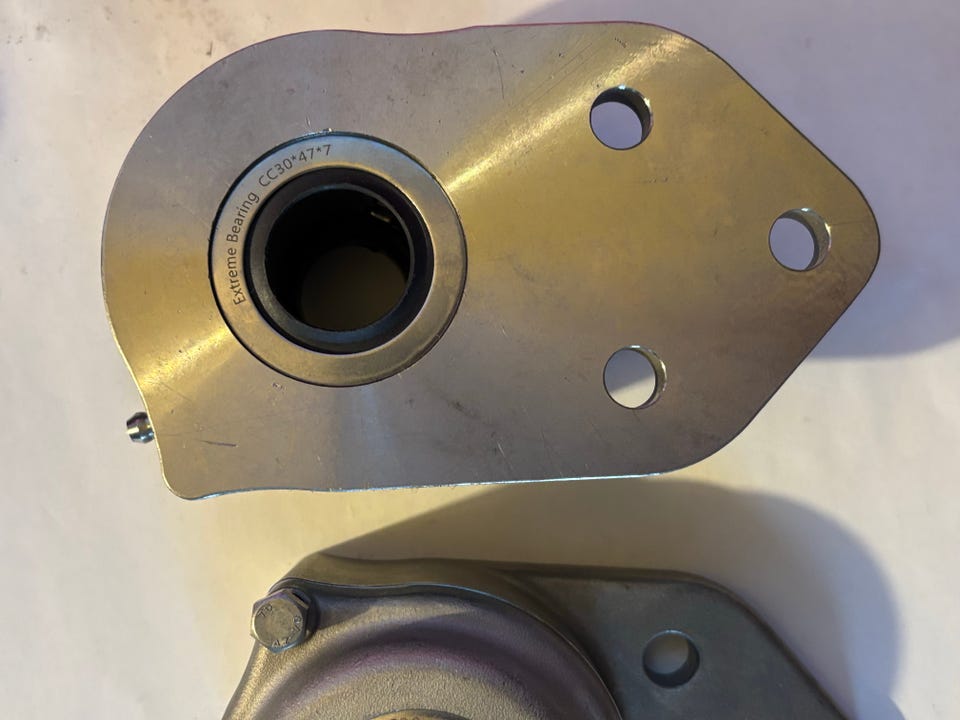

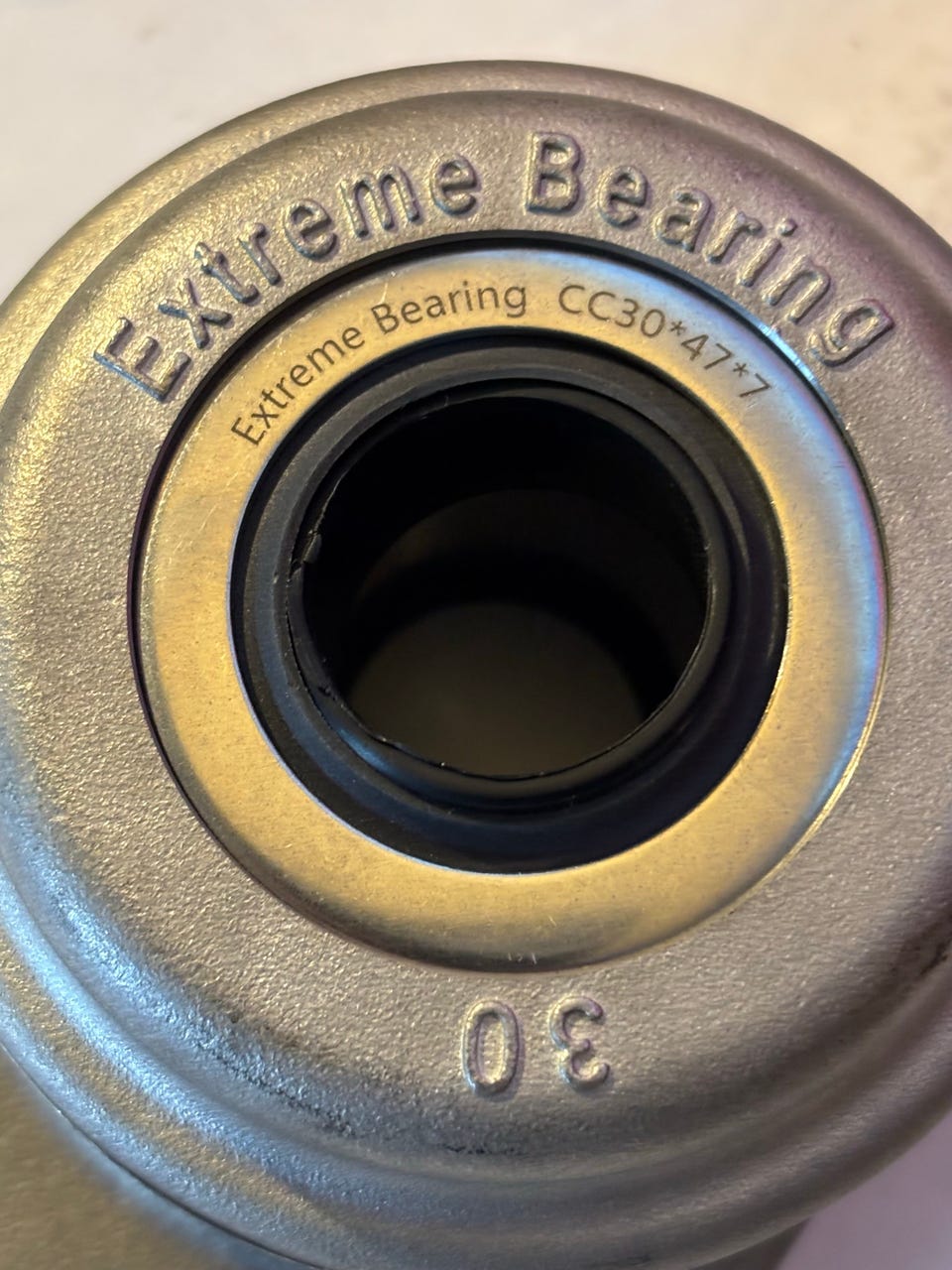

Cover Seal CC - Ø30mm (1.18") × Ø47mm (1.85") × 7mm (0.28")
Product Details.:
Extreme Bearing CC30*47*7
Mål.: 000X000X000 mm
Vægt.: 1,824 kg
Typ: Extreme Bearing
Modell: CC30*47*7

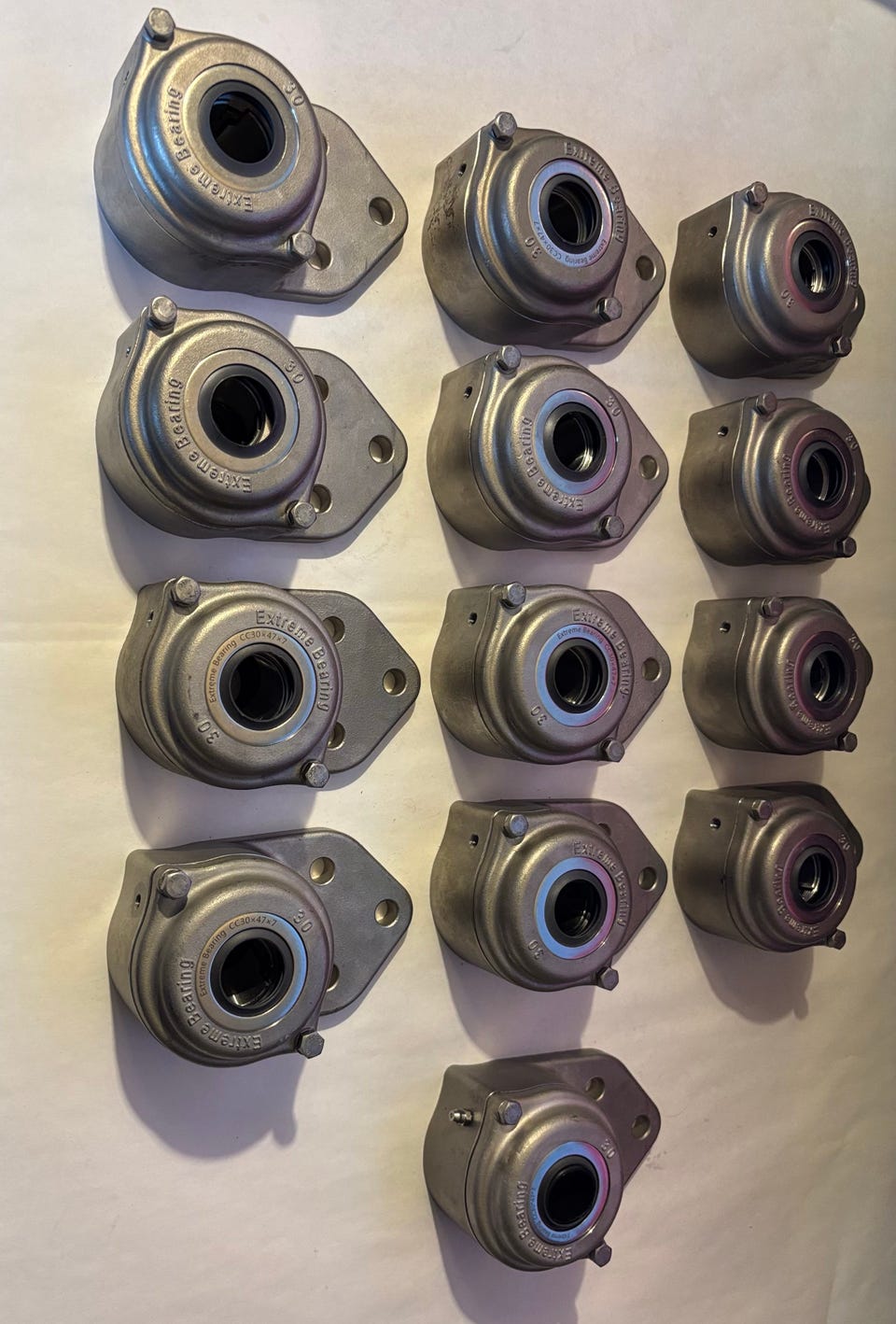

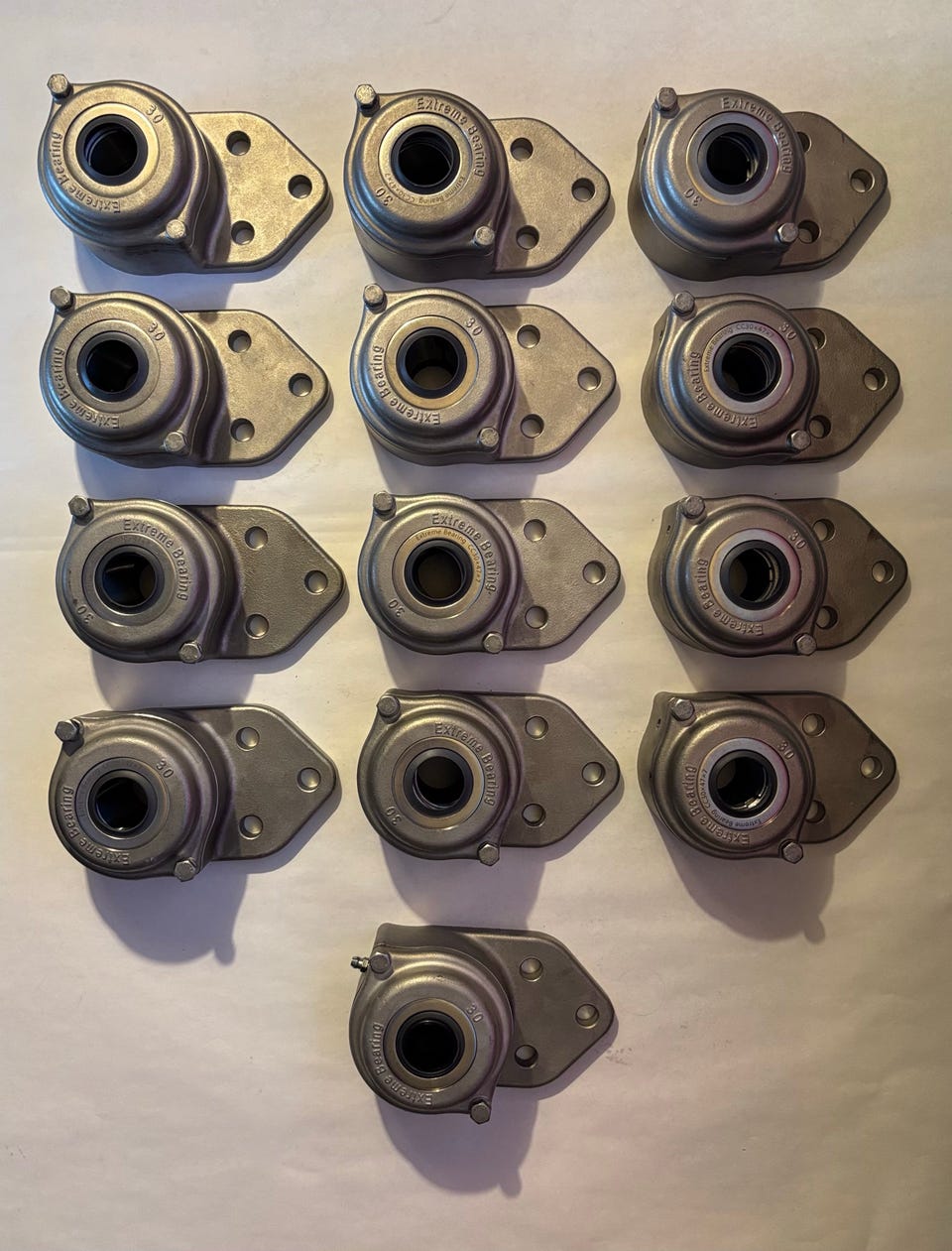

QTY. 13 pcs
Made in Holland 🇳🇱
Til prodeucentens hjemmeside
https://www.extremebearing.com/product/exlt030-as-cc
Shipping Info:
Ship weight (kg) 1.824
Ship height (cm) 15.00
Ship length (cm) 9.00
Ship width (cm) 8.00
Vejl. Pris 3.406,00 DKK eks. moms
Helt ny, (Ingen prismærke)
13 stk. - 6.500 kr. (500 kr. pr. stk.)
1 stk. - 700 kr.
