Taper Bushes 3030-50 bøsning 50 mm
Til salg
Fiks færdig
175 kr.
Fragt fra 29,99 kr. + Tryg betaling 15 kr.
Tryg handel med Fiks færdig
Fiks færdig er DBA's nye betalings- og fragttjeneste. Efter levering har du 24 timer til at kontrollere varen, før pengene udbetales til sælgeren.
Varebeskrivelse
Stand: Helt ny - uåbnet/med prismærke

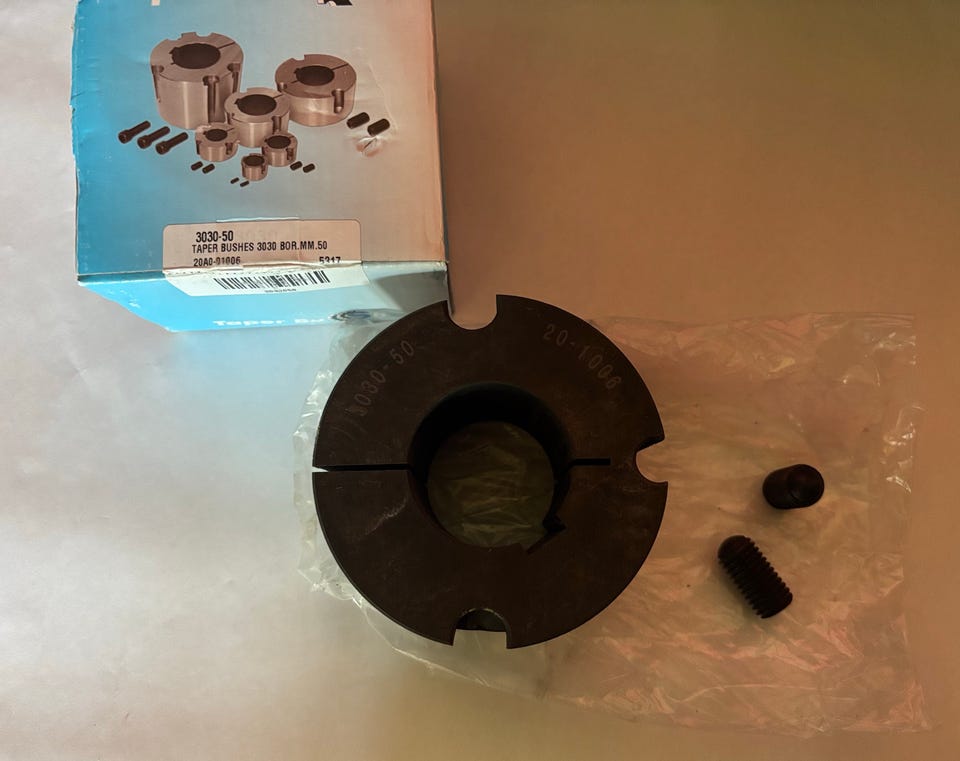

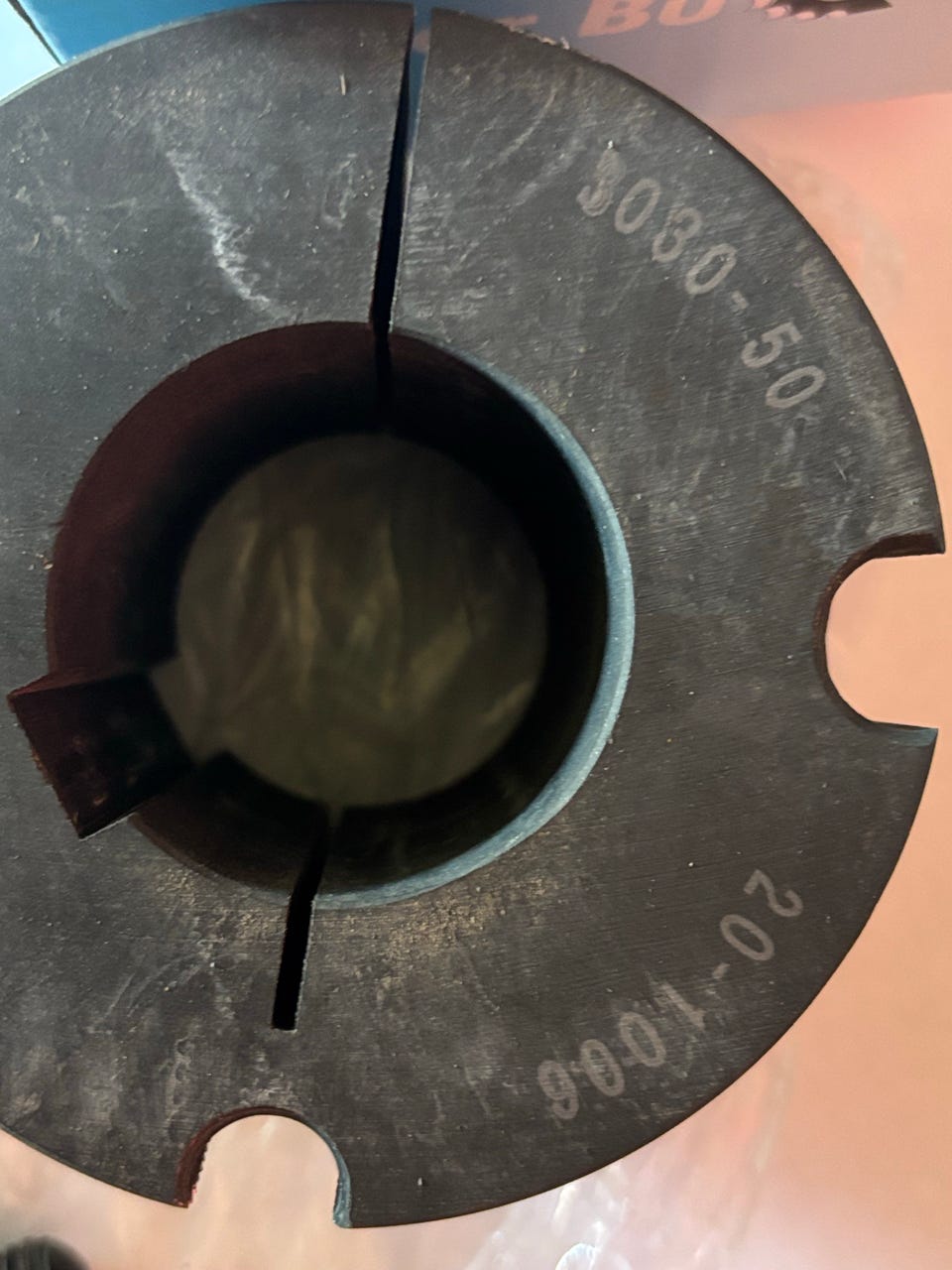

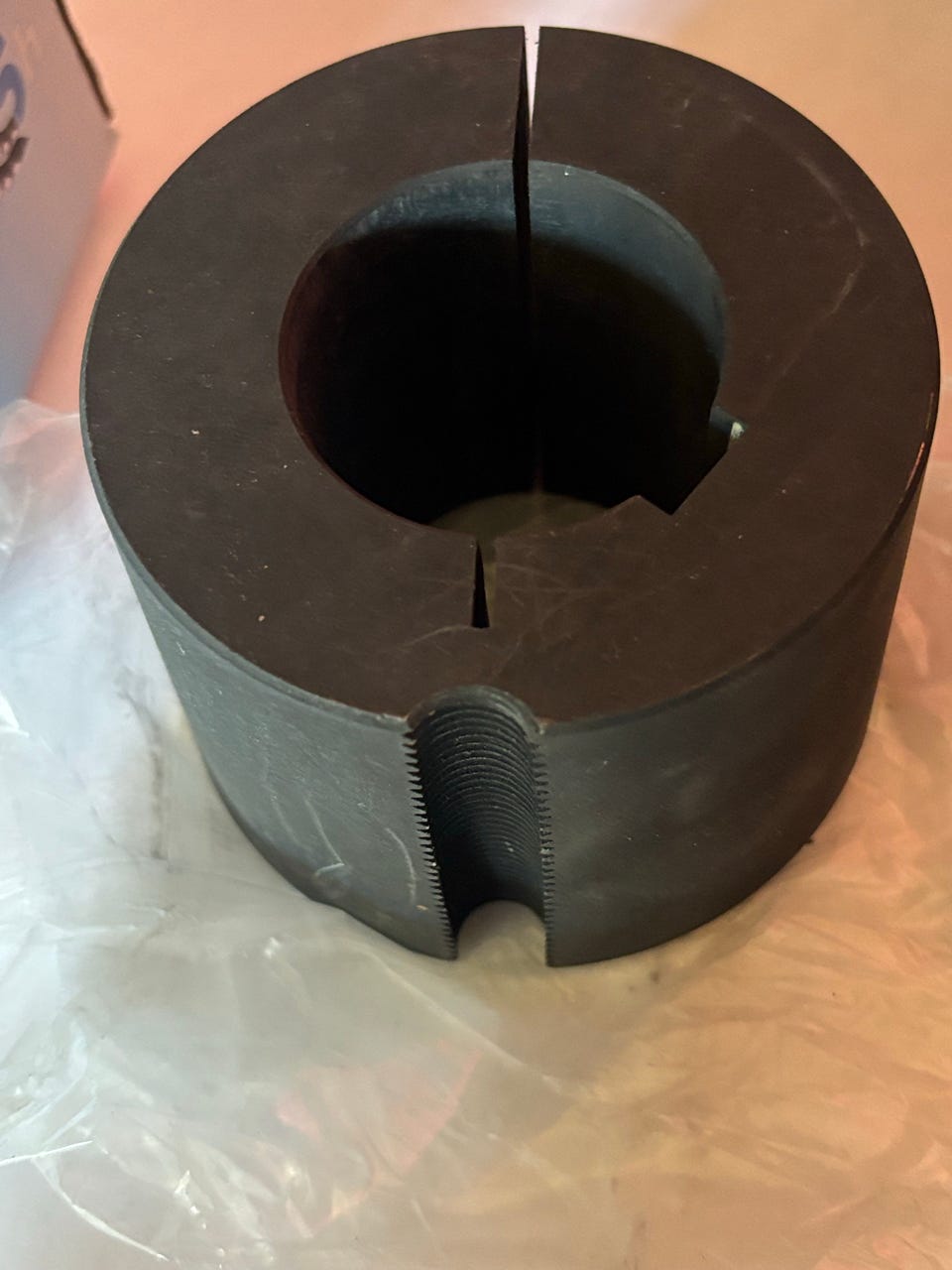

Taper Bushes 3030-50 bøsning med konisk udformning og boringsdiameter på 50 mm. Anvendes typisk til montering af remskiver, tandhjul eller andre maskinkomponenter på aksler. Leveres med tilhørende fastgørelsesskruer som vist på billederne.

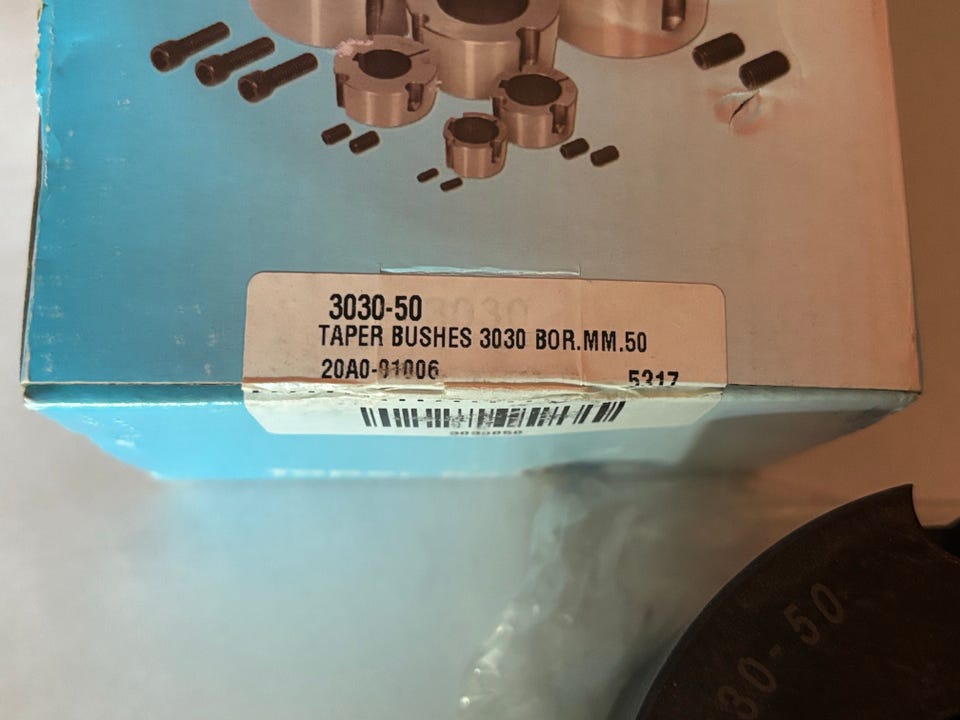

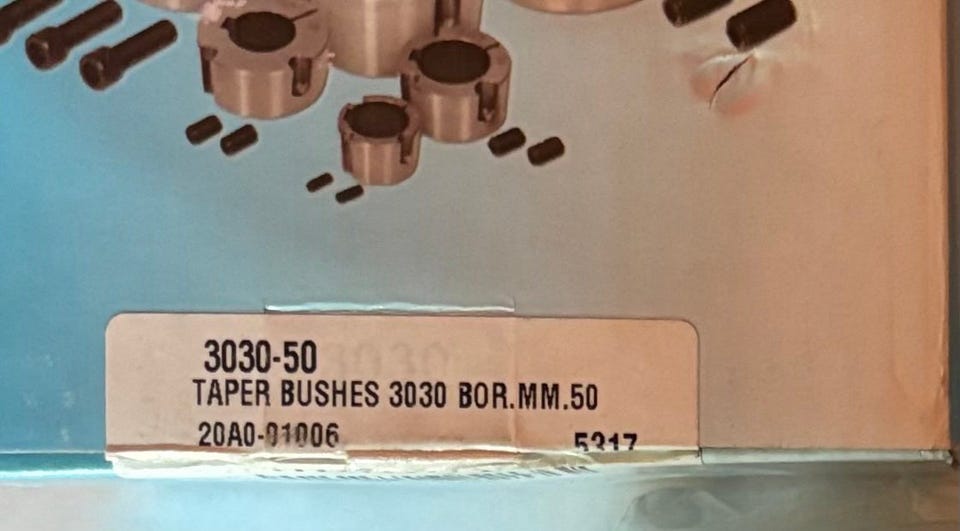

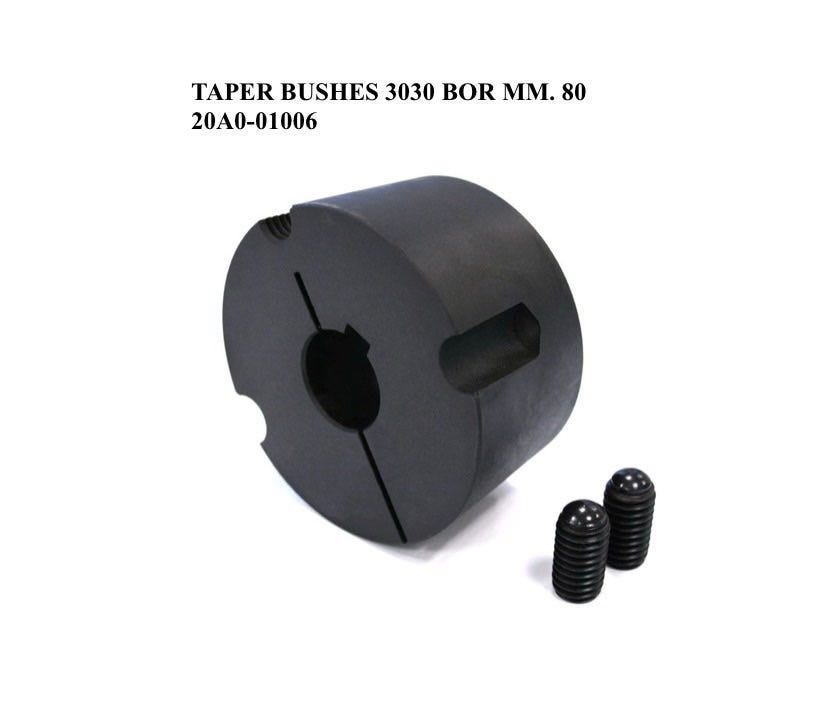

TAPER BUSHES 3030 BOR MM. 80
20A0-01006
3030 Taper bushing
Product data
Inner diameter: 50 mm
Supplier item number. 303050
Taper bushing (conical bushing) for mounting of, for example, V-belt pulleys, timing pulleys, and sprockets. Available in a series with metric bores and a series for imperial measurements. Quick and easy! Each bushing is supplied including screws for mounting. See link to datasheet for dimensions and overview of sizes.
tekniske oplysninger
Referencer: 3030-50
LOGISTIK, VÆGT. 3 kg.
KLEMBØSNING. 3030
Designation Taperbøsning
Bore (mm) 50
Transmissible torque (Nm) 2,710
Bolt size 5/8” x 1”1/4
Outer diameter (D1) (mm) 108
Profile type 1
Dimension (S) 76.20
Screw tightening torque (Nm) 90
Tarifnumber 84839081
Designation Taper lock
TB 3030-50
Taper Lock Bush Description.
TB 3030-50 is a standard Taper Lock bush intended for fastening pulleys, wheels, shaft couplings and other components to shafts. It is produced from grey cast iron.
Taper Lock bushes have a conical outer surface and a cylindrical inner bore with H7 tolerance including a standardized keyway.. Once fixed, the component is capable of transmitting torque while being secured against axial displacement.
Typical Applications
The TB 3030 Taper Lock bushes are used in a variety of industrial applications.
They are used to fix standard and non-standard V-belt, timing and flat pulleys, sprockets, TB hubs, shaft couplings and other components.
Materials
Gray cast iron GG 20.
Vægt (inkl. emballage): 3.053 kg
Vejl. Pris 666 kr.
Helt ny, (Ingen prismærke)
1 stk. - 175 kr.
