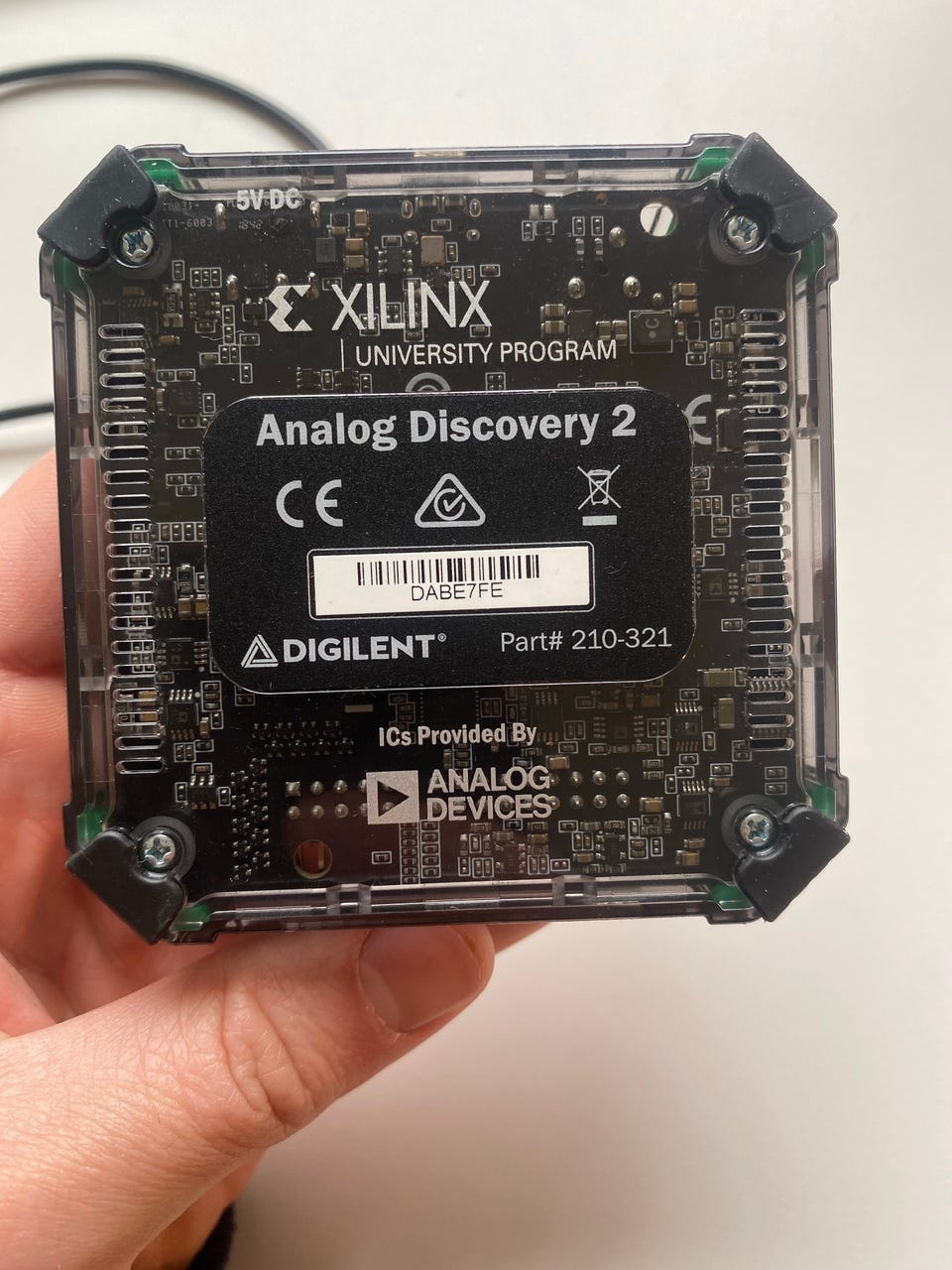

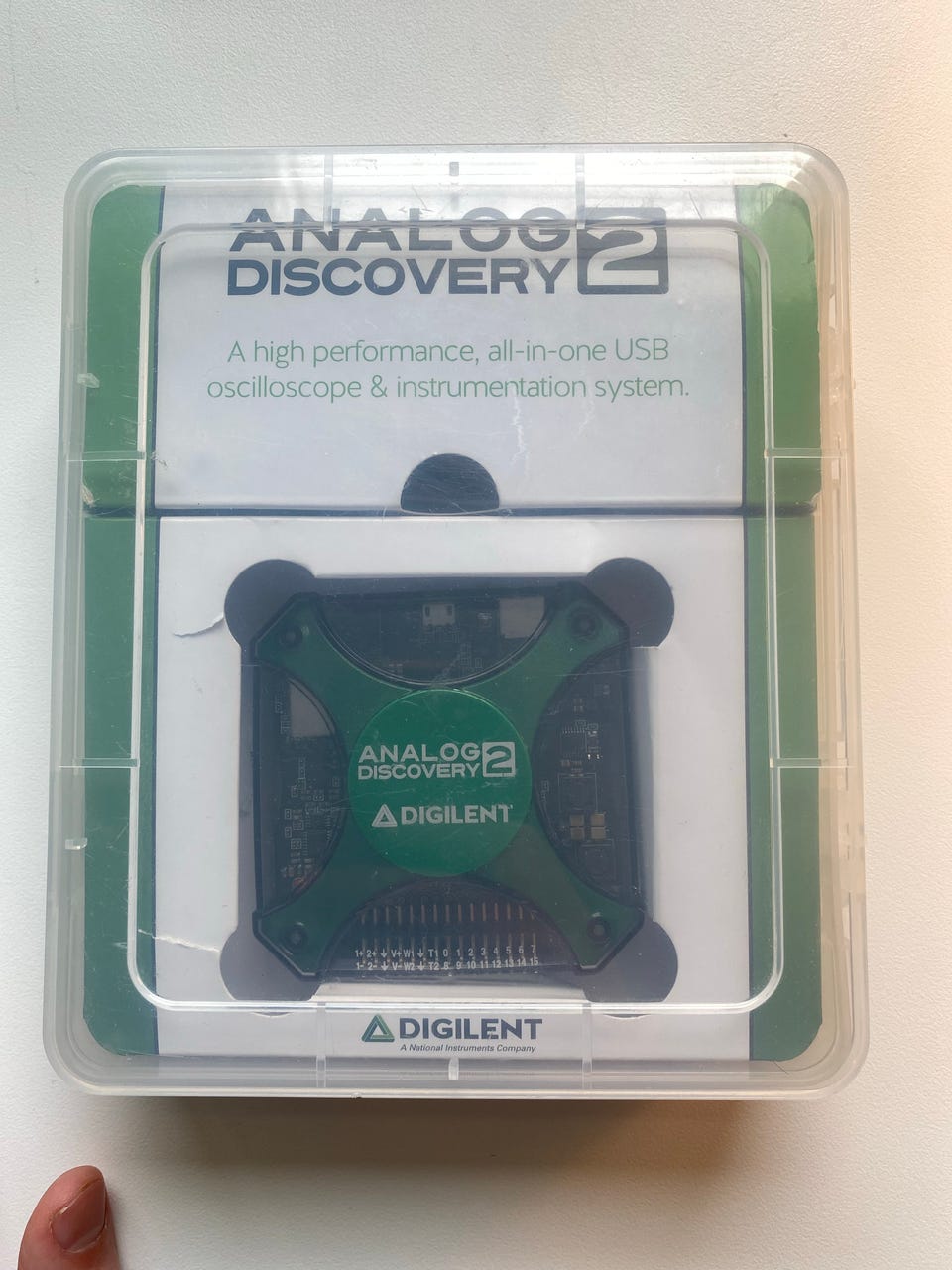

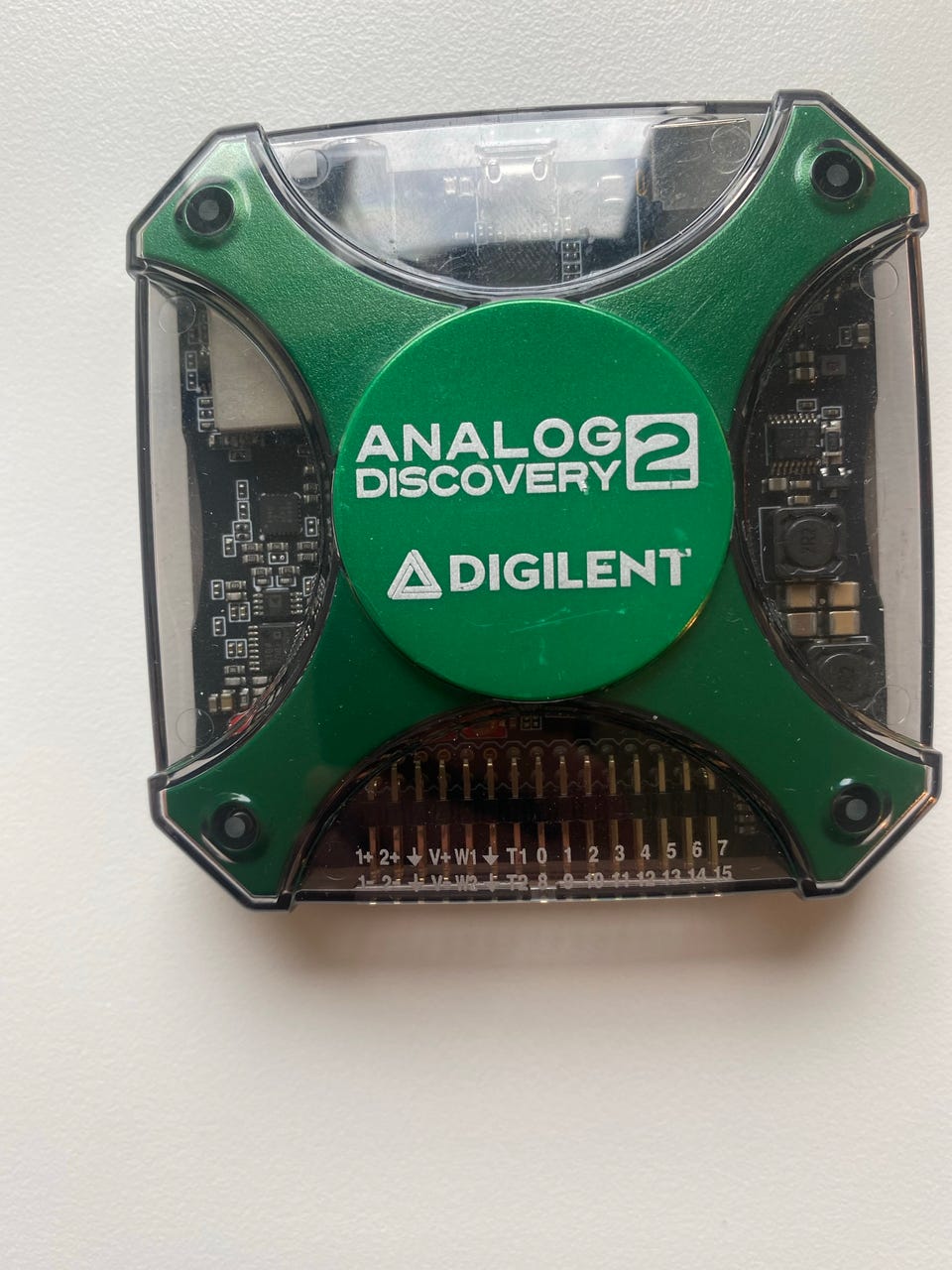

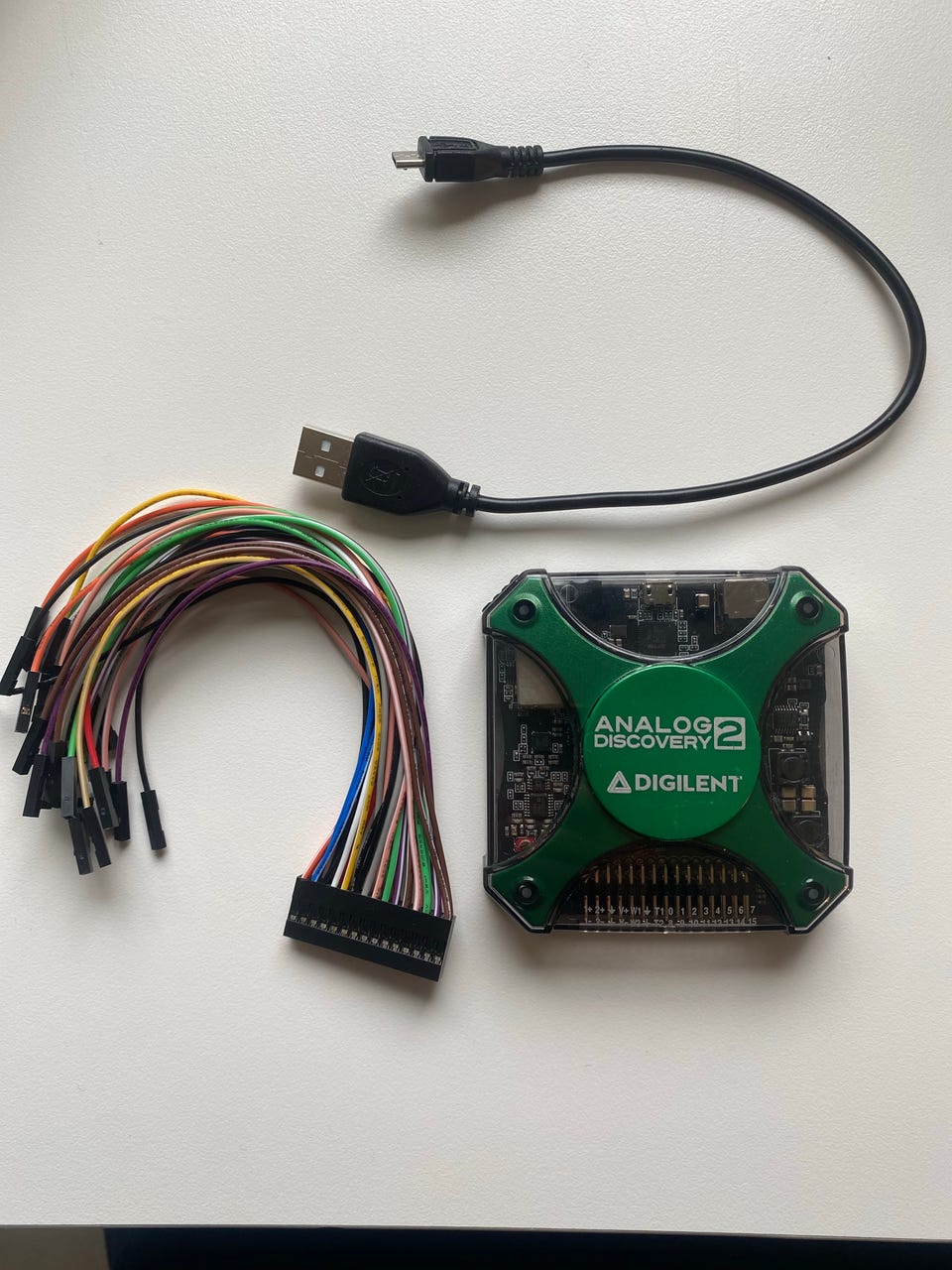

Analog Discovery 2
Til salg
Fiks færdig
1.200 kr.
Fragt fra 29,99 kr. + Tryg betaling 46 kr.
Tryg handel med Fiks færdig
Fiks færdig er DBA's nye betalings- og fragttjeneste. Efter levering har du 24 timer til at kontrollere varen, før pengene udbetales til sælgeren.
Varebeskrivelse
Stand: Brugt - men i god stand
Analog Discovery 2: 100MS/s USB Oscilloscope, Logic Analyzer and Variable Power Supply
Features:
Two-channel USB digital oscilloscope (1 MΩ, ±25 V, differential, 14-bit, 100 MS/s, 30 MHz+*)
Two-channel arbitrary waveform generator (±5 V, 14-bit, 100 MS/s, 12 MHz+ bandwidth*)
16-channel digital logic analyzer (3.3 V CMOS and 1.8 V or 5 V tolerant, 100 MS/s)
16-channel pattern generator (3.3 V CMOS, 100 MS/s)
16-channel virtual digital I/O including buttons, switches, displays, and LEDs, which is perfect for logic training applications
Two input/output digital trigger signals for linking multiple instruments or providing an external trigger source
Two channel voltmeter
Network Analyzer with Bode, Nyquist, Nichols transfer diagrams of a circuit. The Network Analyzer has a range of 1 Hz to 10 MHz
Spectrum Analyzer capable of power spectrum and spectral measurements (noise floor, SFDR, SNR, THD, etc.)
Data Logger with exportable data and plot functionality
Impedance Analyzer for analyzing capacitive and inductive elements
Curve Tracer to analyze characteristics of discrete semiconductors such as diodes and transistors
Protocol Analyzer with SPI, I2C, CAN, AVR, and UART
Two programmable power supplies (0.5 V to 5 V , -0.5 V to -5 V). The maximum available output current and power depend on the Analog Discovery 2 powering choice.
Stereo audio amplifier to drive external headphones or speakers with replicated Arbitrary Waveform Generator signals
An available Software Development Kit for programming with Python and C++, and a toolkit for programming with LabVIEW.
MATLAB support for the Data Acquisition Toolbox
Product Compliance:
HTC: 8471809000
ECCN: 3A992.a
*Note: To achieve maximum bandwidth, use of the BNC Adapter for Analog Discovery is required.
Meget god stand og virker perfekt!
