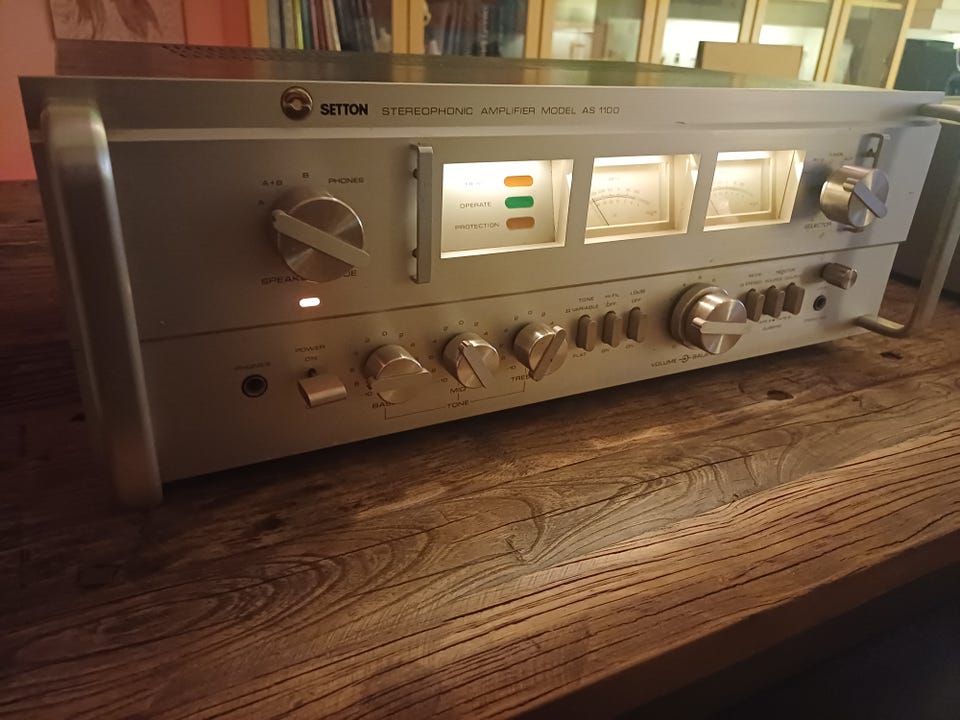

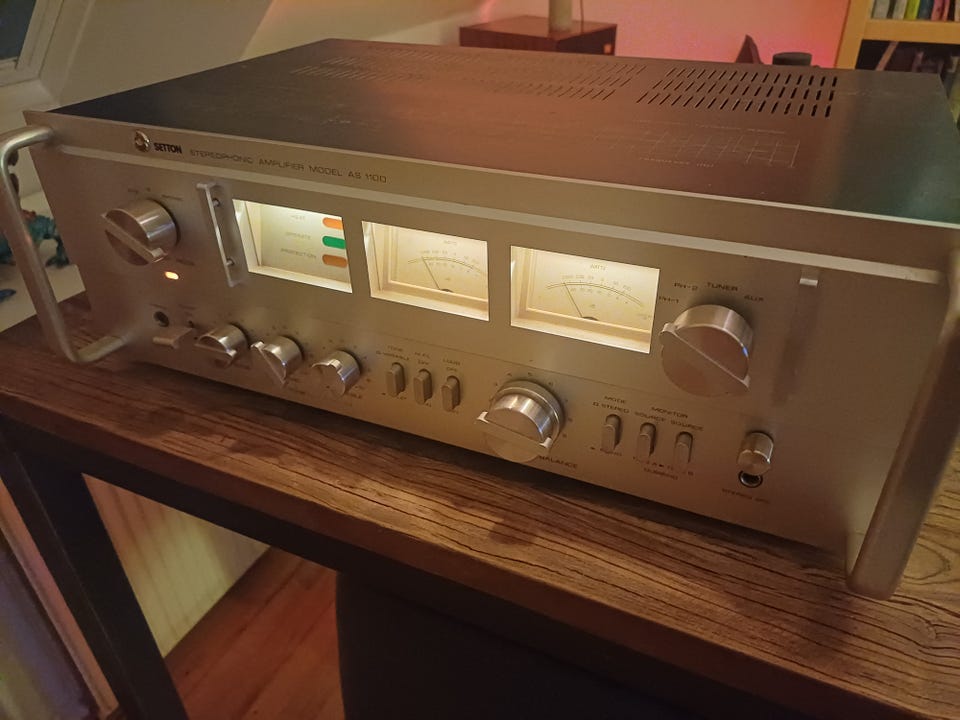

Setton AS - 1100
Til salg
4.000 kr.
Bed sælgeren om at sende med Fiks færdig! Det er trygt, hurtigt, og varen vil blive sendt til dig. Læs mere
Varebeskrivelse
Sjælden forstærker fra Setton.
Data
General
Manufacturer: Setton
Model: AS-1100
Type: Amplifier
Years of manufacture: 1977 - 1981
Made in: Japan
Color: Front Silver, Cabinet Black
Power consumption: 330 W max.
Dimensions: 500 x 164 x 295 mm (WxHxD)
Weight: approx. 12 kg
Original price approx.: 1'260 DM

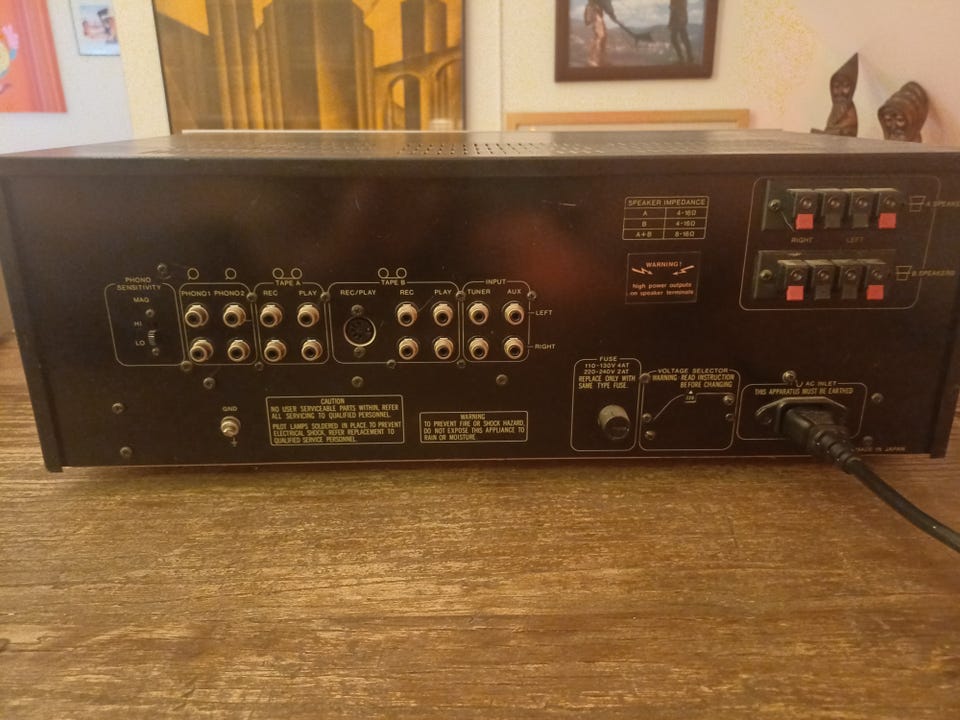

Connections
Number of inputs:
Phono (MM) 1, 2 switchable High: 3.5 mV, max. 220 mV, Low: 7 mV, max. 440 mV.
Microphone: 6 mV, 10 kOhm
Tuner: 150 mV Aux: 150 mV
Tape Play 1, 2: 150 mV
Tape 2 DIN: 150 mV
Number of outputs:
Tape Rec 1, 2: 150 mV
Tape 2 DIN: 30 mV
Headphones: 6.3mm jack plug
2 pairs of loudspeakers
Technical Data
Continuous power (at distortion):
8 Ohm: 2x 40 W (RMS, 20 - 20,000 Hz), 2x 45 W (1 kHz).
4 Ohm: 2x 60 W (1 kHz)
Dynamic power:
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.1%, 0.05% at 1000 Hz
Damping factor: 30 at (1 kHz, 8 Ohm)
Frequency response: 20 - 20,000 Hz
Power bandwidth: 10 - 35,000 Hz
Signal-to-noise ratio:
Phono Low: 70 dB
Phono High: 65 dB
Tuner: 85 dB
AUX: 85 dB
Tape: 85 dB
Stereo Channel Separation:
Tone control:
Bass: ± 12 dB, 50 Hz
Mids: ± 6 dB, 1 kHz
Treble: ± 10 dB, 10 kHz
Loudness: + 12 dB at 50 Hz, + 3.5 dB at 10 kHz
High Filter: - 10 dB at 10 kHz
Low Filter (Subsonic):
Special Features
2 large VU meters
Overload indicator 3-fold, electronic protection circuitry
Microphone mixer, 6.3mm jack plug front panel
Alt virker men den skal renses.
