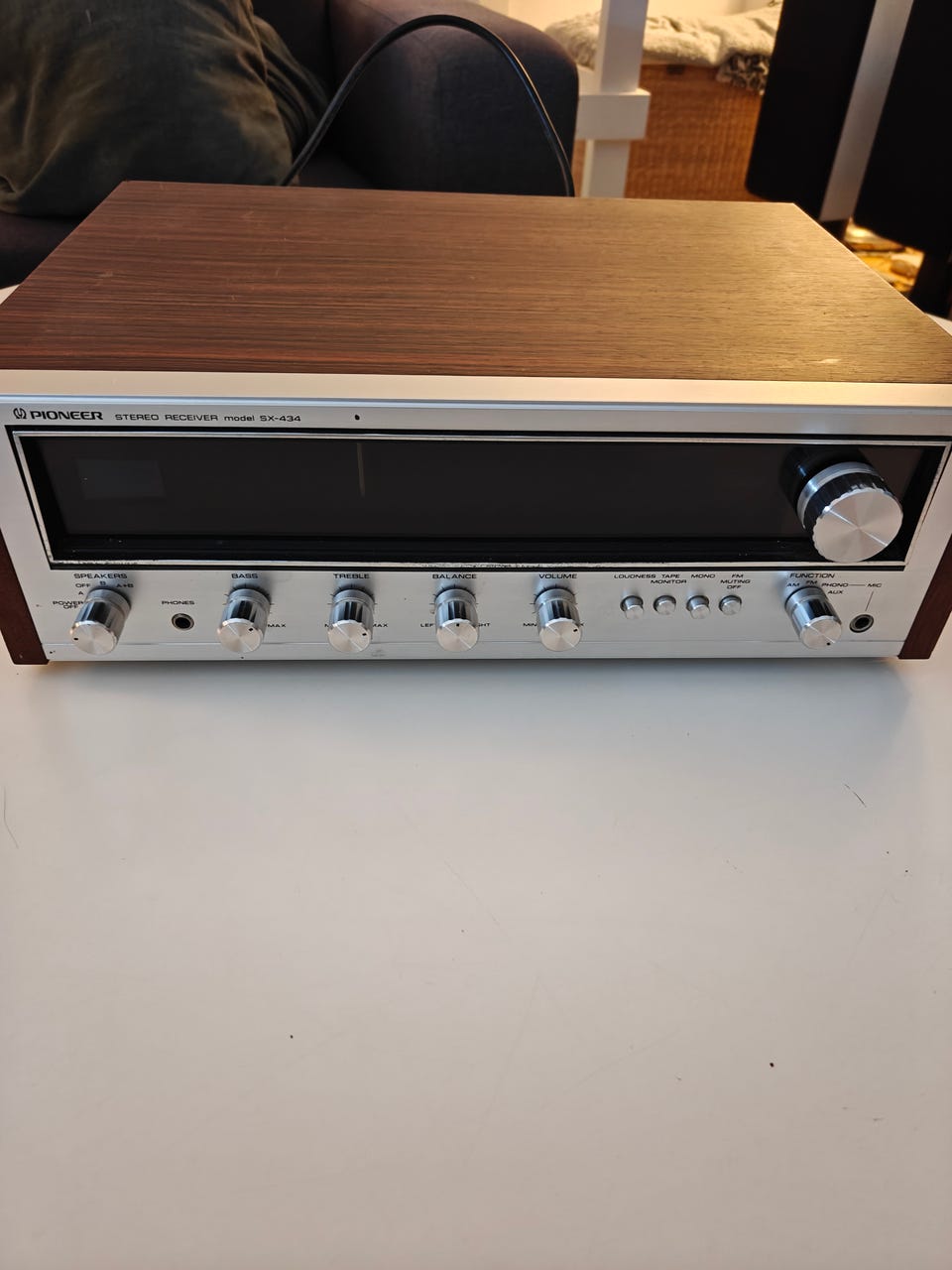

Pioneer sx-434
Til salg
1.399 kr.
Bed sælgeren om at sende med Fiks færdig! Det er trygt, hurtigt, og varen vil blive sendt til dig. Læs mere
Varebeskrivelse
Stand: Brugt - men i god stand
Mærke: Pioneer
Super velholdt reciever fra pioneer.Meget velholdt og alt virker.
Kan høres hvis det ønskes.
Type: Receiver
• Years of manufacture: 1974 - 1976
• Made in: Japan
• Color: front silver, wooden cabinet
• Remote control: no
• Power consumption: 110 W max.
• Dimensions: 430 x 140 x 347 mm (WxHxD)
• Weight: 8.1 kg
• Original price approx.: 250 US-$, 915 DM
Connections
• Number of inputs:Phono MM: 2.5 mV, 50 kOhm, 100 mV max.Microphone (6,3mm jack): 10 mV, 90 kOhmAux: 150 mV, 50 kOhmTape 1, 2 Play: 150 mV, 80 kOhm
Tape Play (DIN): 150 mV, 80 kOhm
• Antenna (FM: 75, 300 ohms, MW: 300 ohms).
• Number of outputs:Tape Rec 1, 2: 150 mV
Tape (DIN): 30 mV, 80 kOhm
• Headphones (6.3mm jack)2 pairs of loudspeakers
Technical Data
Amplifier
• Continuous power (at distortion):8 Ohm: 2x 12 W (RMS, 20 - 20'OOO Hz).4 Ohm: 2x 15 W
• dynamic power:8 Ohm:4 Ohm:
• Total harmonic distortion: < 0.5 %
• Attenuation factor: 40 (8 Ohm, 1 kHz)
• Frequency response:Phono, RIAA: 30 - 15'000 Hz, ± 1 dB
High level: 30 - 25'000 Hz, ± 1 dB
• Signal-to-noise ratio:Phono: 70 dBMicrophone: 65 dBHigh level: 95 dB
• Tone control:Bass: + 9 dB, - 8 dB at 100 HzTreble: + 5 dB, - 7 dB at 10 kHz
• Loudness: + 10 dB at 100 Hz, + 5 dB at 10 kHz
• Subsonic:
• High Filter:
• Mute:
Tuner
• Reception: FM, MW
• Frequencies:FM: 88 - 108 MHzMW: 525 - 1605 kHz
• Input sensitivity:FM: 1.9µV
MW: 15µV
• All other specifications for VHF
• Frequency response: 20 - 15'000 Hz, + 0,2 dB, - 2 dB
• Distortion factor:Mono: < 0.2 %
Stereo: < 0.4
• Signal-to-noise ratio:Mono: 70 dB
Stereo: 65 dB
• Channel separation: 40 dB (1 kHz)
• selectivity: 60 dB
• Co-wave selection: 1.0 dB
• Spurious wave selection: 75 dB
• Image frequency attenuation: 60 dB
• IF attenuation: 90 dB
• AM suppression: 50 dB
Special Features
• Microphone front input (6.3mm jack
