SKF F4BSS 30M-TPSS
(1/12)
SKF F4BSS 30M-TPSS Lejer
Til salg
Fiks færdig
1.000 kr.
Fragt fra 59,99 kr. + Tryg betaling 40 kr.
Tryg handel med Fiks færdig
Fiks færdig er DBA's nye betalings- og fragttjeneste. Efter levering har du 24 timer til at kontrollere varen, før pengene udbetales til sælgeren.
Varebeskrivelse
Stand: Helt ny - uåbnet/med prismærke
SKF FIRKANTET FLANGEKUGLELEJE 30M
F4BSS 30 M-TBSS ((Ingen prismærke))

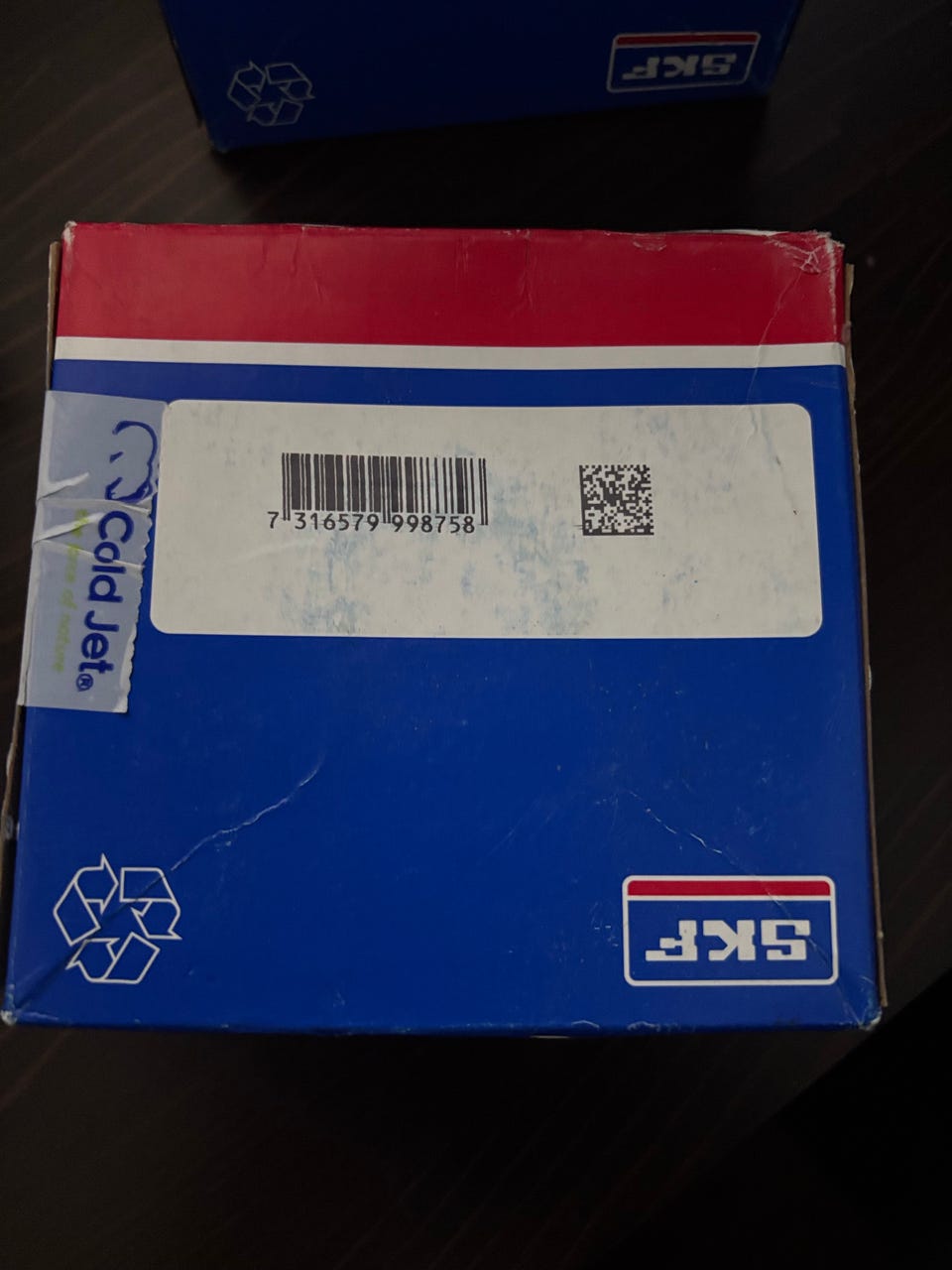

Original Serial number 7316579998758

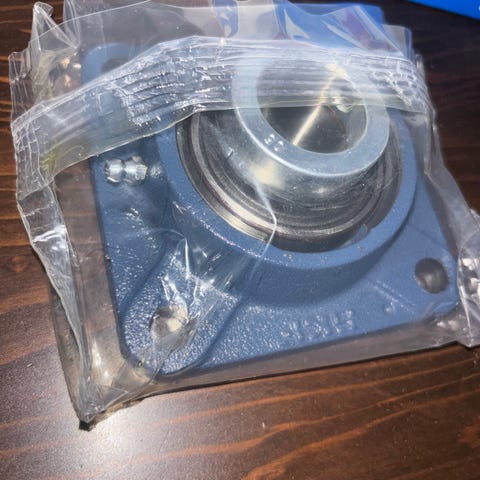

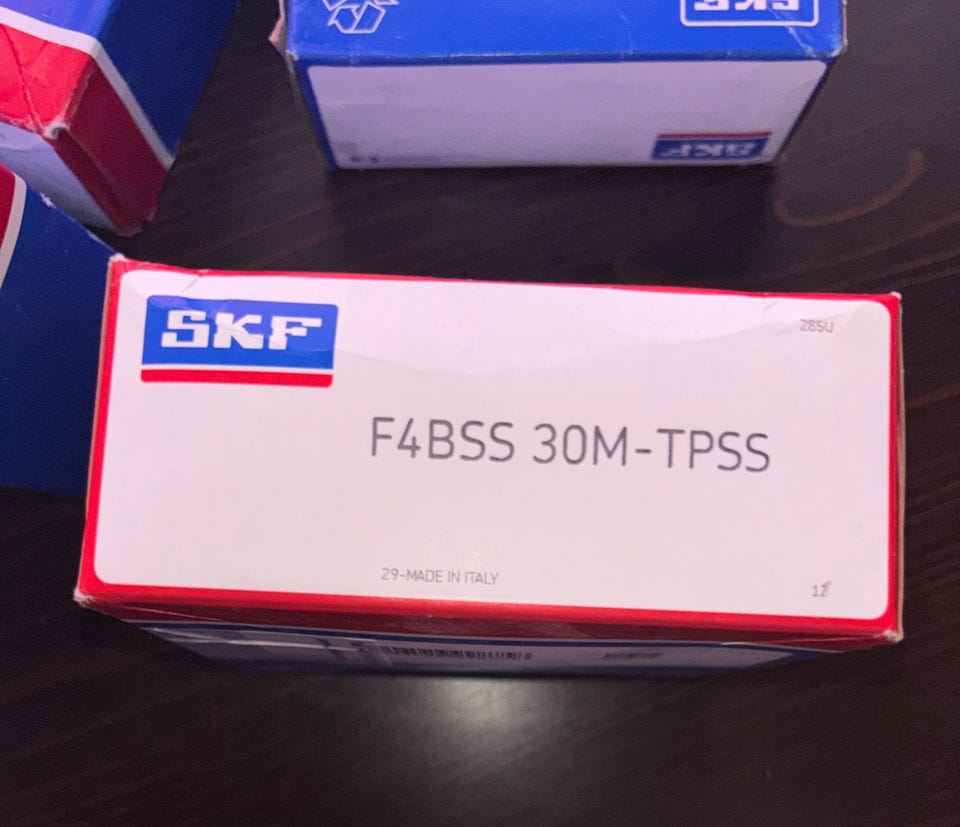

SKF F4BSS 30M-TPSS lejer i original emballage. Produktet er beregnet til brug i maskiner og mekaniske systemer, hvor præcisionslejer er nødvendige.
Firkantet flangekuglelejeenhed med gevindskrulås, hus i rustfrit stål
SKF F4BSS 30M-TPSS

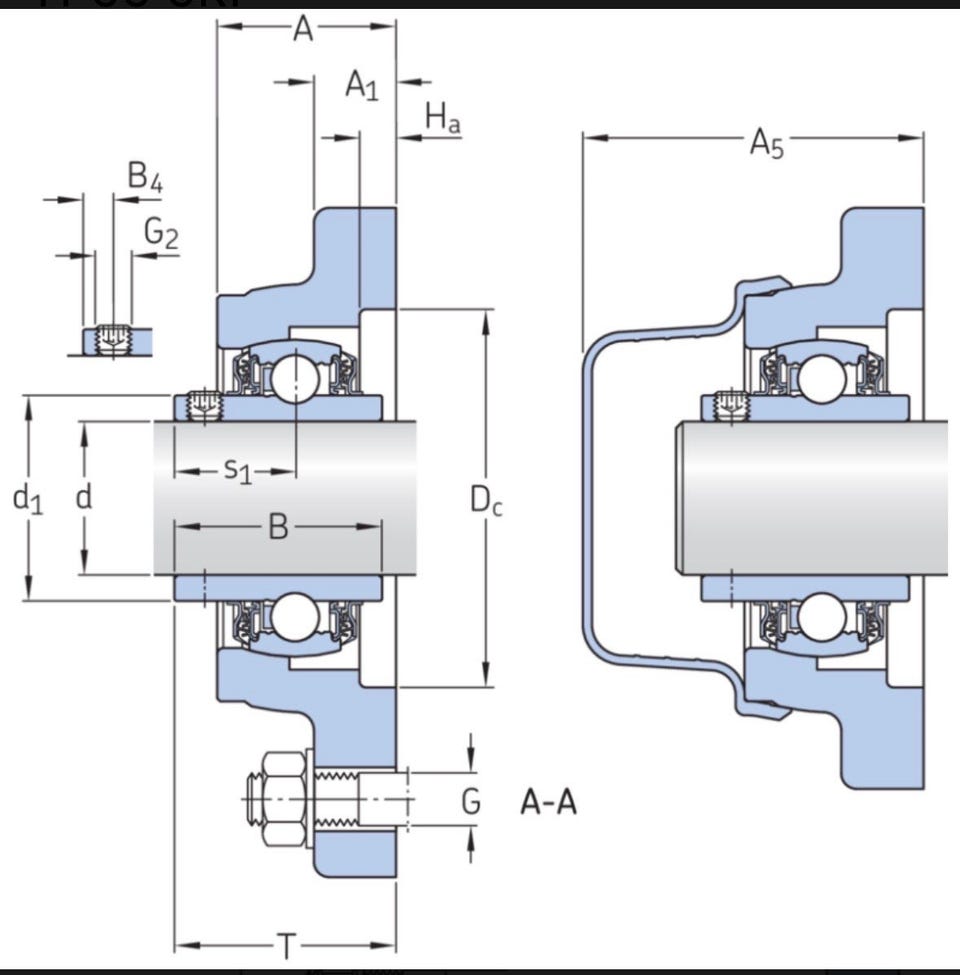

Specifications
Width 38.10mm
Inner Diameter 30mm
Weight 1.45Kg
Bore diameter d 30 mm
Overall width A 34.30 mm
Standout of end cover A5 62.40 mm
Distance from locking device side face to thread centre B4 5 mm
Depth of housing centering recess Ha 6 mm
Overall length L 110 mm
Distance from locking device side face to raceway centre s1 22.20 mm
outer diameter inner ring da ≈39.7
Flange width A 12.50 mm
Width of inner ring B 38.10 mm
Diameter Diameter of housing centering recessof backseal groove Dc 72 mm
Distance between attachment bolts J 82.60 mm
Diameter of attachment bolt hole N 12 mm
Overall unit width T 42 mm
Square flanged ball bearing unit with set screw locking, stainless steel housing
These square flanged ball bearing units are designed especially for the food and beverage industries. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a stainless steel housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
Chemical resistant
Strong
Lubricated for life with a non-toxic food grade grease
Designed for high temperatures and speeds

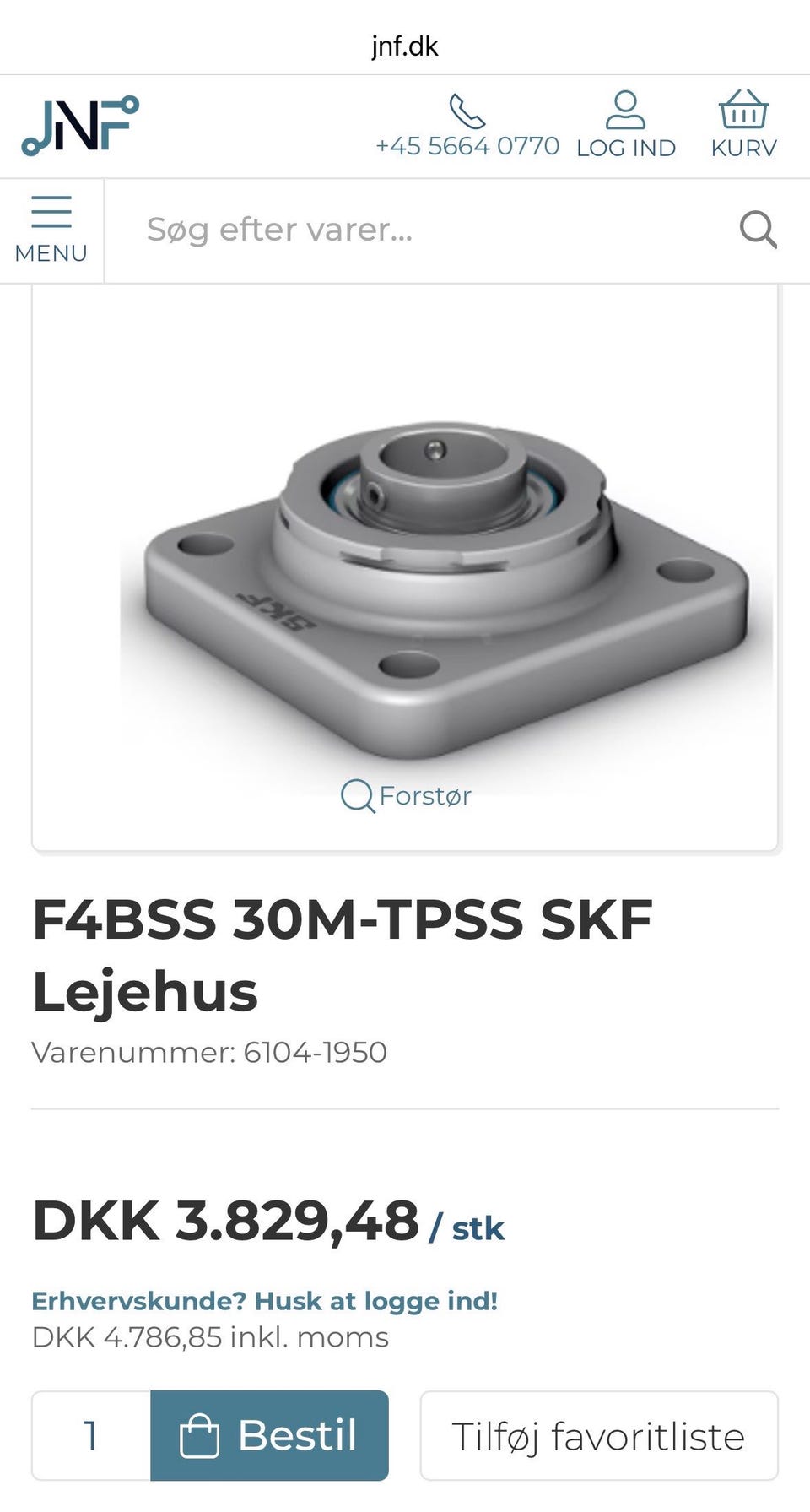

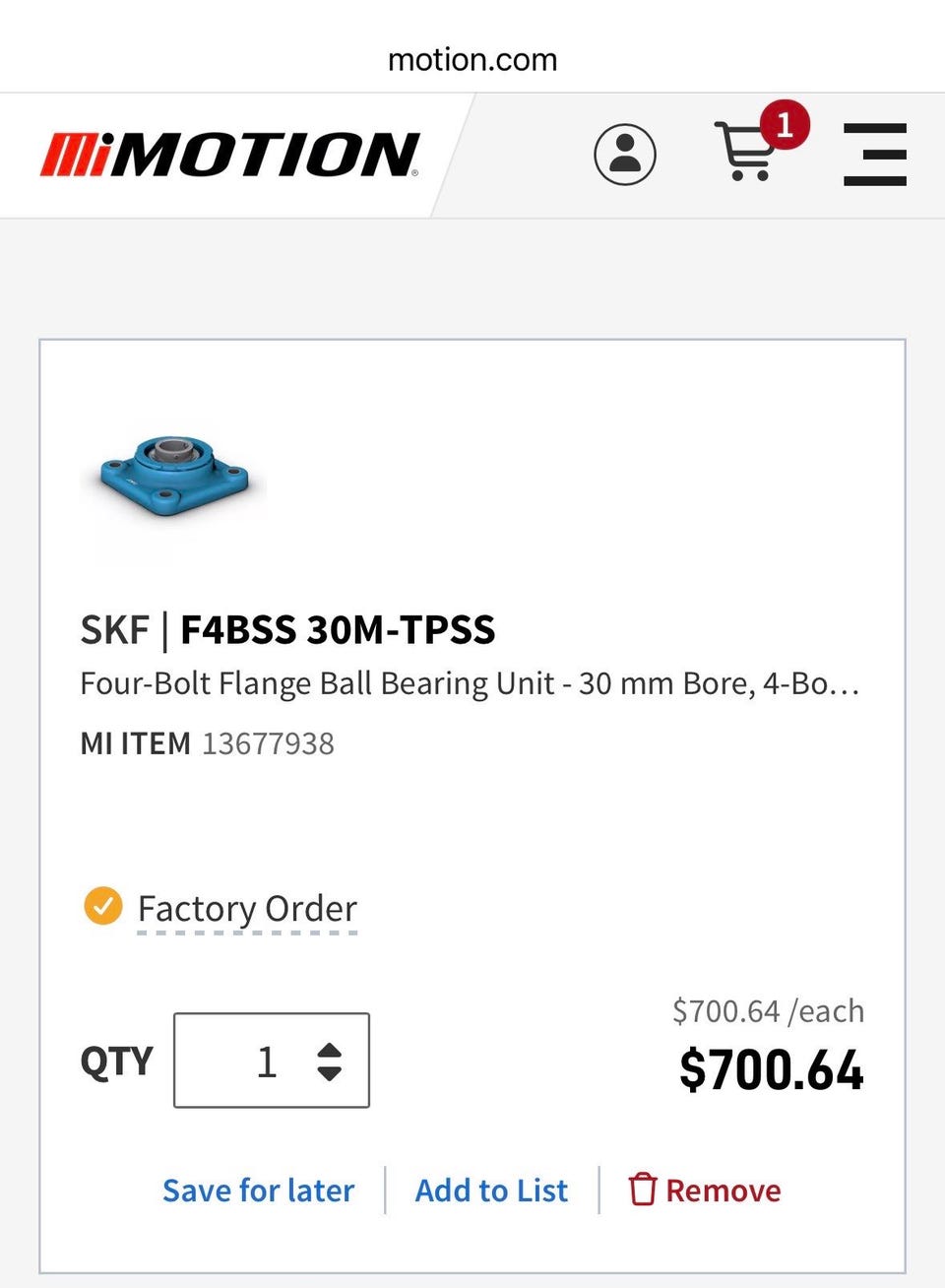

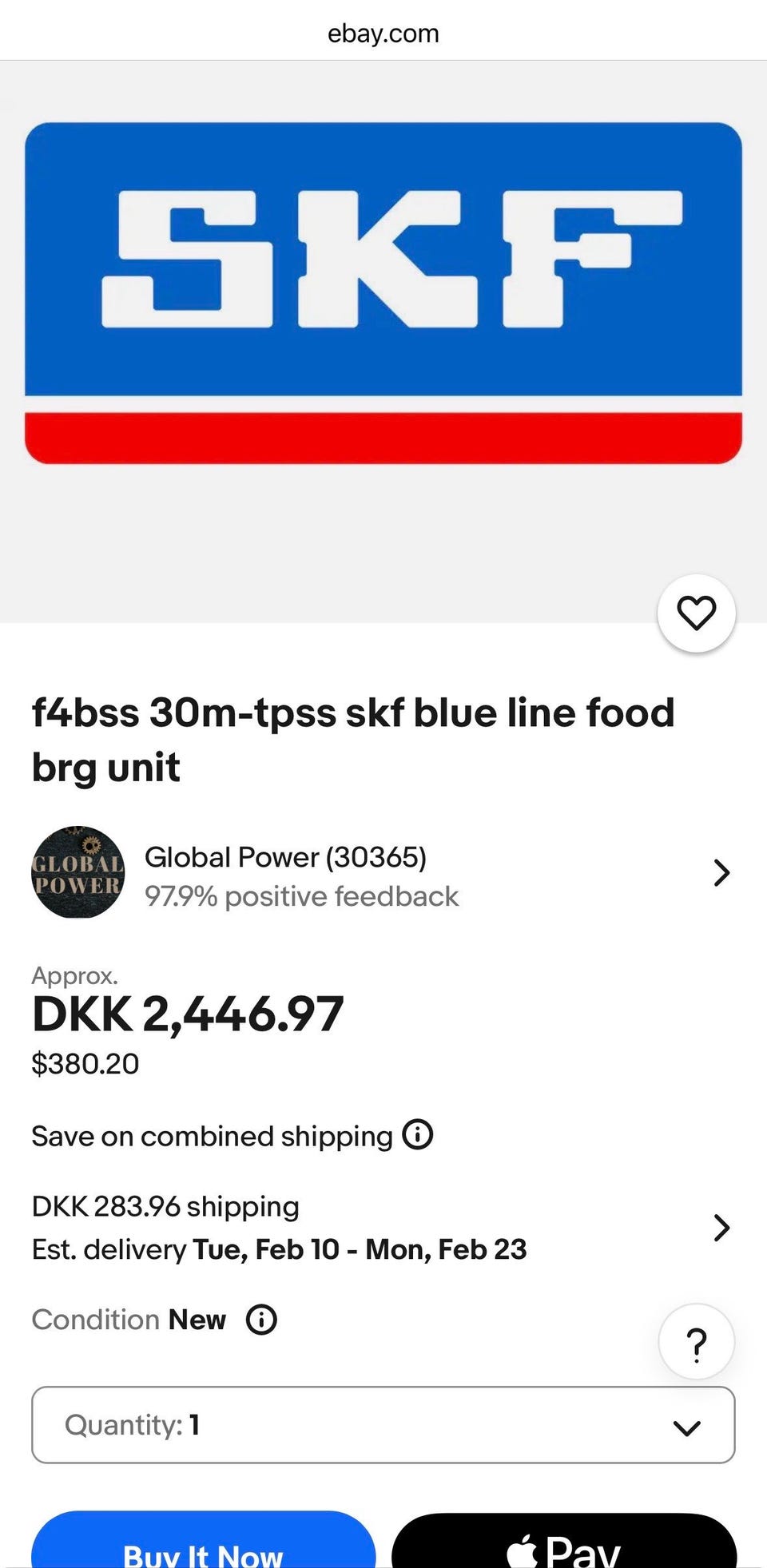

Den billigste pris på markedet er 2.685,44 kr. og 4.963,02 kr pr. Stk
Indsend dit bud eller din forespørgsel.

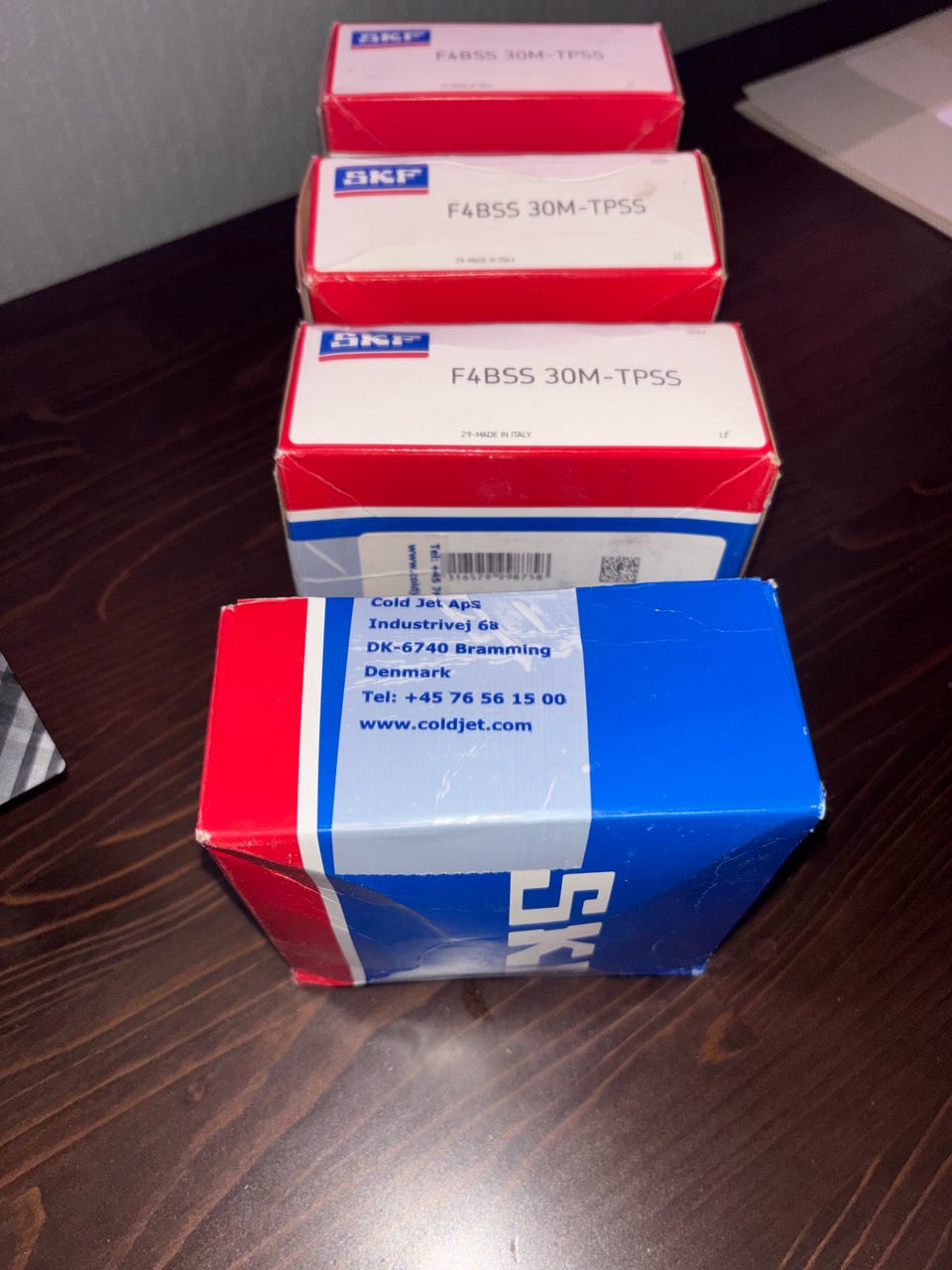

Total vægt 6 kg. 4 Stk. - kan sendes, cirka 80 kr.
4 stk. 4.000 kr. (1.000 kr. pr.stk)
