Oticon PA / L 2000 - Teleloop forstærker - Fin stand
Til salg
700 kr.
Bed sælgeren om at sende med Fiks færdig! Det er trygt, hurtigt, og varen vil blive sendt til dig. Læs mere
Varebeskrivelse
Stand: Brugt - men i god stand
Super fin stand, der mangler dog strømkabel, men det kan købes overalt for ingen penge.
Oticon PA/L 2000 Teleloop forstærker.

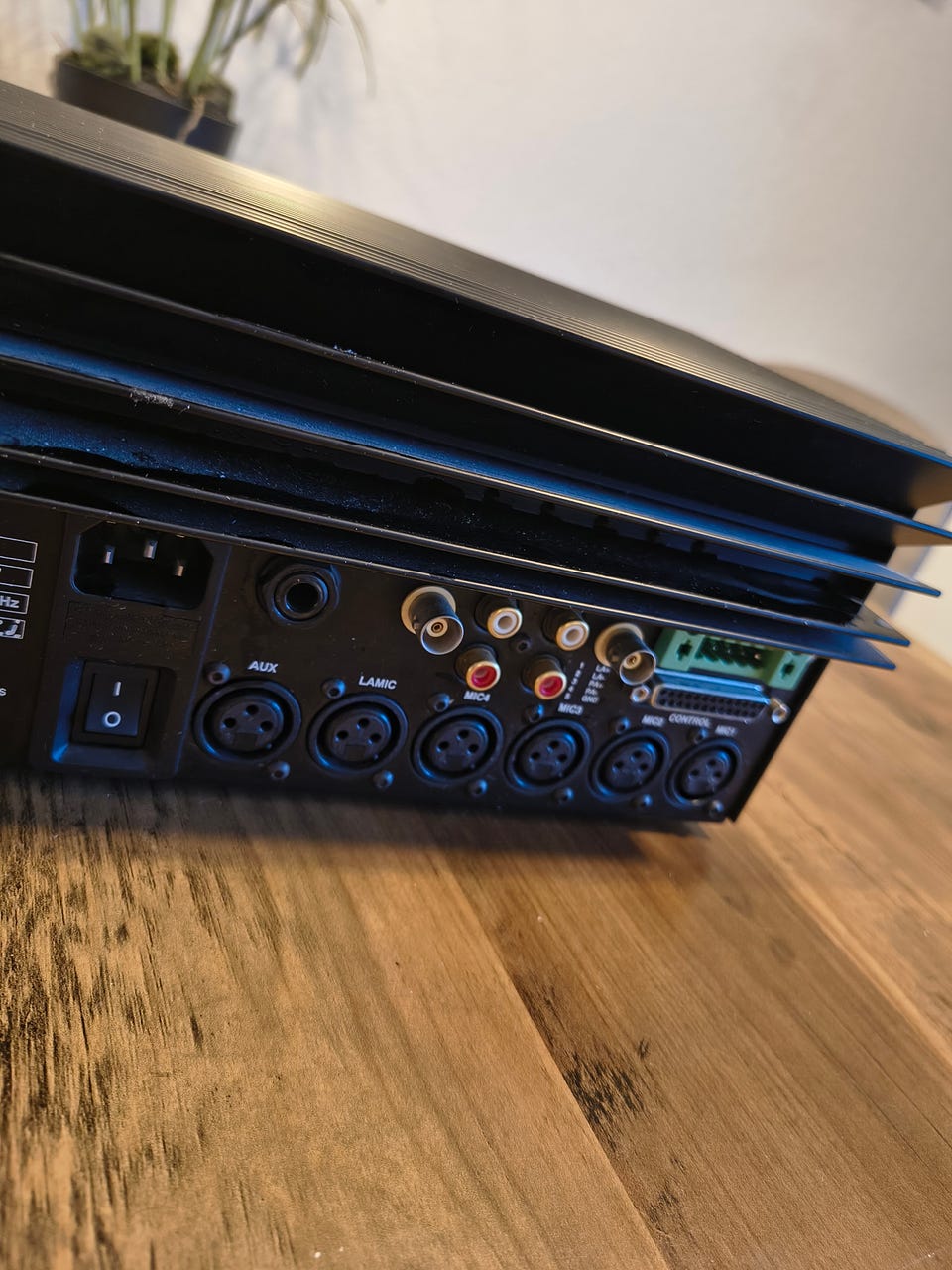

4 Balanced Microphone/Line Inputs (XLR).
1 Am bient Microphone Input (loop amp only).
Phantom Power on MIC inputs (internal jumper).
1 Unbalanced AUX Input (XLR).
Stereo Tape In/Out Connectors (RCA).
Input Sensitivity Indicator (± 6 dB LEDs).
Connector for remote volume and input muting.
9-Band Equalizer for PA amplifier.
Insert point for external signal processor.
Constant Current Loop Amplifier.
Base and Treble Controls, Loop section.
Automatic Gain Control (AGC), loop section.
Tekniske specifikationer:
Loop section
Coverage Area (single turn loop) ......... Up to 4,000 sq.ft.
Loop wire 400 - 1,500 sq. ft. ......... . 16 AWG single turn
1,500 - 4,000 sq.ft. ......... . 14 AWG single turn
Frequency Response ......... ......... . 100 Hz - 5 kHz
Sensitivity, LA Mic (Int. Jumper) ......... . -64/-40/-20/0 dB
AGC Amplification/Attenuation ......... ...... +12/-40 dB
Attack Time ......... ......... ......... ....... 1 mS
Recovery Time ......... ......... ......... ...... 5 S
PA section
Sensitivity, Mic/Line 1-4 (Int. Jumper) ...... -64/-40/-20/0 dB
Sensitivity, AUX (Int. Jumper) ......... ......... -20/0 dB
Sensitivity, Tape (Int. Jumper) ......... ......... -14/0 dB
Phantom Power, Mic 1-4 (Int. Jumper) ......... .... 15 V
Power Output ......... ......... ......... ..... 30 W
Output Impedance ......... ......... ......... 4 Ohm
Distortion ......... ......... ......... .... < 0.1% THD
Signal-to-Noise Ratio ......... ......... ....... > 60dB
Power Bandwidth ......... ......... .... 50 Hz - 12 KHz
Dimensions ......... ........ 5" x 10" x 5.5" (H x W x D)
Weight ......... ......... ......... ......... . . 11 lb
