SmallHD 702 Bright
Til salg
Fiks færdig
2.900 kr.
Fragt fra 39,99 kr. + Tryg betaling 97 kr.
Tryg handel med Fiks færdig
Fiks færdig er DBA's nye betalings- og fragttjeneste. Efter levering har du 24 timer til at kontrollere varen, før pengene udbetales til sælgeren.
Varebeskrivelse
Stand: Som ny - ingen synlige brugsspor

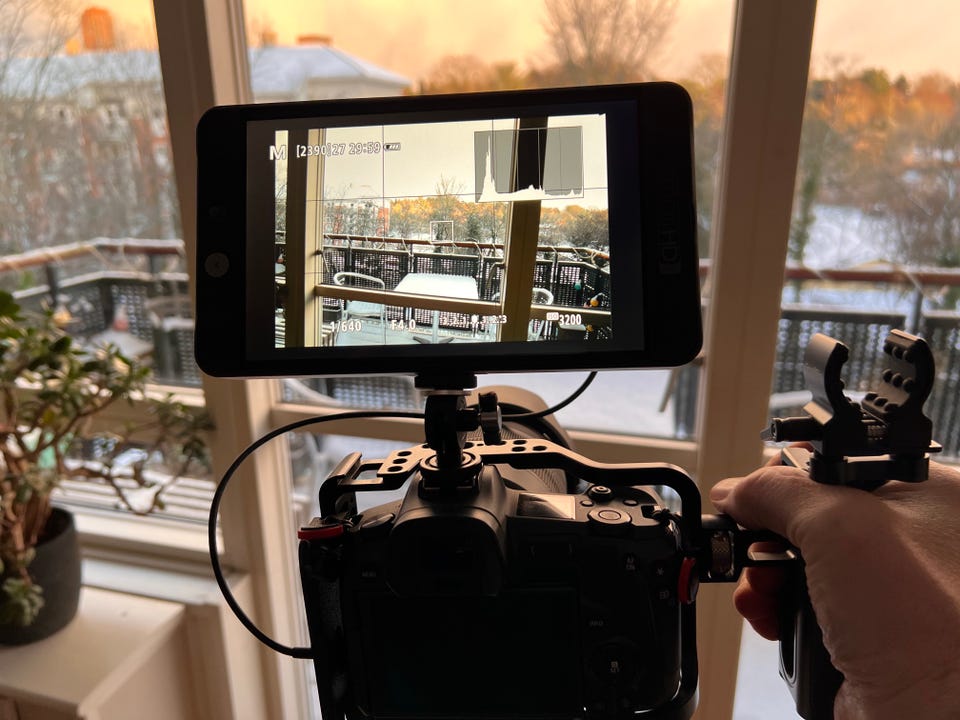

Smallhd 702 Bright On Camera Monitor er et kameraassistentværktøj af høj kvalitet, der leveres med følgende specifikationer:
* Lysstyrke: 1000 cd / m2
* Opløsning: 1920x1080
* Indgangsniveauområde: 1.8 V pp / 75 ohm
* Indgangsstik: BNC x 4, HDMI type A x 1[1]
Smallhd 702 er en fremragende skærm til din produktion. Den har en høj opløsning på 1920x1080 og kommer med nogle fantastiske funktioner, såsom muligheden for at ændre farven på din skærm.

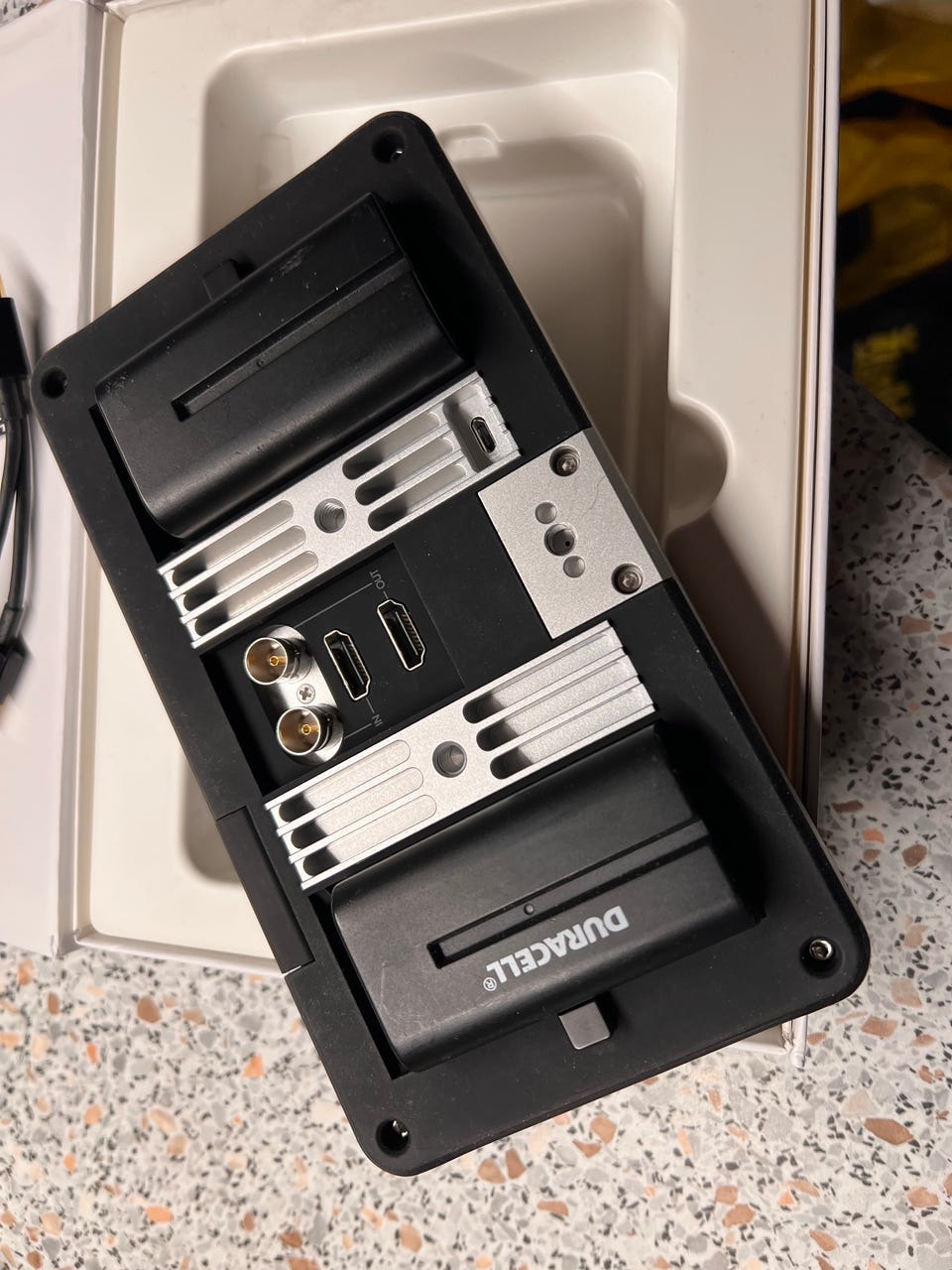

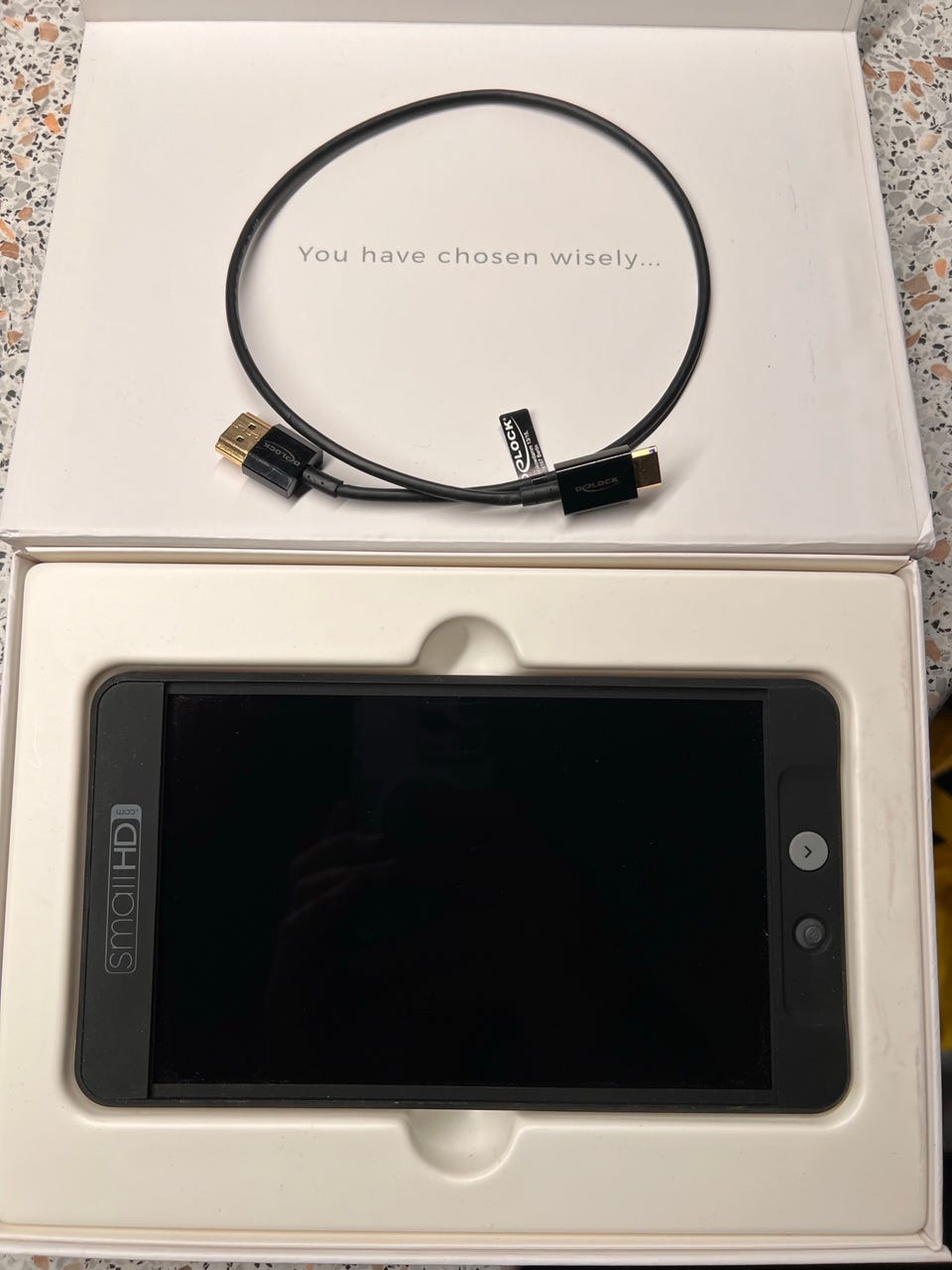

Der følger 2 batterier, og HDMI kabel med.
(SE OGSÅ ALLE MINE ANDRE FOTO ANNONCER PÅ DBA)
Panel Type LCD
Size Diagonal 7
Resolution 1920 x 1080
Pixel Density (PPI) 323
Aspect Ratio 16:10 Native
Active Area 7.0 in
Brightness 1000 nits
Contrast 1000:1
Color Gamut 85% NTSC (100% Rec 709)
Color Depth 24 Bit (8bpc)
Viewing Angle Full 179 Degrees
Backlight Type LED
Adjustable Backlight Yes
Temperature Adaptive Color Yes
Input Signal Types/Formats
3G-SDI
HD-SDI RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50
SD-SDI
HDMI Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50
Component
Composite
Audio HDMI and SDI
Output Signal Types/Formats
3G-SDI
HD-SDI RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50
SD-SDI
HDMI Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50
Component
Composite
Audio Stereo Out (headphones)
Connector Type
SDI 1 SDI (in), 1 SDI (out)
HDMI 1 HDMI (in), 1 HDMI (out)
Component
Composite
Audio 1/8in Mini Stereo Headphone
Power In
Power Out LP-E6 style / Sony L style
USB Micro-USB 5V @ .5A
Controls
Primary Control Interface Joystick + “Back” button
Record/Capture Capture button
User Defined Functions Uses “Pages” in conjunction with the Joystick control to provide any number of user defined monitoring options.
RF Wireless Remote / External Control Via Remote
USB Remote / External Control
Data I/O
Storage SD Card (full-size)
USB Factory use and Future user functionality
Wireless
Wifi
Power
Connector Type LP-E6/Sony L style
Voltage 6.0 - 8.4 volts
Power Consumption 11 watts
Battery Plate Included Canon LP-E6 / Sony NPF
Recommended Power Supply LP-E6 coupler with built-in 7.2v, 2A regulator
Overload Protection Yes
Smart Battery Compliant Yes
Battery Types LP-E6 and/or Sony L Series
Battery Chemistry
Output Voltage (VDC)
Battery Capacity (mAh)
Battery Charging Time (hours)
Environmental
Compliance CE, FCC, IC
Operating Temperature 30F to 90F
Storage Temperature 0F to 120F
Screen Protection 1mm Acrylic (user replaceable)
Height 4.23" (10.74cm)
Width 7.56" (19.20cm)
Depth/Length .95" (2.41cm)
Weight (Item Only without battery) 17oz (481.94g)
Weight (Packaged) 29.6oz (839.14g)
Mount Points (4) ¼-20 thread points (bottom, back & sides)
Note:
Software
Pixel Zoom (type) 2x & 4x with smooth pan via joystick
Frame Guides Yes
DSLR Scale Canon, Nikon
Custom Scale Yes
Anamorphic De-Squeeze Yes
Image Rotate(Manual/Automatic) Yes
Image Flip (Manual/Automatic) Manual and Auto Flip
Cross Conversion Yes
Focus Assist (Colors) Yes
Peaking Yes

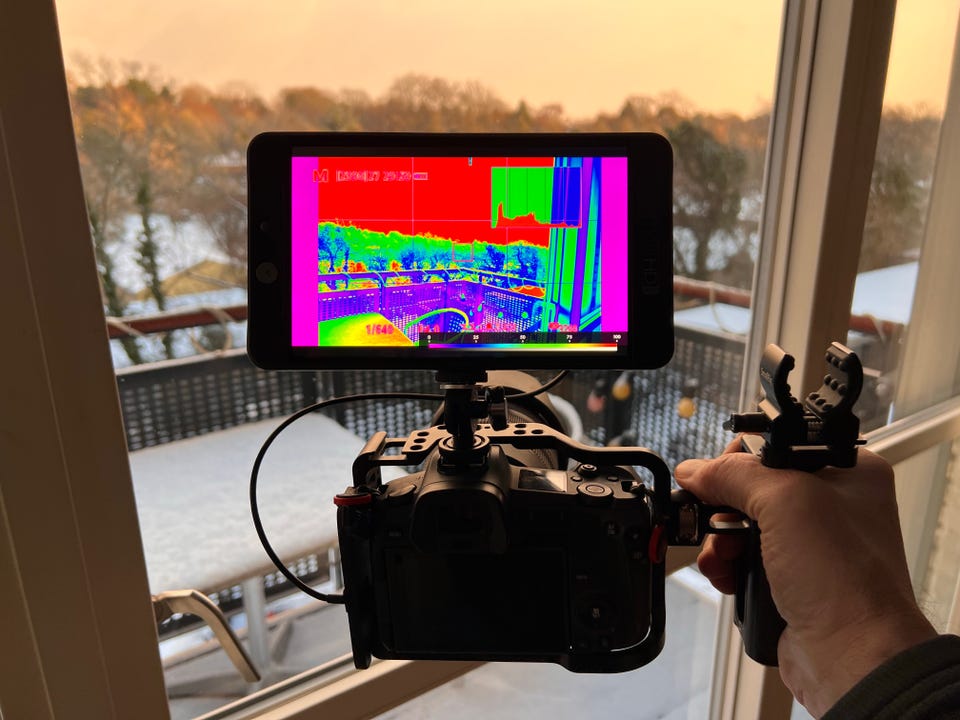

False Color Yes
Zebra Yes - Multiple
Waveform Yes
Vectorscope
PIP No
RGB Parade Yes
Histogram Yes
Horizon Indicator No
Image Capture Yes with Dedicated Capture Button
Dailies Recording/Playback
Master Recording
Wifi Streaming
Custom LUTS Yes
LUT Creation No
LUT Downstream Yes
LUT Import Yes
Onion Skinning
Image Overlay Yes
Blue Only No
Firmware User Upgradable. Current Version: 2.0
Audio Meters Yes
