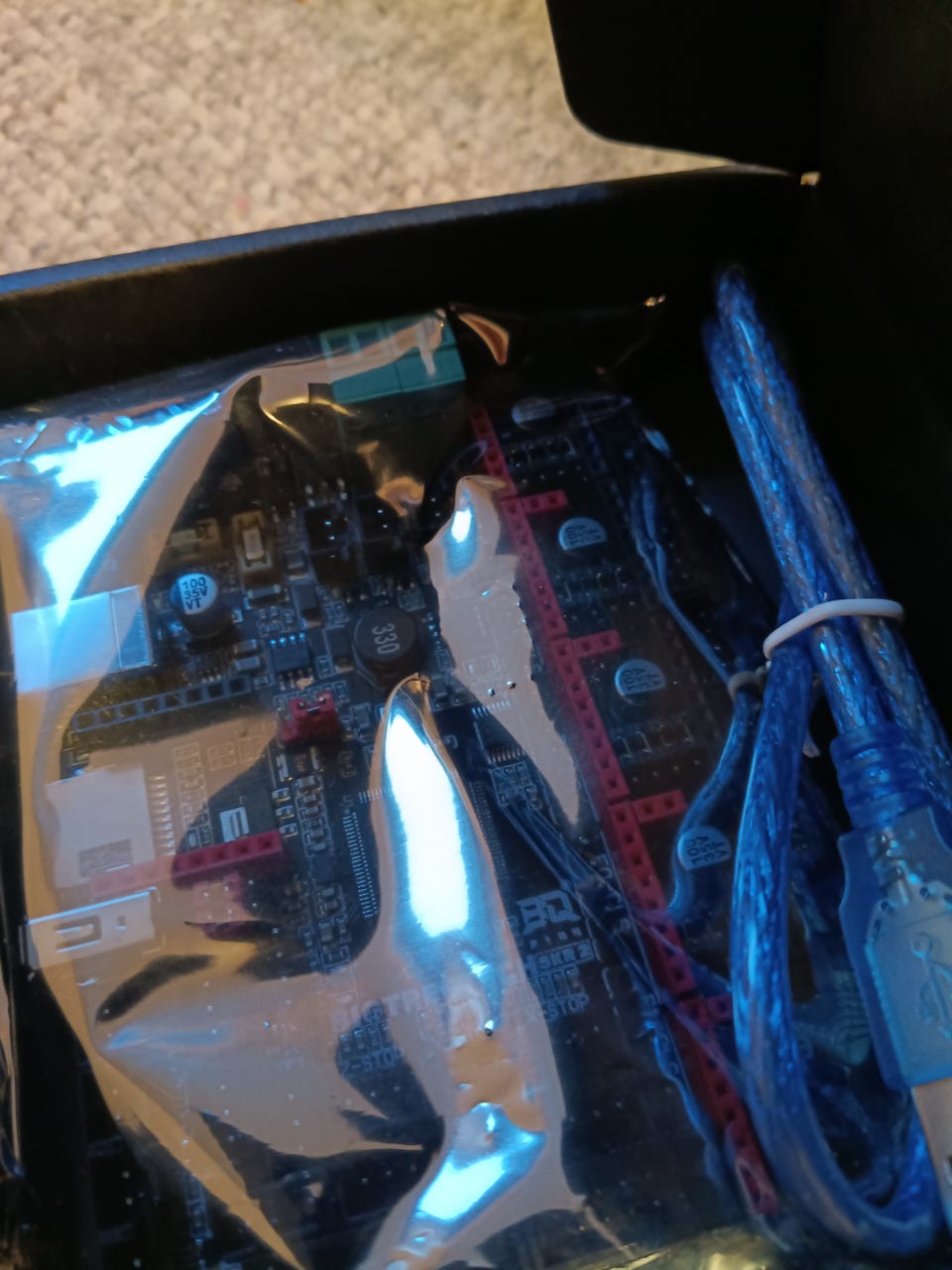

BTT skr2 controller board til 5 stk 2209 drivere
Til salg
250 kr.
Bed sælgeren om at sende med Fiks færdig! Det er trygt, hurtigt, og varen vil blive sendt til dig. Læs mere
Varebeskrivelse
Stand: Som ny - ingen synlige brugsspor
Helt nyt skr 2 board til 3d printer med mange udgange.
1 stk u/stepper drivers
Se også mine andre boards bl.a. du kan søge på 776655
Specifikationer:
32-bit ARM Cortex-M4 CPU with 168MHz
5 stepper driver slots
Up to 6 stepper motors can be connected.
WIFI interface connection
Thermal runaway protection circuit
Extended protection circuit for thermistors
Marlin integrated anti-reverse stepper driver protection
Supports BigTreeTech TFT displays as well as LCD12684, LCD2004
Connectors for PWM fans
Interface for closed loop stepper motor
Raspberry Pi Interface
High performance MOSFET
Supports BLtouch, filament runout sensor
Auto power down enabled (separate relay required)
Power Loss Recover Feature (separate UPS module required)
Dimensions: 109.67x84.3mm
Hole spacing: 101.85x76.3mm
Connections:
12V / 24V input voltage
5 stepper driver slots (SPI, UART, STEP / DIR)
6 stepper motors can be connected (dual Z axis)
1 Micro SD card reader
1 USB socket
1 USB port
1 WIFI interface for ESP8266 module
2 connections for heating cartridges
1 connection for heating bed
4 temperature sensor connections
2 connections for one fan
3 connections for PWM fans
1 connection option for BL-Touch sensor
3 connections for limit switches
1 filament runout connection option
