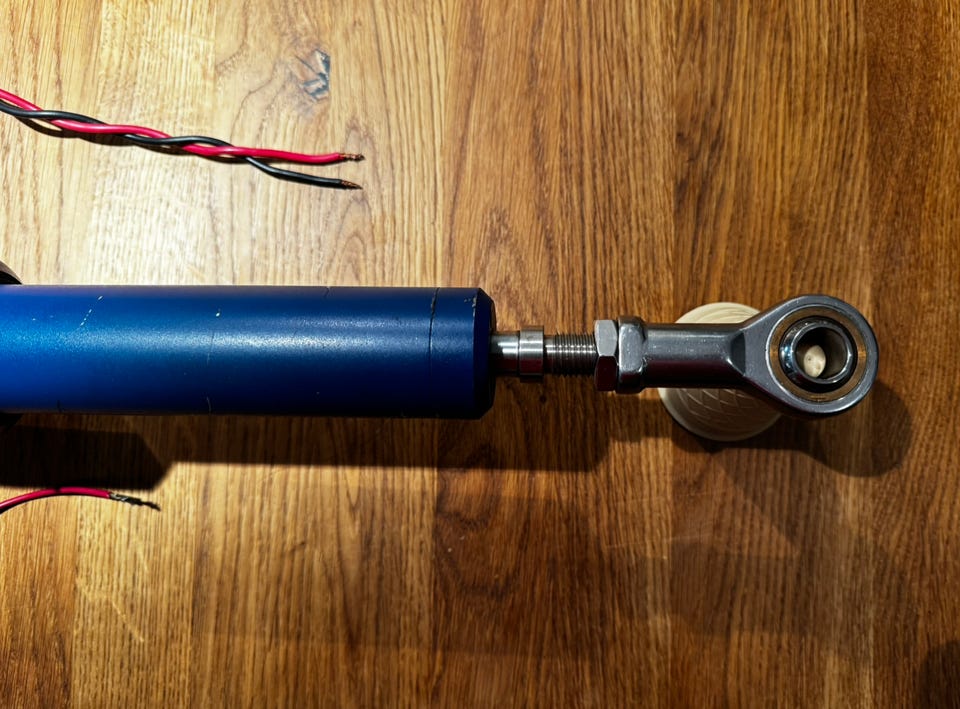

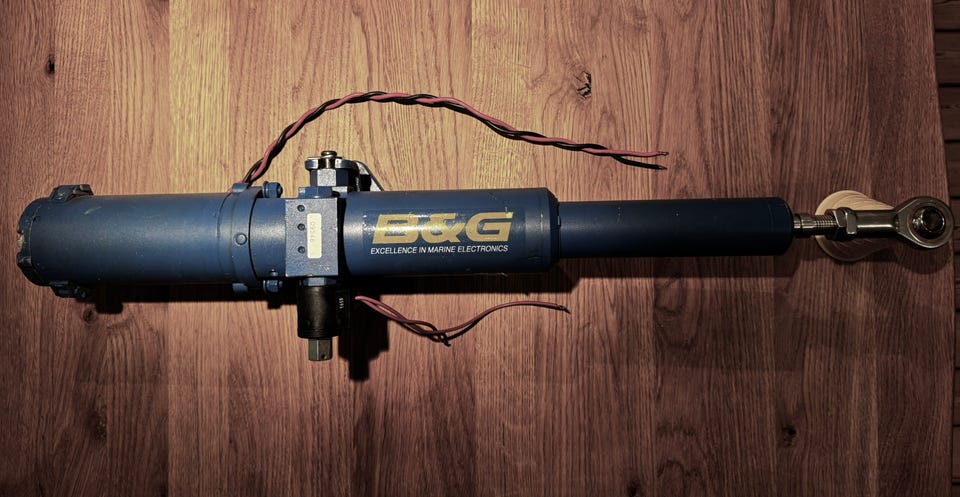

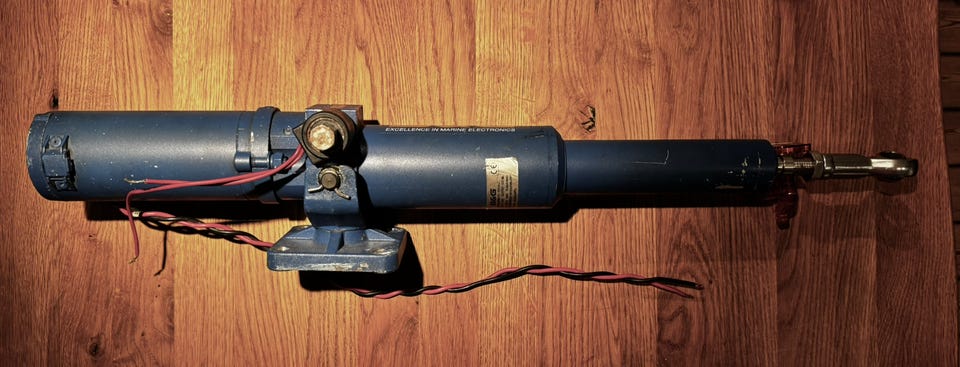

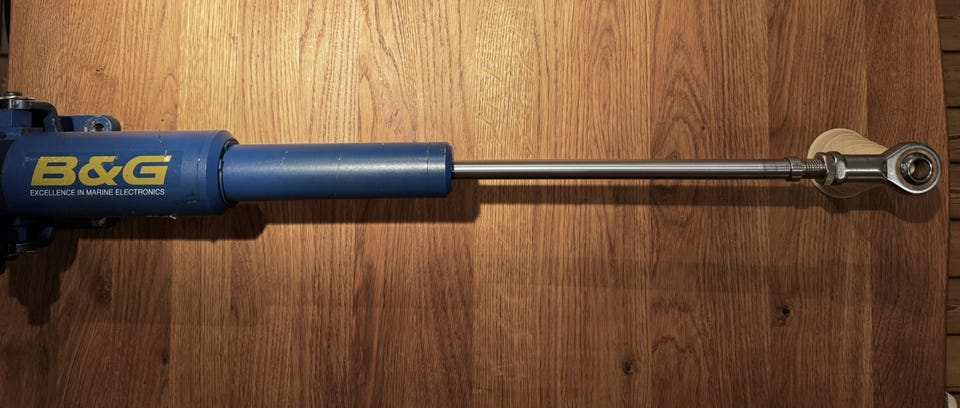

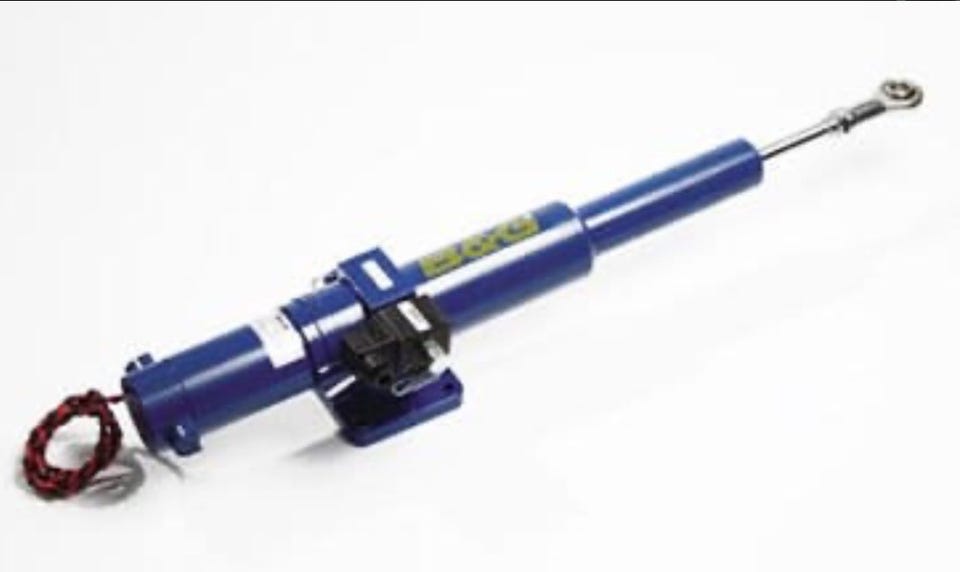

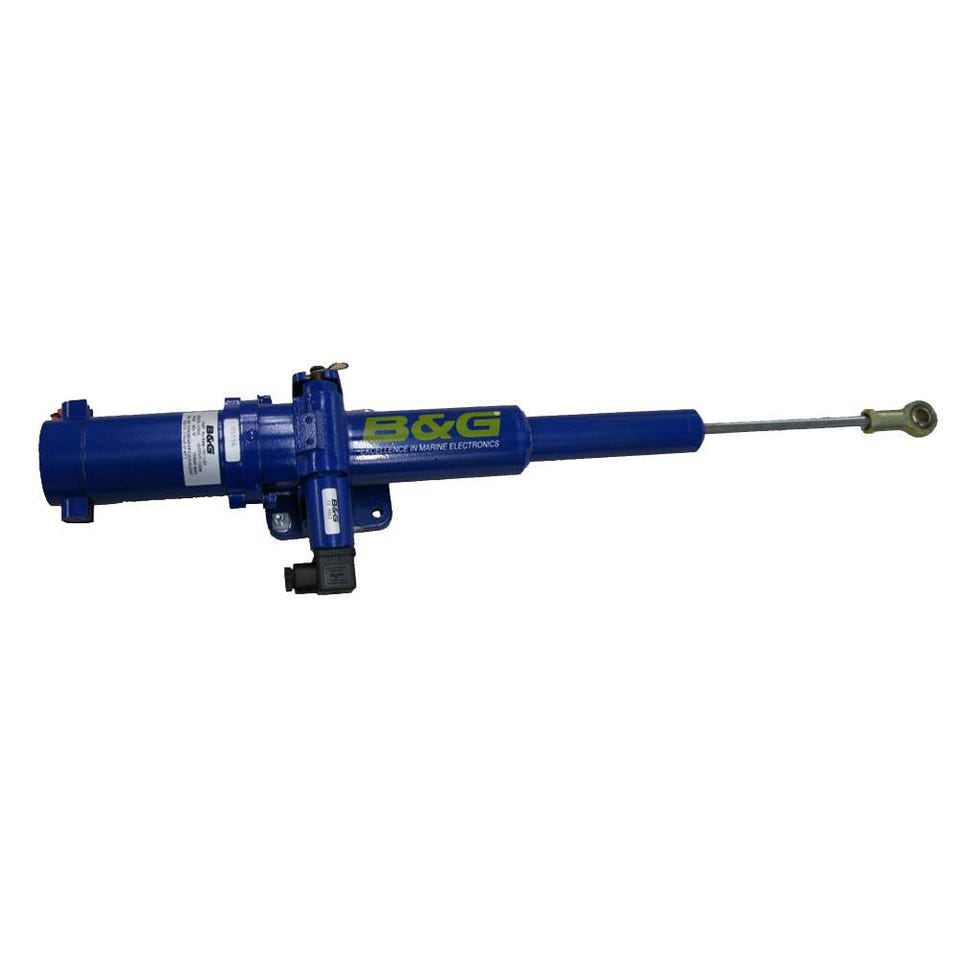

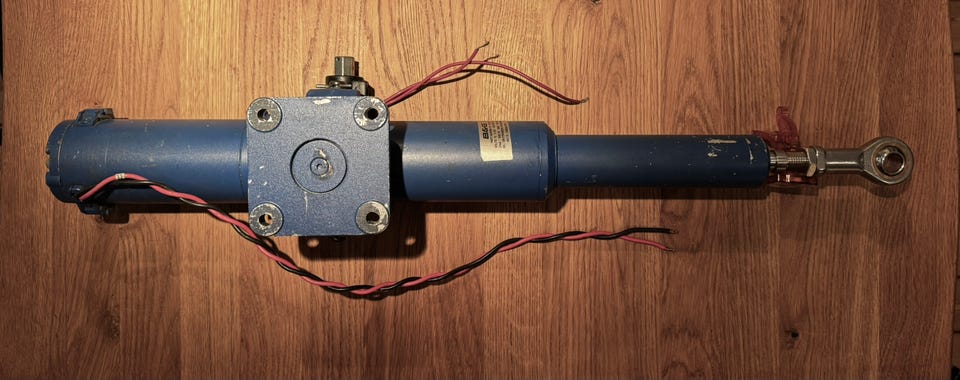

B&G T2 Pilot Ram RAM-T2-12V - Autopilot Linear Drive til båd
Til salg
1 kr.
Varebeskrivelse
Stand: Som ny - ingen synlige brugsspor

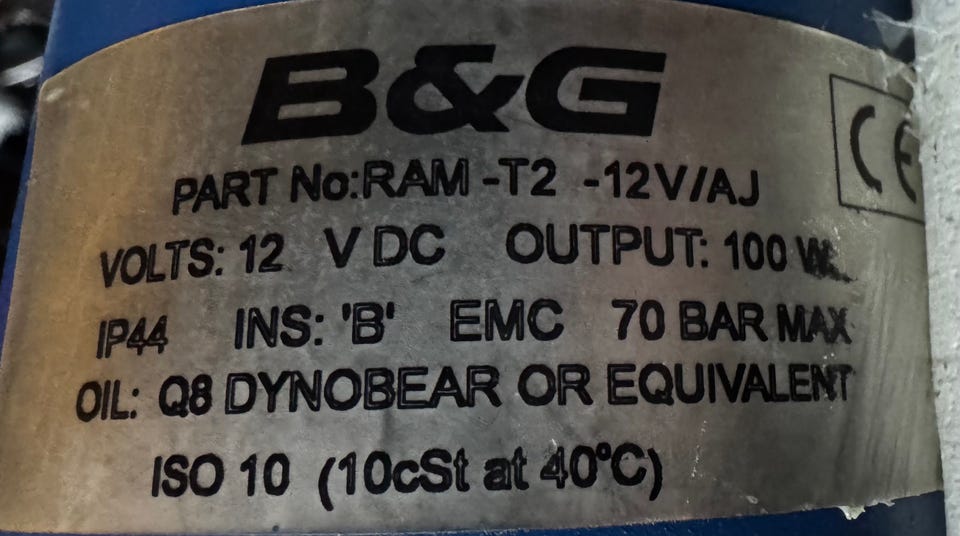

B&G RAM-T2 hydraulisk pumpe med 12 V DC spænding og en output på 10 bar.
High power, efficient drive units for maximum power with minimum consumption. Ram drives allow the Power Steer mode on the Pilot to be used in cases of manual steering failure. Fully Integrated hydraulic system, no external hoses, reservoirs etc.
Type 2 Lineart Drive 100W 12V 24V 30” Aluminum Hydraulic Pilot Ram
Length: 30”
Protection: IP44
Rotation: Reversing
Motor Power: 100W
Seals: Nitrile and PTFE
Connection: DIN 43650
Body Protection: SP270
Body: Aluminum BS 1490
Relief Valve Setting: 62 bar
Nominal Voltage: 12/24 VDC
Coil Power (Continuous): 12W
Maximum Current @ 12V: 22.5A
Maximum Current @ 24V: 11.2A
Connection: 1m 2 Core Flying Lead
Back-drive at 12 sec Hard-over: 7 kg
Minimum Temperature Rating: -20ºC
Maximum Temperature Rating: +65ºC
Maximum Thrust (Intermittent): 675 kg
Ignition Protection: BS EN 28846:1993
Hard Over Time Nominal RAM-T2: 9 sec

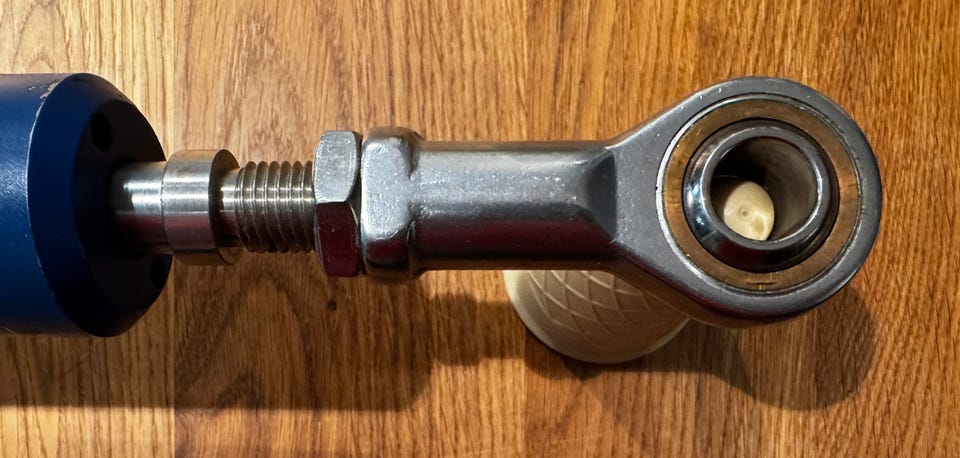

Piston Rod: Chrome Plated Stainless Steel
Manufacturer: B&G
Model Number: Pilot Ram
PN: RAM-T2-12V
RAMT212V
Specifications
Max Boat Size 20000 kg
Stroke 250 mm
Hard Over Time 9 seconds
Tiller Arm 213 mm
Thrust 700 Kg/f
Rudder Torque 149 Kg/m
Compatible Computers H5000, NAC-3
Kan ses testes og afhentes 2650 Hvidovre
Giv et bud !
