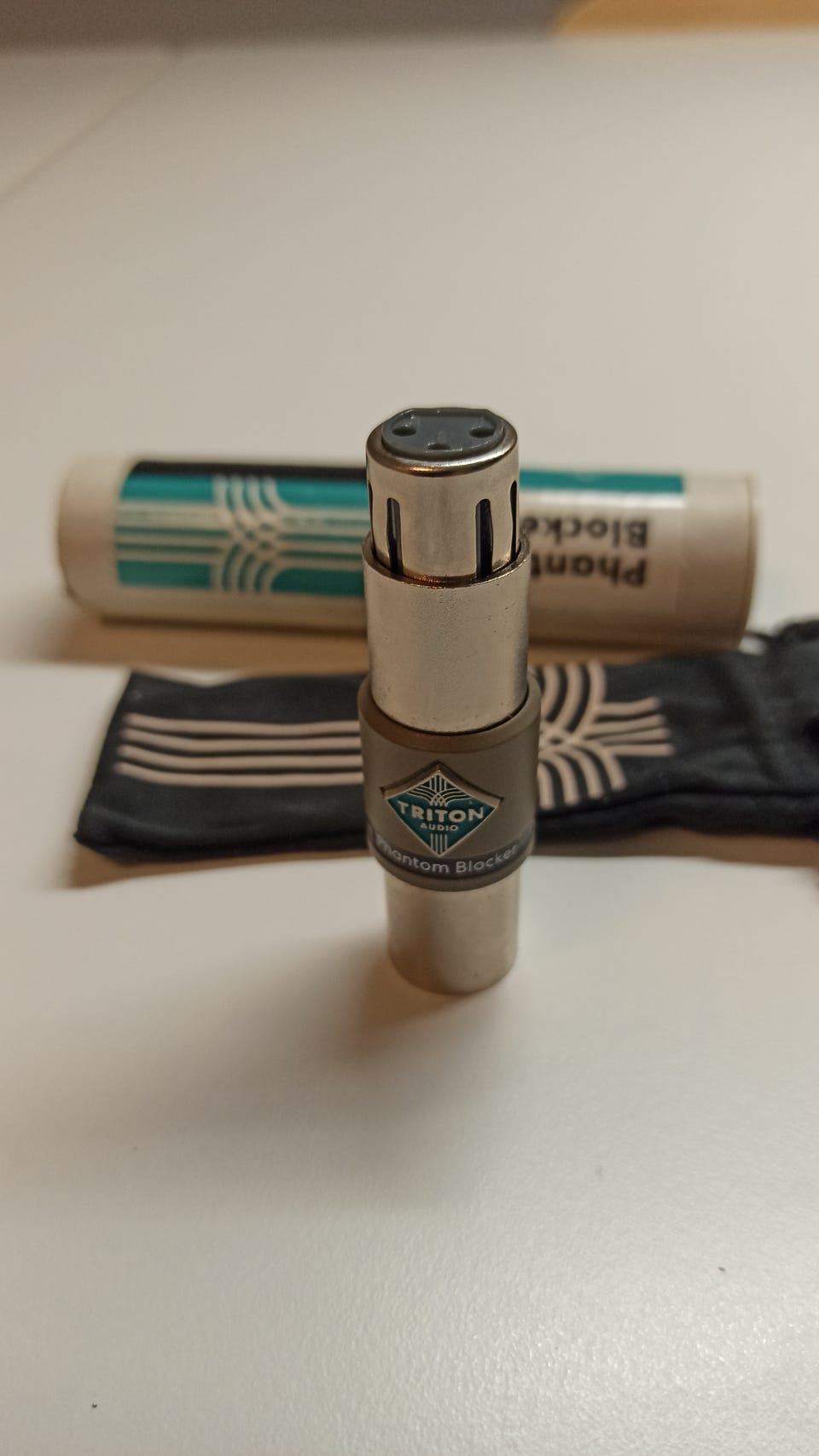

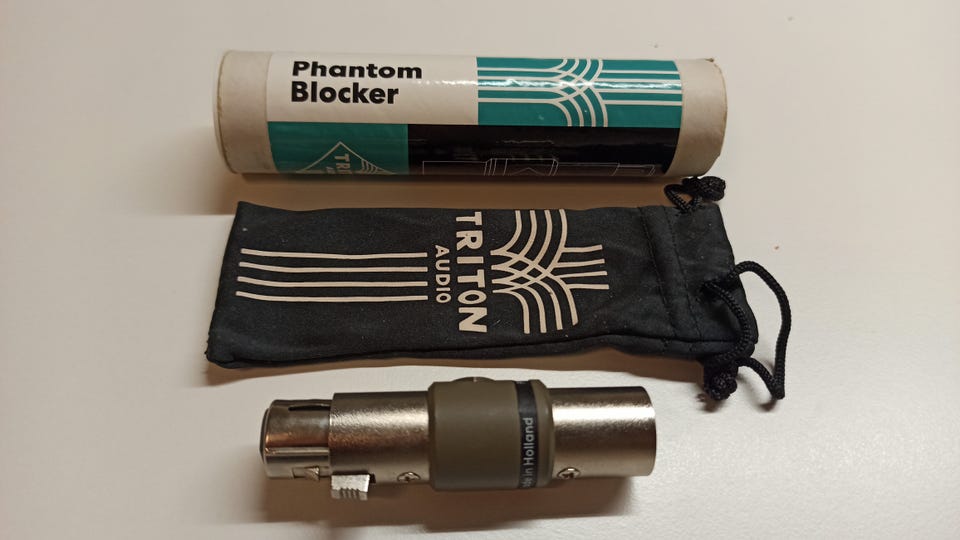

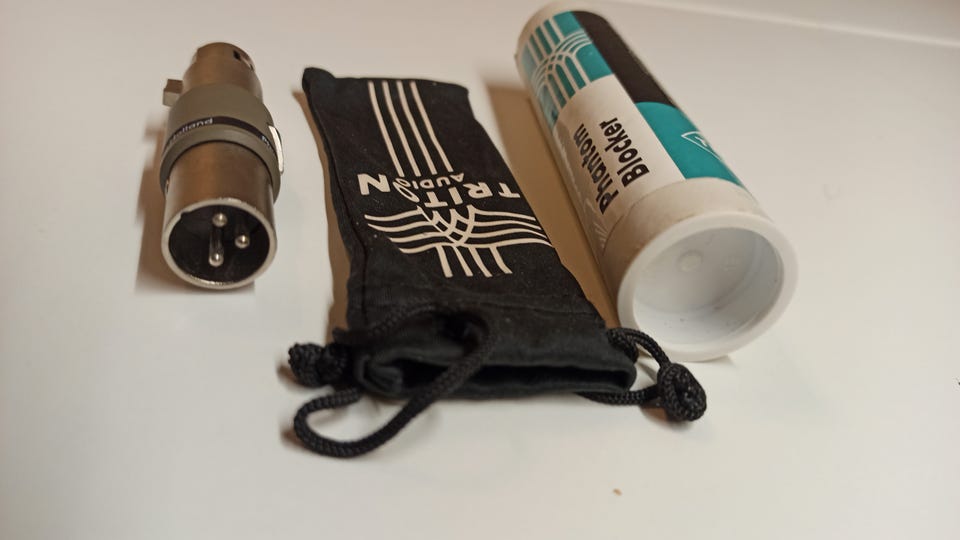

Blocks P48 Phantom Blocker fra Triton Audio (helt ny)
Til salg
299 kr.
Bed sælgeren om at sende med Fiks færdig! Det er trygt, hurtigt, og varen vil blive sendt til dig. Læs mere
Varebeskrivelse
Stand: Helt ny - uåbnet/med prismærke
Blocks P48 phantom power
Phantom blocker blocks phantom power while leaving the audio signal intact. Phantom power can be applied to either the male or the female side of phantom blocker’s XLR connector and will not reach the opposing XLR connector, the audio signal travels without restriction in both directions
Important
Before you connect the device you wish to shield from phantom power, make sure your phantom blocker is attached to the cable and have phantom power engaged. Wait 5 seconds, during which phantom blockers internal bleeder resistors will cancel out voltage differences. Connecting in this order prevents the transfer of an initial AC voltage burst created by the phantom power switching on.
Recommended applications
• Microphones

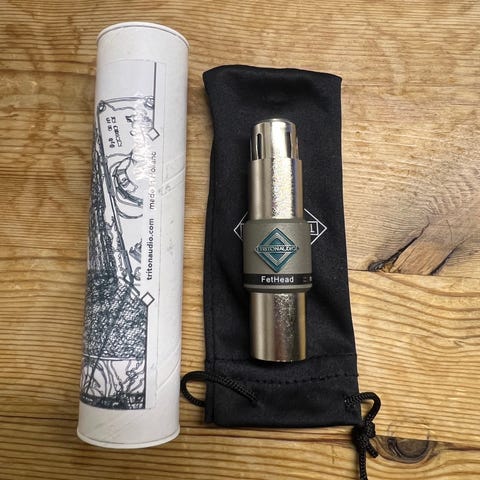

There are microphones (mainly ribbon microphones) which do not tolerate phantom power. We advise to use our FetHead to add clean gain and protect your ribbon microphone against phantom power.
• Microphone preamps
Some (vintage) preamps are sensitive for phantom power at the input. The preamp’s input transformer cannot handle phantom power from another source.
• Unbalanced TRS to XLR cables
When connecting an unbalanced TRS to XLR cable, pin 3 of the XLR connector is directly connected to ground, creating a short, this can damage input transformers and under dimensioned phantom power circuits.
• Balanced device outputs
Our phantom blocker is a great solution to protect the output of any device connected to the XLR input of a mixing desk or preamp which has phantom power switched on, e.g. your computers audio interface.
Specs
Protects microphones
Protects device outputs
Anything else you wish to protect from phantom power
Balanced XLR input/output
height: 3” / 76mm
width: Ø 0,86” / 22mm
weight: 55 g
