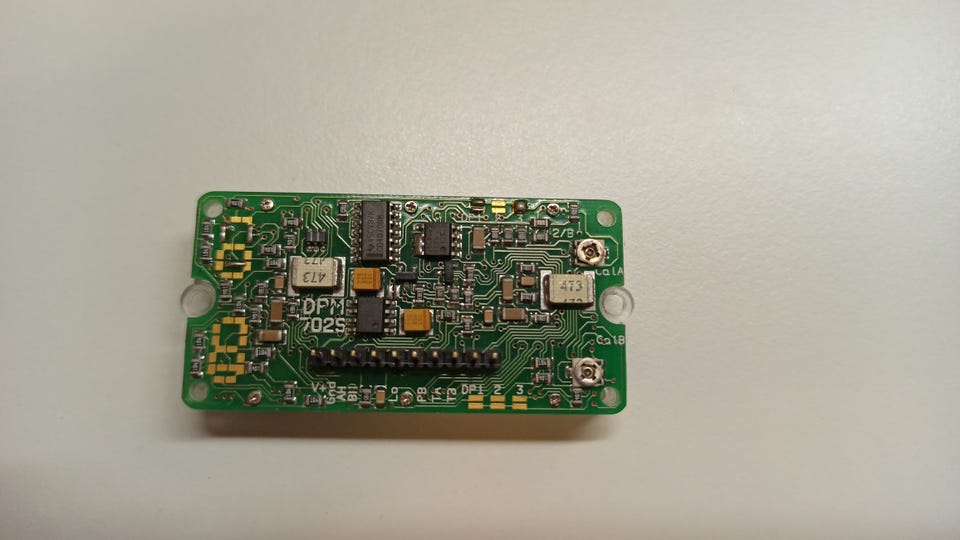

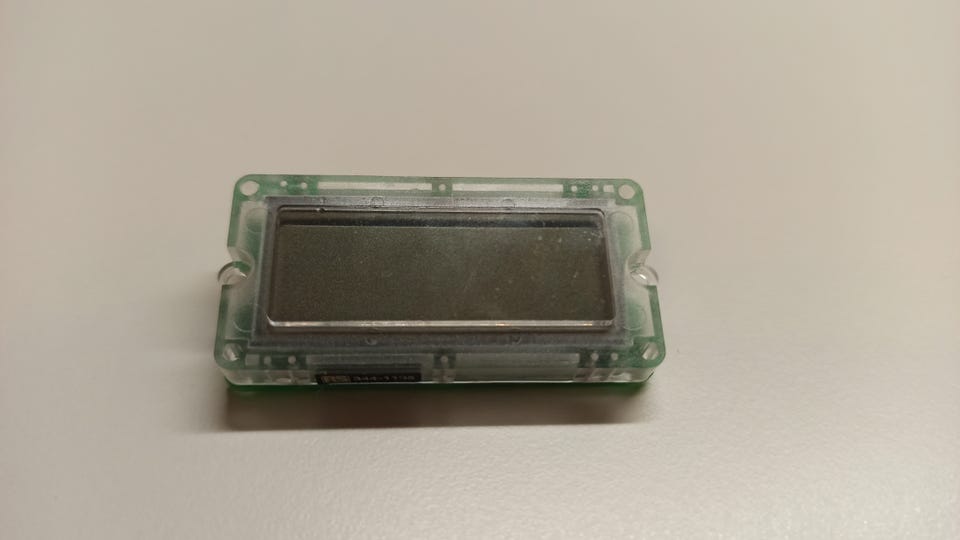

DPM702S Dual Channel LCD Voltmeter and Current
Til salg
Fiks færdig
499 kr.
Fragt fra 14,99 kr. + Tryg betaling 25 kr. Fragten er en tilbudspris og kostede oprindeligt 29,99 kr.
Tryg handel med Fiks færdig
Fiks færdig er DBA's nye betalings- og fragttjeneste. Efter levering har du 24 timer til at kontrollere varen, før pengene udbetales til sælgeren.
Varebeskrivelse
Stand: Som ny - ingen synlige brugsspor
The DPM702S is a 3.5-digit Dual Channel LCD Voltmeter features ultra-low profile, uses advanced components and construction techniques to provide an unrivalled combination of dual channel voltage measurements. This product is ideal for those applications where "matched" readings are required, e.g. voltage and current, temperature and humidity, etc. Both measurement inputs share a common ground line, thereby reducing the number of connections to a minimum. The very low current consumption results in a long battery life and makes it especially suitable for portable equipment. A low battery warning circuit is fitted as standard.
Nypris: 767-900 kr.
Applikationer
Power Management, System Monitoring, Automation & Process Control
Selectable decimal points
6.4mm Digit height
Auto-zero and Auto-polarity
Common signal ground
-0 to 50°C Operating temperature range
Tekniske specifikationer
No. of Digits / Alpha
3-1/2
Meter Range
0mV to 200mV
Panel Cutout Height
32mm
Supply Voltage Min
3.5VDC
Operating Temperature Min
0°C
Product Range
-
Meter Function
DC Voltage
Digit Height
6.4mm
Panel Cutout Width
62mm
Supply Voltage Max
7VDC
Operating Temperature Max
50°C
