4MS VCA Matrix
Til salg
Fiks færdig
2.100 kr.
Fri fragt + Tryg betaling 73 kr.
Tryg handel med Fiks færdig
Fiks færdig er DBA's nye betalings- og fragttjeneste. Efter levering har du 24 timer til at kontrollere varen, før pengene udbetales til sælgeren.
Varebeskrivelse
Stand: Som ny - ingen synlige brugsspor
Perfekt stand. Den har stået tildækket hos mig i dyre- og røgfrit studie.
Jeg betaler fragten og pakker den ekstra forsvarligt (kan også prøves og afhentes i Svendborg). Jeg sender gerne uden “fiks færdig” hvis du overfører først (som i gamle dage). Inkl original æske, skruer med washers og strømkabel.
Nypris: ca 2750 kr
____________
Features:
• 4 CV/audio inputs and 4 outputs (buffered and dc-coupled)
• Full range (0Hz - 20kHz) for both Control and Signal inputs, allows for AM effects, etc.
• 16 VCA's using high quality SSM chips
• Attenuation/gain range from -100dB (mute) to 0dB (unity). Up to +20dB boost with trimpot adjustment.

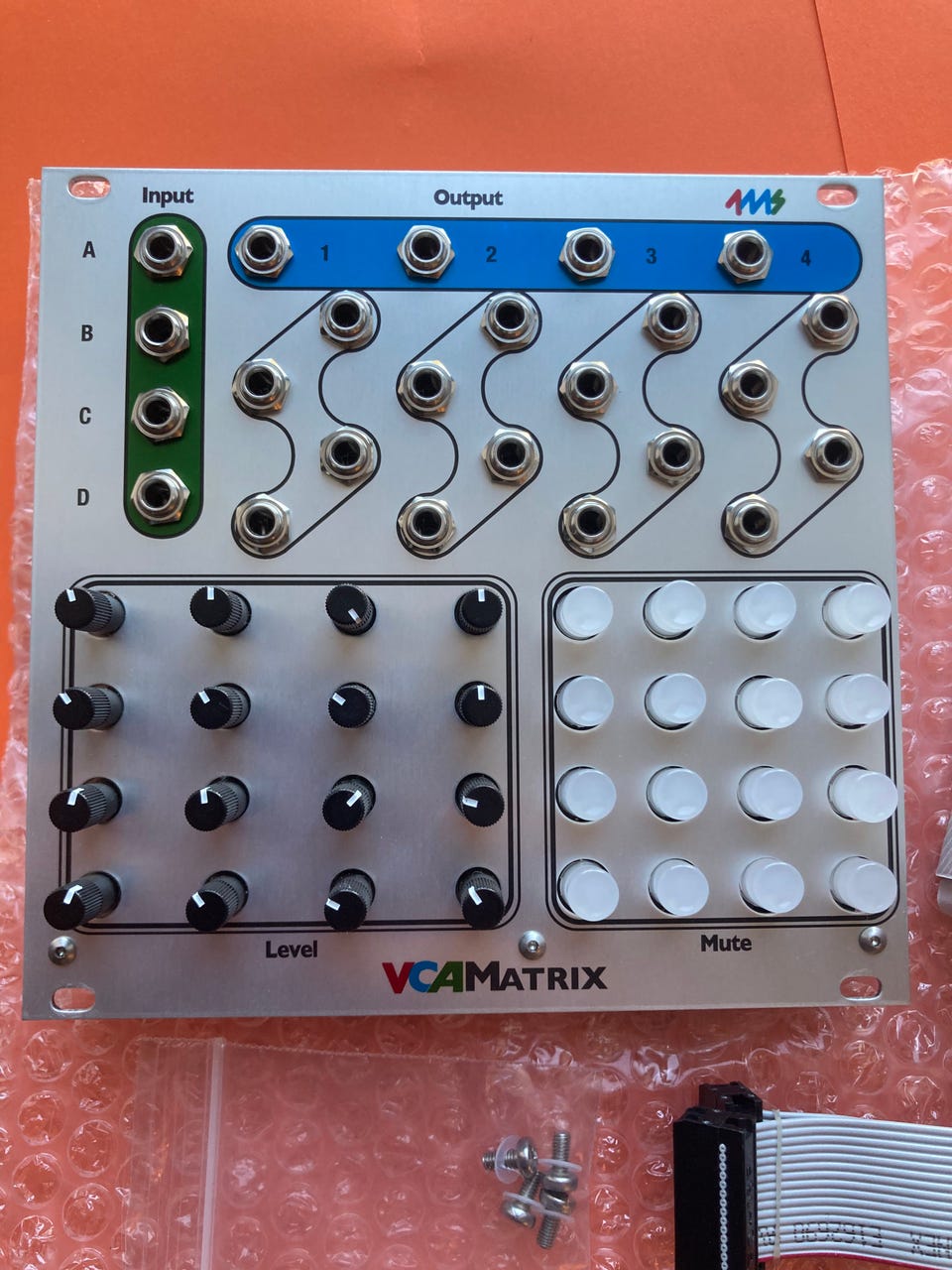

• Playable surface with 16 latching Mute LED buttons, used to mute each VCA individually (Mute button disconnects Control jack and Level knob, and fully attenuates the VCA)
• LED button brightness indicates amount of attenuation and Control CV signal
• 16 Control jacks for VCA level control
• 16 Level knobs attenuate the incoming Control signals. The Level knobs act as manual level controls when nothing is plugged into the Control jack
• Exponential VCA response in low control voltage range, pseudo-log response in higher voltage range.
• "Soft Limit" effect limits gain to prevent clipping, while still responding to higher Control voltages with more "punch" and wider pulses
• Matrix Expandability: VCA Matrices can be connected to form a larger matrix using headers on the back (4x8, 8x8, 12x4, etc)

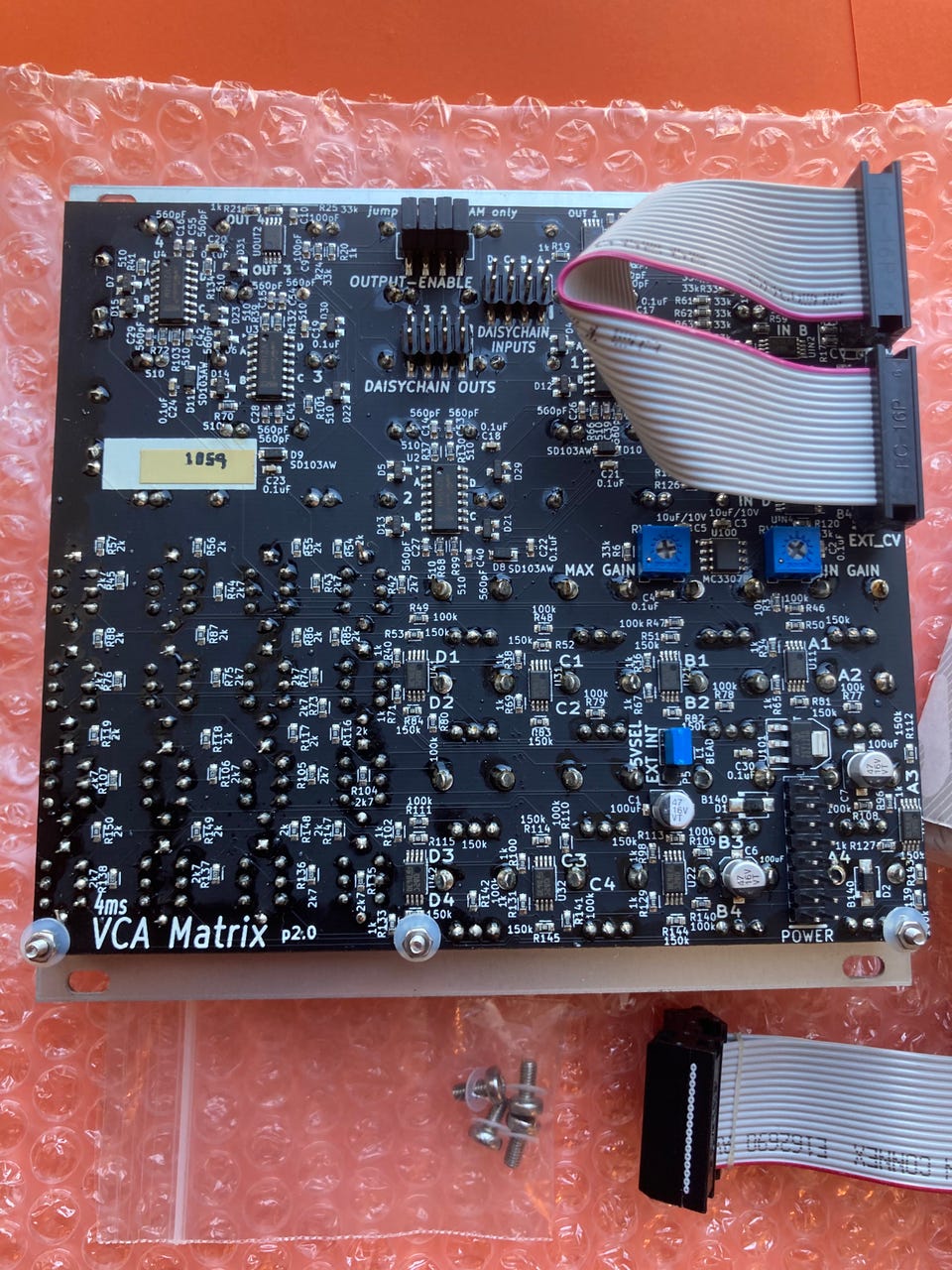

• Control Expandability: 16-pin header on back side of PCB allows an external device to control all VCAs: e.g. patch recall, patch sequencing, preset patterns such as quadrature panning, etc.
• Suitable as a 4x4 mixer, splitter, dynamic signal router, limited waveshaper, etc.
https://modulargrid.net/e/4ms-company-vca-matrix
Søgeord: Eurorack, modular, modulær, feedback patching, quadraphonic, kvadrofonisk
