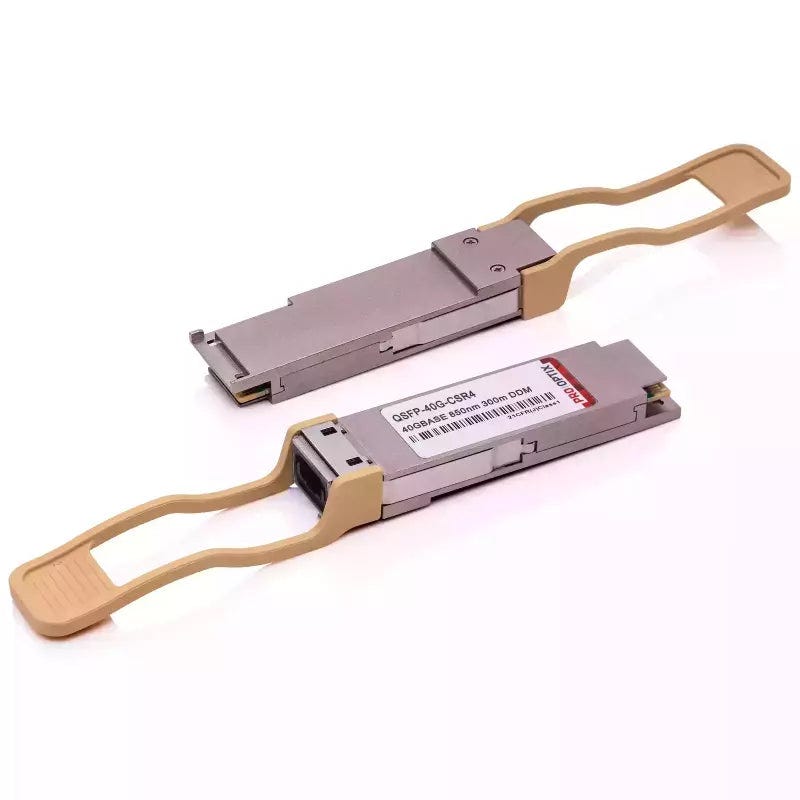

Pro Optix QSFP-40G-eSR4-O Transceiver Module
Til salg586 kr.
Beskrivelse
The Pro Optix QSFP-40G-eSR4-O is a 40G QSFP+ fiber optical transceiver, designed for high-speed data communication over multimode fiber up to 300 meters, offering guaranteed compatibility with Cisco systems.
The Pro Optix QSFP-40G-eSR4-O is a high-performance 40G QSFP+ (Enhanced Quad Small Form-factor Pluggable) fiber optical transceiver. This module is specifically engineered to be fully equivalent to the Cisco original transceiver QSFP-40G-eSR4, ensuring seamless integration and optimal performance within Cisco-based network infrastructures.
Designed for robust data transmission, this transceiver operates over multimode fiber, supporting distances of up to 300 meters. It features an MPO-12 connector, a standard choice for high-density fiber optic cabling, which facilitates efficient and reliable connections in demanding data center and enterprise environments.
Adhering strictly to Multi Source Agreement (MSA) compliance, Pro Optix transceivers guarantee broad compatibility and meet rigorous industry standards. This commitment to quality ensures that the module functions flawlessly with compatible equipment, providing a dependable solution for high-speed networking needs.
At its core, the module utilizes a Vertical-Cavity Surface-Emitting Laser (VCSEL) operating at an 850 nm wavelength, optimized for multimode fiber. The Non-Return-to-Zero (NRZ) modulation scheme is employed for efficient and reliable data encoding, making it ideal for 40 Gigabit Ethernet protocols.
The QSFP+ form factor is a versatile, hot-pluggable optical transceiver that supports four independent transmit and receive channels. This design allows for flexible deployment and scalability in various networking setups, establishing it as a leading choice for achieving 40 Gbps data rates.
This multimode transceiver is characterized by its ability to transmit multiple optical signals over a larger core fiber cable, making it perfectly suited for shorter-reach applications. It provides a high-bandwidth, low-latency solution for critical links within buildings, campuses, and data centers.
Form Factor: QSFP+
Type: Multimode
Standard: eSR4
Data Rate: 40G
Distance: 300 m
Connector: MPO-12
Power Budget: 2.3 dB
Tx Power Min: -7.6 dBm
Tx Power Max: 1 dBm
Rx Sensitivity: -9.9 dBm
Temperature Range: 0°C - 70°C
Power Consumption: 0.7 W
Wavelength: 850 nm
Laser: VCSEL
Receiver: PIN
Modulation: NRZ
Protocol: 40G Ethernet
