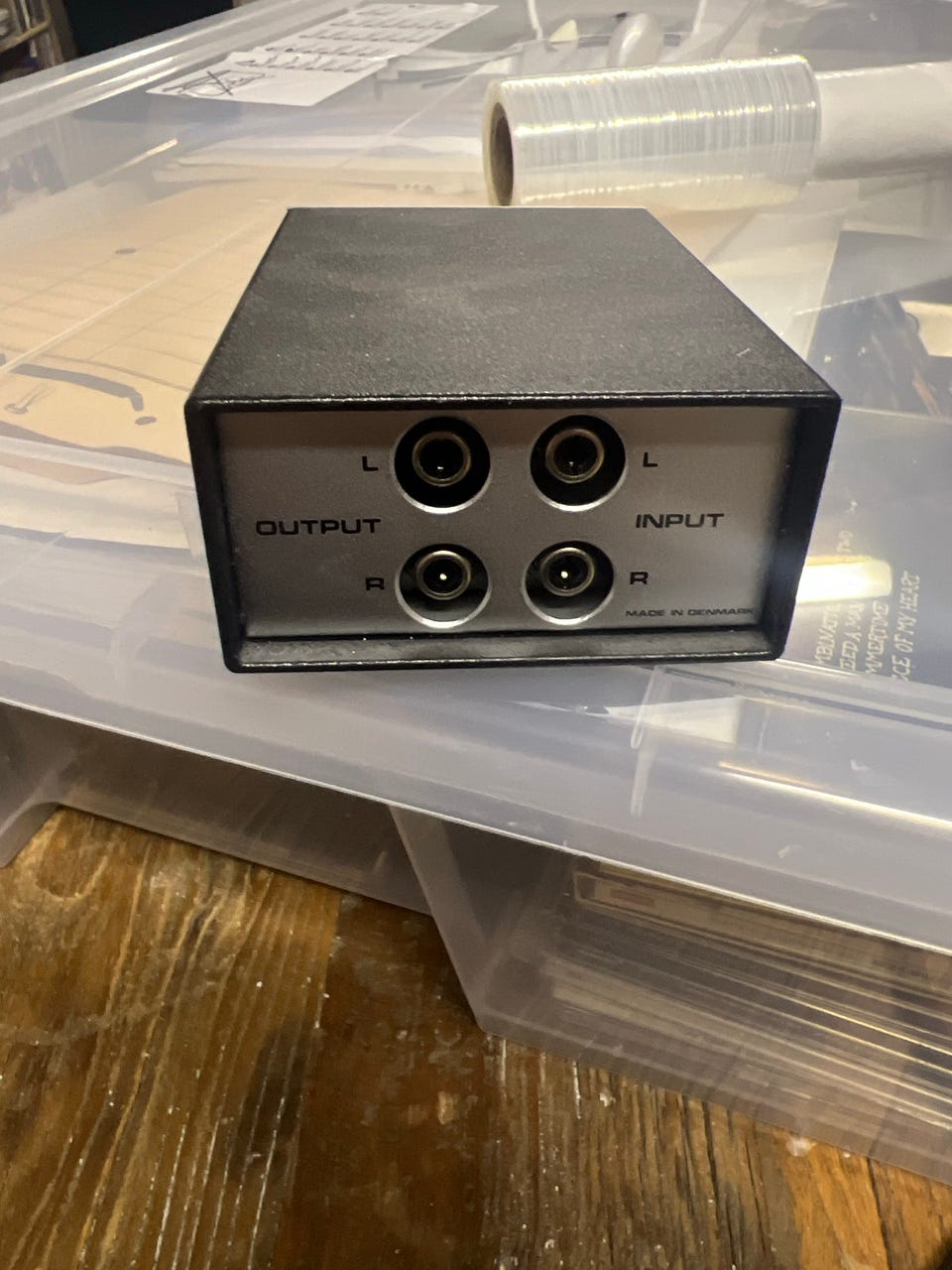

Ortofon T-20
Solgt
Til salg
500 kr.
Varebeskrivelse
Stand: Brugt - men i god stand
The T-20 transformer has been engineered on the same principle as the T-30 so it offers a high performance level.
Designed essentially for use with Ortofon moving coil cartridges, which have an internal impedance of 3 ohm per channel, it can also be used with cartridges of different manufacture in the 2 to 4 ohm range.
The T-20 includes a bypass position for switching between moving coil and magnetic cartridges.
Specifications
Type of unit: transformer
Pick up impedance: 2 to 4 ohm
Output loading: 47k ohm / 150pf
Frequency response: 10Hz to 60kHz
Phase linearity: +-18 degrees
Gain: 32dB
Channel balance: 0.2dB
Channel separation: 50dB
Transformer type: toroidal
Shielding: permalloy + soft iron
Dimensions: 40 x 80 x 122mm
