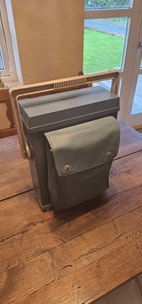

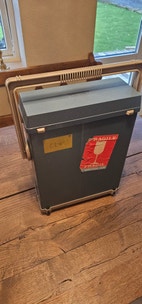

Tektronix 2225 50 mhz oscilloscope
Til salg
Fiks færdig
1.200 kr.
Fragt fra 59,99 kr. + Tryg betaling 46 kr.
Tryg handel med Fiks færdig
Fiks færdig er DBA's nye betalings- og fragttjeneste. Efter levering har du 24 timer til at kontrollere varen, før pengene udbetales til sælgeren.
Varebeskrivelse
Stand: Som ny - ingen synlige brugsspor
The Tektronix 2225 is a 50 MHz dual-channel analog scope.
It has a single timebase with a ×5/×10/×50 magnifier that allows displaying normal and magnified traces together on the screen, but has no delay feature, only an X position control.
The Y inputs feature a ×10 magnifier that decreases bandwidth to 5 MHz but increases sensitivity to 0.5 mV/Div.
Rise time ≤7 ns (≤70 ns with ×10 vertical magnification)
Bandwidth ≥50 MHz (≥5 MHz with ×10 vertical magnification)
Deflection 5 mV/Div to 5 V/Div, 1–2–5; 500 μV/Div with ×10 vertical magnification; variable ≥2.5:1
Input impedance 1 MΩ // 25±2 pF
Maximum Safe Input 400 V (DC + peak AC) or 800 Vp-p AC to ≤10 kHz
Trigger sensitivity 0.3 Div or 40 mV @ 5 MHz, 1 Div or 200 mV @ 5 MHz
Sweep 0.5 s/Div to 50 ns/Div, 1−2−5; ×10 Mag. down to 5 ns/Div; variable ≥2.5 : 1
Z input 5 V causes noticeable modulation (positive decreases intensity), DC to 5 MHz; max. 400 V (DC + peak AC) or 800 Vp-p AC to ≤10 kHz
CRT 154-0907-00 tube, 80 × 100 mm² display, P31 phosphor, 12.6 kV acceleration

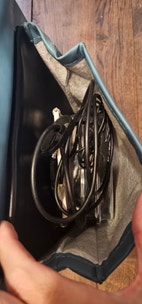

Probes Two P6103 10X, 2 m Probes
Power 95–128 or 185–250 VAC, 48–440 Hz, ≤70 W (80 VA)
Features
500 μV/Div Sensitivity
5 ns/Div Maximum Sweep Rate
Alternate Magnification
P-P Auto Triggering
HF/LF Reject Trigger Filters
X-Y mode (± 3° from DC to 150 kHz)
Calibrator (0.5 V ±5% into 1 MΩ Load; 1 kHz ±20%)
Options (selected)
1C - Camera Option C-5C option 04
1K - K212 Cart
1R – Rackmount kit

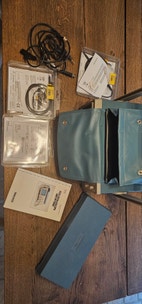

02 − Front Cover and Pouch
07 – Internal DC Inverter (for 11.8–30 VDC supply)
30 – Opt.07 + 1104 battery
18 – P6122 10X probes instead of standard P6103
23 - P6062B 1X/10X probes 2 each (later changed to P6119 probes)
