Antelope Audio Isochrone OCX Master Clock
Til salg
Fragt fra 59,99 kr. + Tryg betaling 130 kr.
Tryg handel med Fiks færdig
Fiks færdig er DBA's nye betalings- og fragttjeneste. Efter levering har du 24 timer til at kontrollere varen, før pengene udbetales til sælgeren.
Varebeskrivelse
Stand: Brugt - men i god stand
Antelope Isochrone OCX Master Clock
High Resolution Audio Clock Generator
Very reliable and extremely well-sounding system clock unit.
Trading has no interest.
Price as new: 8000 kr.
Price: 4.000 kr.. Open to offers.
Selling on behalf of a company/production I work for. Buyer can receive company invoice from purchase upon request.
Pick up in Copenhagen, Denmark, or sent worldwide at buyer's expense.
-
TECHNICAL SPECIFICATIONS:
Internal Reference:
Oven-Controlled Crystal Oscillator
Frequency Accuracy:
Better than ±1 PPM
Atomic Clock Input:
10 MHz BNC
Word Clock Outputs:
6 standard + 2 user-defined
AES Sync Outputs:
2 AES/EBU (XLR)
S/PDIF Sync Outputs:
2 coaxial RCA
Sampling Rates:
32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
AC Power:
95–245 VAC, 50–60 Hz, 12 W max
Operating Temperature:
0–50 °C (32–122 °F)
Weight: 2 kg (4.4 lb)
Dimensions:
482 mm (W) × 44 mm (H) × 173 mm (D)
19 in (W) × 1.7 in (H) × 6.8 in (D)
FEATURES & CONTROLS:

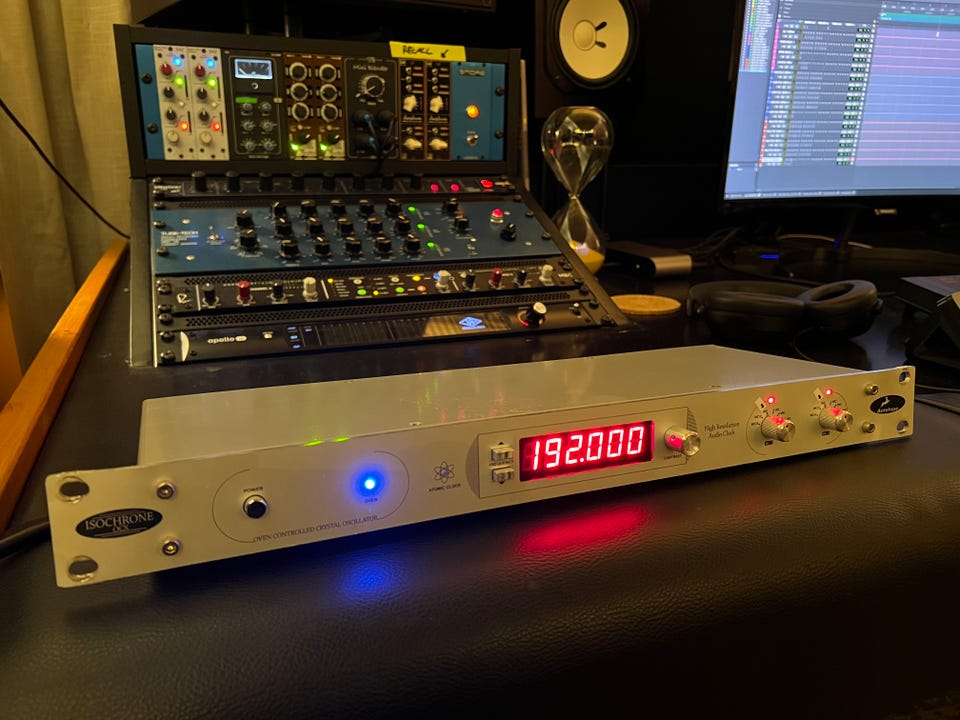

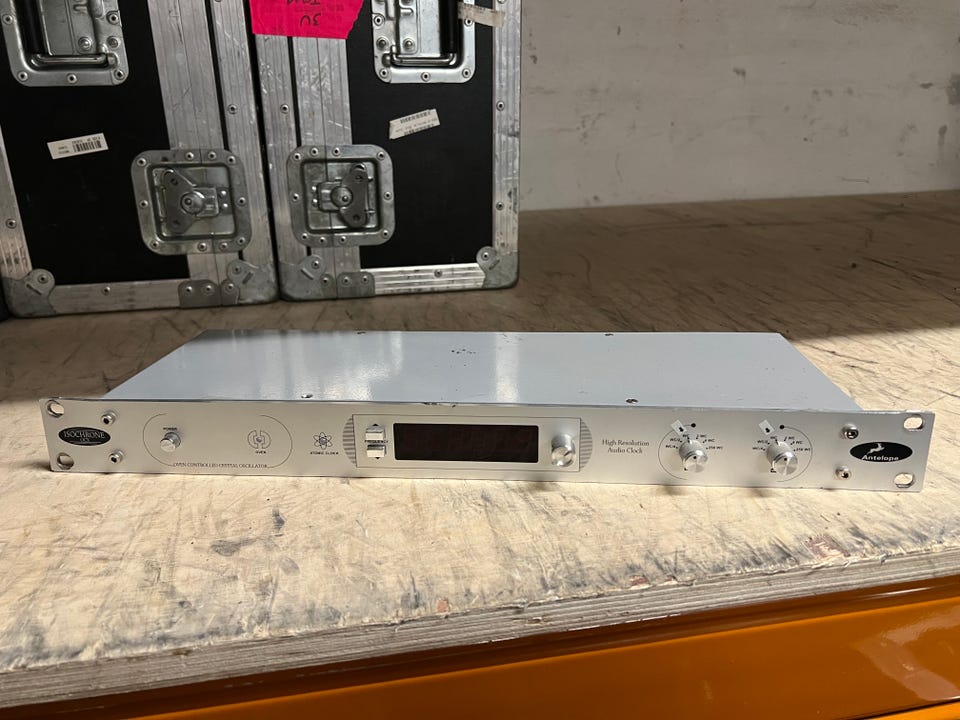

Front Panel:
Power Switch
Oven Indicator:
When the OCX is powered on, this LED will flash while the oven calibrates its temperature. The LED will remain lit when this temperature is achieved. This process only takes a moment, and verifies optimum hardware performance.
Atomic Clock Indicator:
When lit, this LED verifies that the OCX is slaving to an Atomic Clock via the corresponding BNC input on the unit's back panel.
Sample Rate Selectors:
Used to select the operating frequency of the OCX clock. All outputs (Word Clock, AES/EBU, and S/PDIF) will output this frequency with the exception of outputs 7 and 8. Outputs 7 & 8 can operate at this rate or provide user-defined frequencies (see below).
Frequency Display:
Displays the operating frequency of the OCX clock.
Contrast Knob:
Adjusts the frequency display contrast.
Alternate Sample Rate Switches for Word Clock Outputs 7 and 8:
Word Clock outputs 7 and 8 are capable of outputting frequencies different from the OCX internal clock. The first five settings choose frequencies that are multiples of the internal clock. The final setting, 256 WC, configures the output to generate 256 FS Clock (or “Superclock”), a protocol used by some Digidesign components.
A red LED is present above each knob.
When lit, it indicates that a valid sample rate is selected. When flashing, the output has been configured to provide a frequency outside the supported range (32 kHz – 192 kHz).

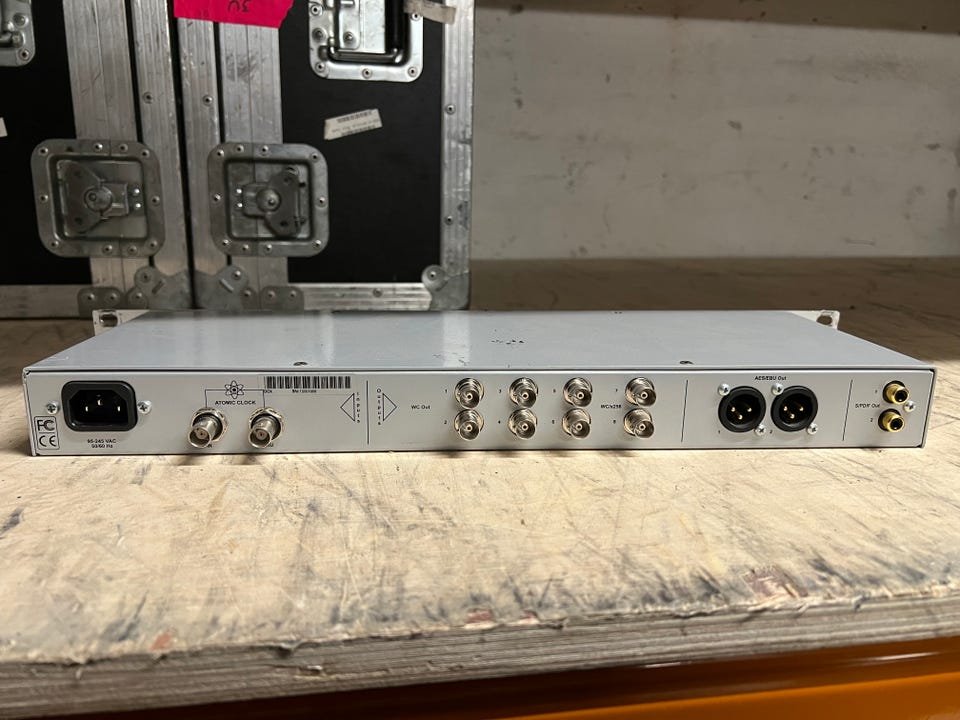

Rear Panel:
Power Connection:
This IEC AC connection accepts an input of 95 – 245 VAC, 50/60 Hz. The OCX automatically accommodates this full voltage range, allowing safe use in any country.
Atomic Clock In and Thru Connectors:
The Atomic Clock Input allows the OCX to operate with unprecedented accuracy. This BNC input accepts the 10 MHz clock signal from an atomic clock device. The OCX can utilize this ultra-precise timing reference at any supported sample rate.
The Atomic Clock Thru allows additional devices to slave to the same atomic clock received by the OCX. This permits multiple OCX units in a studio, all sharing the atomic reference in perfect sync.
Word Clock Outputs 1–6:
The sample rate provided by these BNC outputs always matches the rate indicated by the front-panel Frequency Display. For best results, Word Clock cables should not exceed 20 ft (6 m). Longer cables increase jitter and other clock errors.
Word Clock Outputs 7–8:
These outputs may either follow the main rate or output the alternate frequencies set by the knobs on the front panel.
AES/EBU Outputs:
Provide clock in the AES/EBU format. This format is ideal for long cable runs—up to 300 ft (90 m).
S/PDIF Outputs:
RCA connections provide clock via coaxial S/PDIF. For best results, limit S/PDIF cable length to 10 ft (3 m).
