Nikko receiver NR-1019
Til salg
Fiks færdig
6.900 kr.
Fragt 80 kr. + Tryg betaling 217 kr.
Tryg handel med Fiks færdig
Fiks færdig er DBA's nye betalings- og fragttjeneste. Efter levering har du 24 timer til at kontrollere varen, før pengene udbetales til sælgeren.
Varebeskrivelse
Stand: Brugt - men i god stand

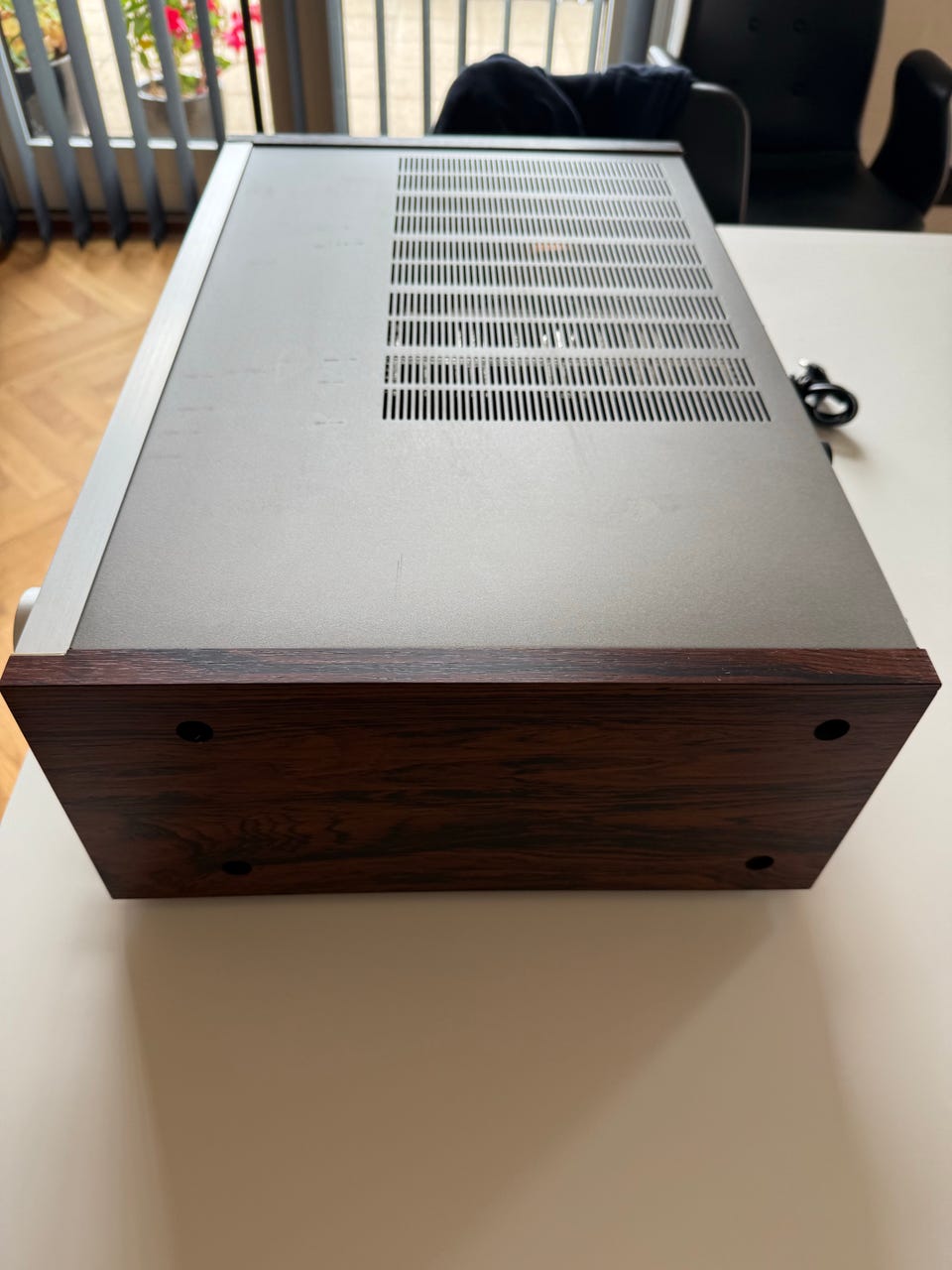

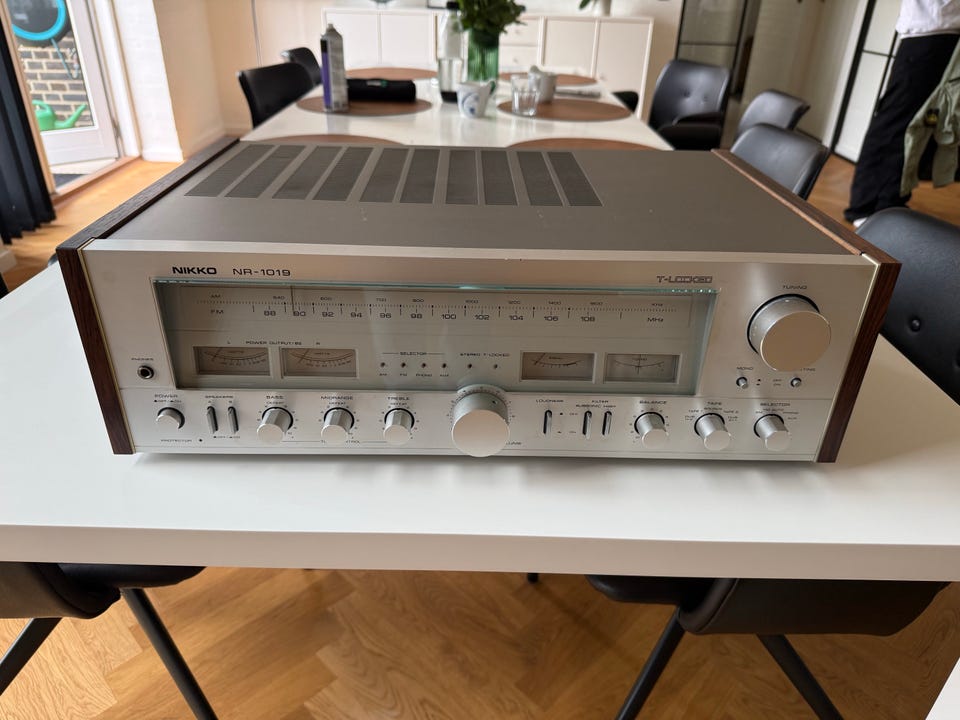

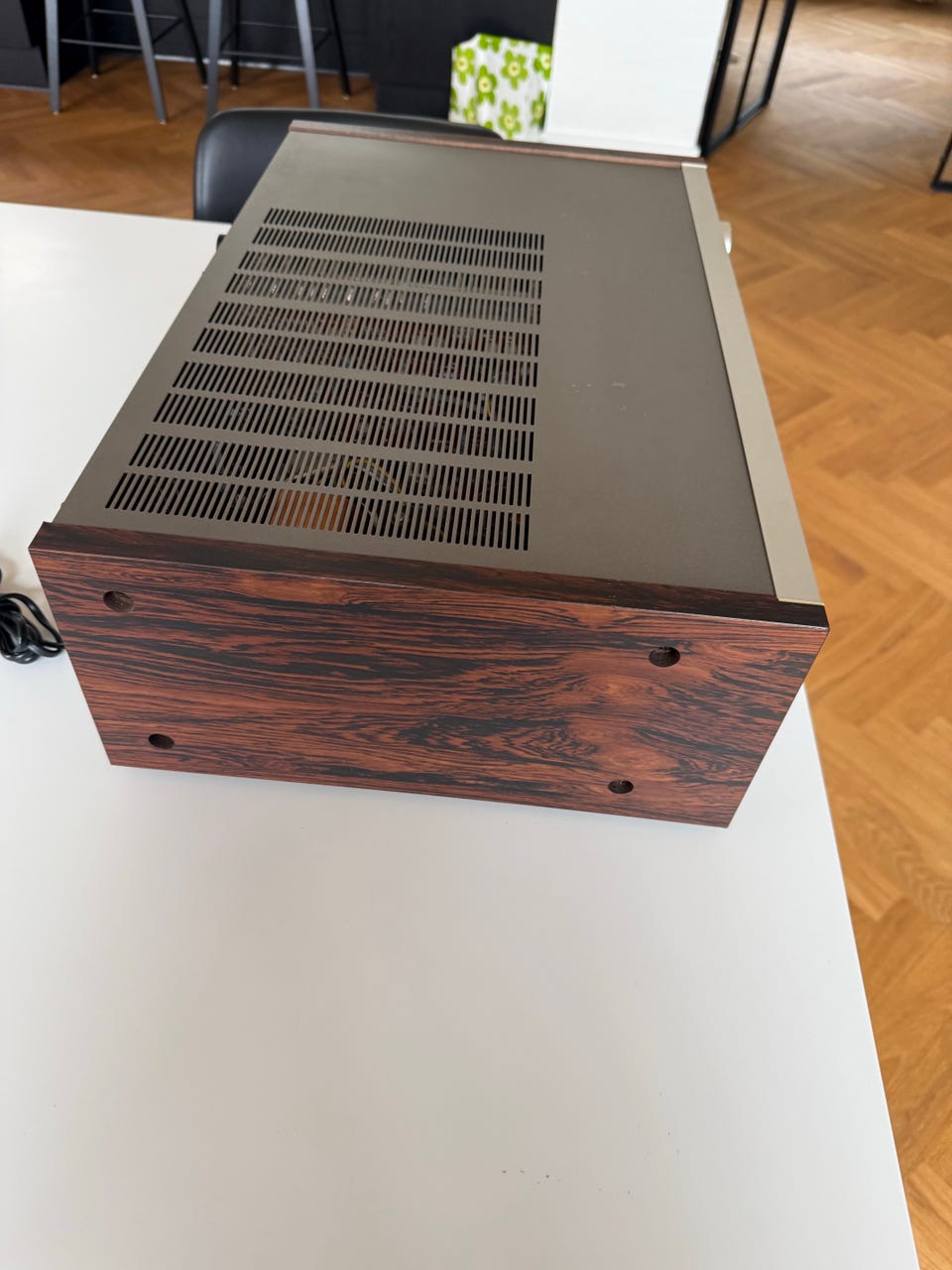

Nikko receiver i fantastisk stand.
Et eksemplar som sjælendt ses.
Den fungere perfekt og har den fedeste lyd.
Data
General
Manufacturer: Nikko
Model: NR-1019
Type: Receiver
Years of manufacture: 1979 - 1981
Made in: Japan
Color: front silver, wooden cabinet
Remote control: no
Power consumption:
Dimensions: 556 x 179 x 380 mm (WxHxD).
Weight: 15,5 kg
Original price approx.: 540 US-$, 1'700 DM

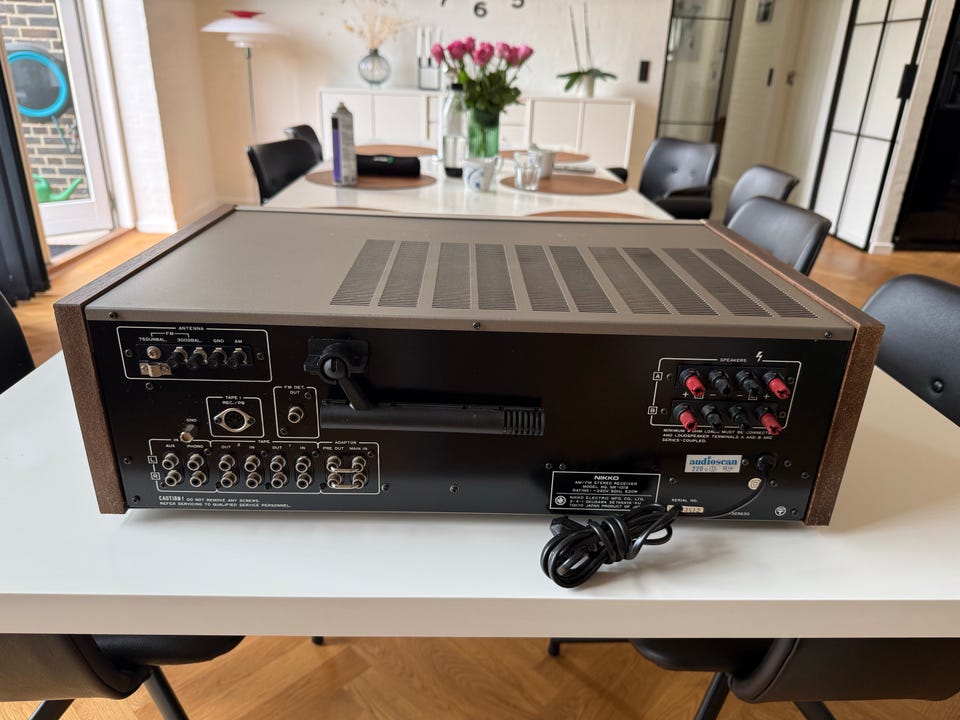

Connections
Number of inputs:
Phono: 2.5 mV, 47 kOhm, max. 200 mV
Aux: 150 mV, 47 kOhm, max. 500 mV
Tape Play 1, 2: 150 mV, 47 kOhm, max. 500 mV
Tape Play DIN: 150 mV, 47 kOhm, max. 500 mV Main In: 1 V, 50 kOhm
Antenna FM / MW: 75, 300 Ohm / 300 Ohm
Number of outputs:
Tape Rec 1, 2: 150 mV, 2.2 kOhm
Tape Rec DIN: 30 mV, 80 kOhm
Pre Out: 1 V, 1 kOhm
FM Det Out:
Headphones (6.3mm jack)
2 pairs of loudspeakers
Technical Data
Amplifier
Continuous power (at distortion):
8 Ohm: 2x 70 W (RMS, 20 - 20'000 Hz, 0.03 %).
4 Ohm:
Dynamic power:
8 Ohm:
4 Ohm:
Total harmonic distortion: < 0.03 %
Attenuation factor: 50 (at 8 Ohm)
Frequency response:
Phono: 30 - 15'000 Hz, ± 0.2 dB
High level: 10 - 40'000 Hz, ± 2 dB
Signal-to-noise ratio:
Phono: 82 dB
High level: 90 dB
Tone control:
Bass at 70 Hz: ± 10 dB
Midrange at 1'000 Hz: ± 6 dB
Treble at 10 kHz: ± 10 dB
Loudness: yes, + 10 dB at 70 Hz, + 6 dB at 10 kHz
Low Filter: yes, - 3 dB at 20 Hz
High Filter: yes, - 3 dB 10 kHz
Mute: yes, -20 dB
Tuner
Reception: FM, MW
Frequencies:
FM: 88 - 109 MHz
MW: 530 - 1600 KHz
Input sensitivity:
FM: 1.4µV
MW: 350µV
Frequency response: 30 - 15'000 Hz
Distortion factor FM (1 kHz):
Mono: < 0.3 %
Stereo: < 0.8
Signal-to-noise ratio:
FM mono: 65 dB
FM stereo: 60 dB
MW: 38 dB
Channel separation: 48 dB (1 kHz)
Selectivity:
FM: 75 dB
MW: 30 dB
Co-wave selection: 1.5 dB
Spurious wave selection: 60 dB
Image frequency attenuation:
FM: 80 dB
MW: 30 dB
IF attenuation:
FM: 80 dB
MW: 25 dB
AM suppression: 50 dB
Special Features
LED power indicator
Tape Dubbing
Separable pre-/power stage
NR adapter connectable
UKW De-Emphasis switchable
