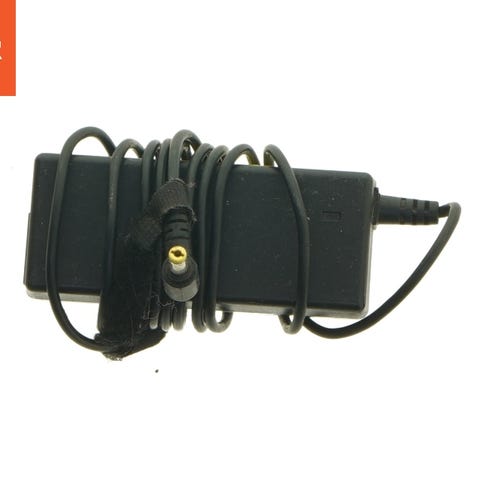

Digi AC Power Supply 12VDC
Til salg374 kr.
Beskrivelse
This AC power supply provides a stable 12 VDC output from universal AC inputs, featuring a 2.1 mm locking barrel plug and including four interchangeable international plug types for global compatibility.
The AC Power Supply is a versatile and essential accessory designed to provide reliable 12 VDC power from a wide range of AC inputs. Engineered for global compatibility, it includes four interchangeable input connectors (US, EU, UK, AU), making it an ideal solution for international deployments and diverse power environments.
This power supply boasts a broad input voltage range of 100 VAC to 240 VAC and supports both 50 Hz and 60 Hz input frequencies, ensuring stable operation worldwide. Its robust design handles in-rush currents up to 60 A at cold start (230 VAC) and maintains a low leakage current of less than 0.3 mA at 240 VAC, highlighting its safety and efficiency.
Delivering a consistent 12 VDC output with a load current of 1.5 A, this power supply is capable of providing up to 18W of maximum output power. It features a secure 9.5 x 5.5 x 2.1 mm locking barrel plug, ensuring a stable and reliable connection to compatible devices, minimizing accidental disconnections.
Designed for practical use, the power supply has compact dimensions of 84 x 56 x 37.9 mm, allowing for easy integration into various setups without occupying excessive space. A generous 1.83-meter (6 ft) cord length provides flexibility in device placement, enhancing convenience and accessibility.
Built to perform in demanding conditions, the power supply operates reliably across a standard temperature range of 0 °C to 40 °C (32 °F to 104 °F) and can be stored in temperatures from -10 °C to 70 °C (14 °F to 158 °F). It holds multiple key certifications including UL, cUL, CE, and RoHS, affirming its compliance with international safety and environmental standards.
Rated input voltage rating: 100 VAC to 240 VAC
Input frequency: 50 Hz to 60 Hz
Rated input current: < 0.6 A RMS MAX
Max. in-rush current: 30 A max. at cold start 120 VAC, 60 A max. at cold start 230 VAC
Input Plug Type: Includes four input connectors: NA, EU, UK, and AU
Leakage current: < 0.3 mA at 240 VAC
Output Voltage: 12 VDC
Load current: 1.5 A
Output Plug: 9.5 x 5.5 x 2.1 mm locking barrel plug
Max. output power: 18W max.
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -10 °C to 70 °C (14 °F to 158 °F)
Size: 84 x 56 x 37.9 mm (3.31 x 2.2 x 1.49 in)
Cord Length: 1.83 m (6 ft)
Certifications: UL, cUL, CE, RoHS
