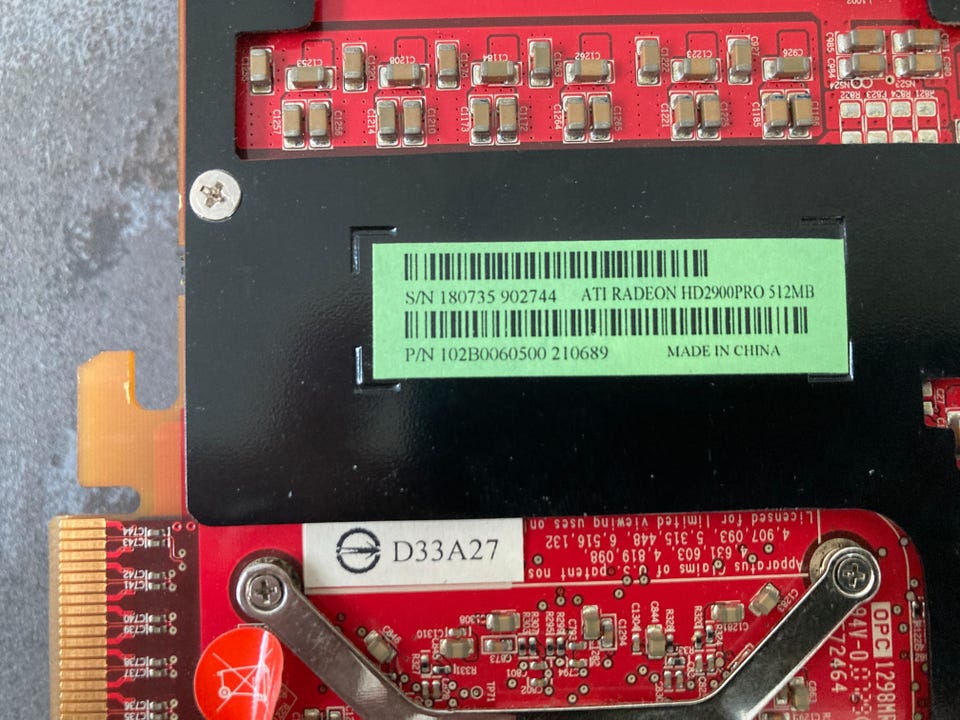

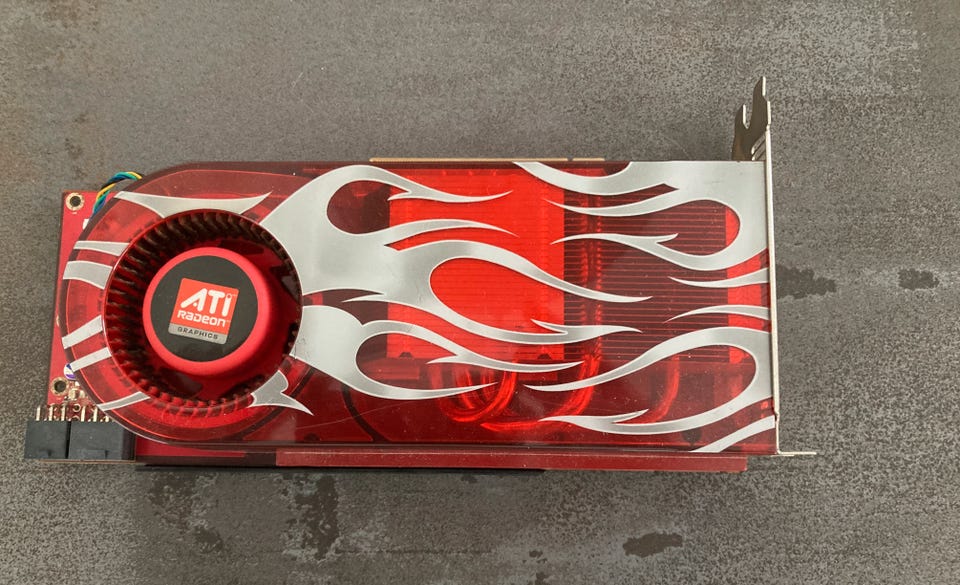

ATI Radeon HD 2900 PRO (Retro kort)
Varebeskrivelse
Stand: Brugt - men i god stand
Type: Grafikkort
Har haft dette liggende i noget til og får det ikke brugt.
Her er lidt om kortet. Dette kort har dog 8-pin og 6-pin til power men er ikke et 2900 XT.
The Radeon HD 2900 PRO was a graphics card by ATI, launched on December 12th, 2007. Built on the 80 nm process, and based on the R600 graphics processor, in its R600 PRO variant, the card supports DirectX 10.0. Since Radeon HD 2900 PRO does not support DirectX 11 or DirectX 12, it might not be able to run all the latest games. The R600 graphics processor is a large chip with a die area of 420 mm² and 720 million transistors. It features 320 shading units, 16 texture mapping units, and 16 ROPs. ATI has paired 512 MB GDDR3 memory with the Radeon HD 2900 PRO, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 600 MHz, memory is running at 800 MHz.
Being a dual-slot card, the ATI Radeon HD 2900 PRO . Display outputs include: 2x DVI, 1x S-Video. Radeon HD 2900 PRO is connected to the rest of the system using a PCI-Express 1.0 x16 interface. The card measures 241 mm in length, and features a dual-slot cooling solution.
Graphics Processor
GPU Name
R600
GPU Variant
R600 PRO
(215RGMDKA13FG)
Architecture
TeraScale
Foundry
TSMC
Process Size
80 nm
Transistors
720 million
Density
1.7M / mm²
Die Size
420 mm²
Graphics Card
Release Date
Dec 12th, 2007
Generation
Radeon R600
(HD 2900)
Predecessor
Radeon R500 PCIe
Successor
Radeon R700
Production
End-of-life
Bus Interface
PCIe 1.0 x16
GPU Clock
600 MHz
Memory Clock
800 MHz
1600 Mbps effective
Memory
Memory Size
512 MB
Memory Type
GDDR3
Memory Bus
256 bit
Bandwidth
51.20 GB/s
