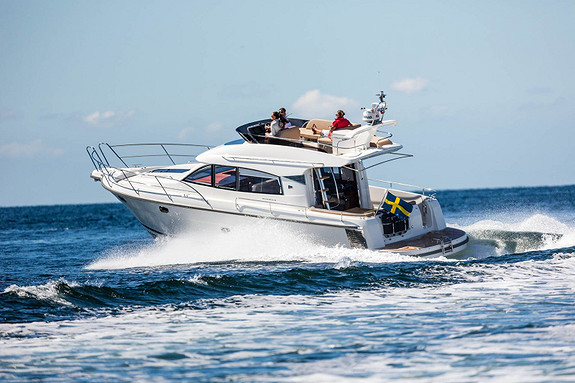

Integrity Trawlers 470 CE-Plus

Integrity, Motorbåde, årg. 2023, fod 48, hk 600, skrog: Glasfiber, bredde 4.54, dybde 1.20, hjemhavn: Østjylland, Vi har nu fornøjelsen af at udbyde denne fabriksnye Integrity Trawler '470CEPlus'! Prisen er inklusiv moms samt med levering til Danmark. Integrity Trawlers er delvis specialbygget efter købers ønsker. Bemærk at denne Trawler leveres med én maskine hvilket giver fantastisk brændstoføkonomi!

Integrity Trawlers fås i størrelser fra 34 - 80 fod. Der er 18 forskellige modeller og designs, alle bygget i glasfiber. Integrity Trawlers er kendetegnet ved særdeles lavt brændstofforbrug og god sødygtighed. Alle modeller er bygget i kategori A eller B til det europæiske marked med CE-certifikat. Integrity Trawlers er et perfekt valg til langturs blue ocean eller kanalsejlads.

Integrity-Yachts er en pålidelig og meget erfaren virksomhed med mange års erfaring i produktion af Trawlers siden 1981. Værftets fabrik er beliggende i Guangzhou i Kina, kun to timer fra Hong Kong.
Alle modeller kan delvis bygges efter specielle ønsker ift. stil og specifikationer, så du kan indrette din egen Integrity Trawler (semi specialbygget).

Der er cirka 1 års leveringstid fra ordre til levering i Danmark.

Se dette link for en videopresentation af skibet:

https://www.youtube.com/watch?v=aPNL7B8VMA0

Se dette link for yderligere information:

https://www.integrityboats.com.au/integrity-range/the-new-ce-plus-range/470ce-plus/



Kontakt Yachtbasen for yderligere information.
Nedenfor følger komplet specification for 470CEPlus




Specifications New 470 CEPlus - standard equipment

Hull Integrity Planing Hull
Length Overall (inc. 1.2m swim platform) 14.5m (47’ 6”)
Beam 4.54m (14’ 8”)
Maximum Draft (approx.) 1.2m (3’9”)
Sleeping Capacity 6 persons
Fuel Capacity approx. 1700 litres
Water Capacity approx. 950 litres
Holding Tank Capacity approx. 200 litres
Engine Cummins QSC8.3 600HP
Cruise Speed (approx.) 16 knots
Top Speed - WOT (approx.) 22 knots

CONSTRUCTION
Moulded GRP hull white gelcoat
Hull top sides reinforced for light weight
Independent compartments and stringer system
Solid hand laid fiberglass hull bottom with chines to waterline
Vinyl ester resin used in first two outer layers of hull
Water tight collision bulkhead forward
Water tight light weight cored bulkheads/flooring

MECHANICAL AND ELECTRICAL
Acoustic and thermal insulation throughout engine room
Non-skid flooring in engine room
Freshwater cooling on engine
Engine Alarm system
Racor fuel filter
Anti-vibration engine mounts
Fibreglass Exhaust system for engine (Underwater outlet with bypass)
Fibreglass Aqualift exhaust for generator
Ventilation System includes blowers for engine room
Stainless steel propeller shaft
Dripless PSS shaft seal
Steering stock
Rudder locking pin
Bronze propeller
Seawater strainers for engine, genset & aircon
Bow Thruster 12V 6HP
Stern Thruster 12V 6HP
Stainless steel rudder
All hoses double hose clamped below waterline
Ball valves on all seacocks and skin fittings
Hot water heater 40 Litres
Bilge pumps auto with manual override and high water alarms x 3
Manual bilge pump system
Automatic sump pump fitted to all showers
Fresh water pressure pump high volume 12V
Seawater pump for foredeck 12V
Sanitation system with macerator pump out and deck fitting for dock side
pump out
Generator 7.5kw
Battery charger/inverter 3kva
House Batteries- 400Ahr - DC, maintenance free
Engine Batteries -110Ahr CD, Genset Battery 110Ahr
All batteries fitted in GRP battery boxes
Battery paralleling system for emergency engine start
LED lighting throughout 12V
Engine room lighting DC
Navigation lights LED internationally compliant
All AC power outlets RCD protected
Bonding system to hull fittings, zinc anode incl. isolator
Tinned electrical wiring. Where applicable coded and labelled
Electrical panel DC with circuit breakers.
Shore power lead 15Amp
Fusion Stereo and speakers
Trim tabs with controls at helm

DECK
Anchor 20kg (45lbs) & 60 mtrs of chain
Anchor locker accessed by 2 hatches on deck
Anchor safety strap
Bow rail welded stainle...
